F25DMH (2015)
ELECTRICAL 4

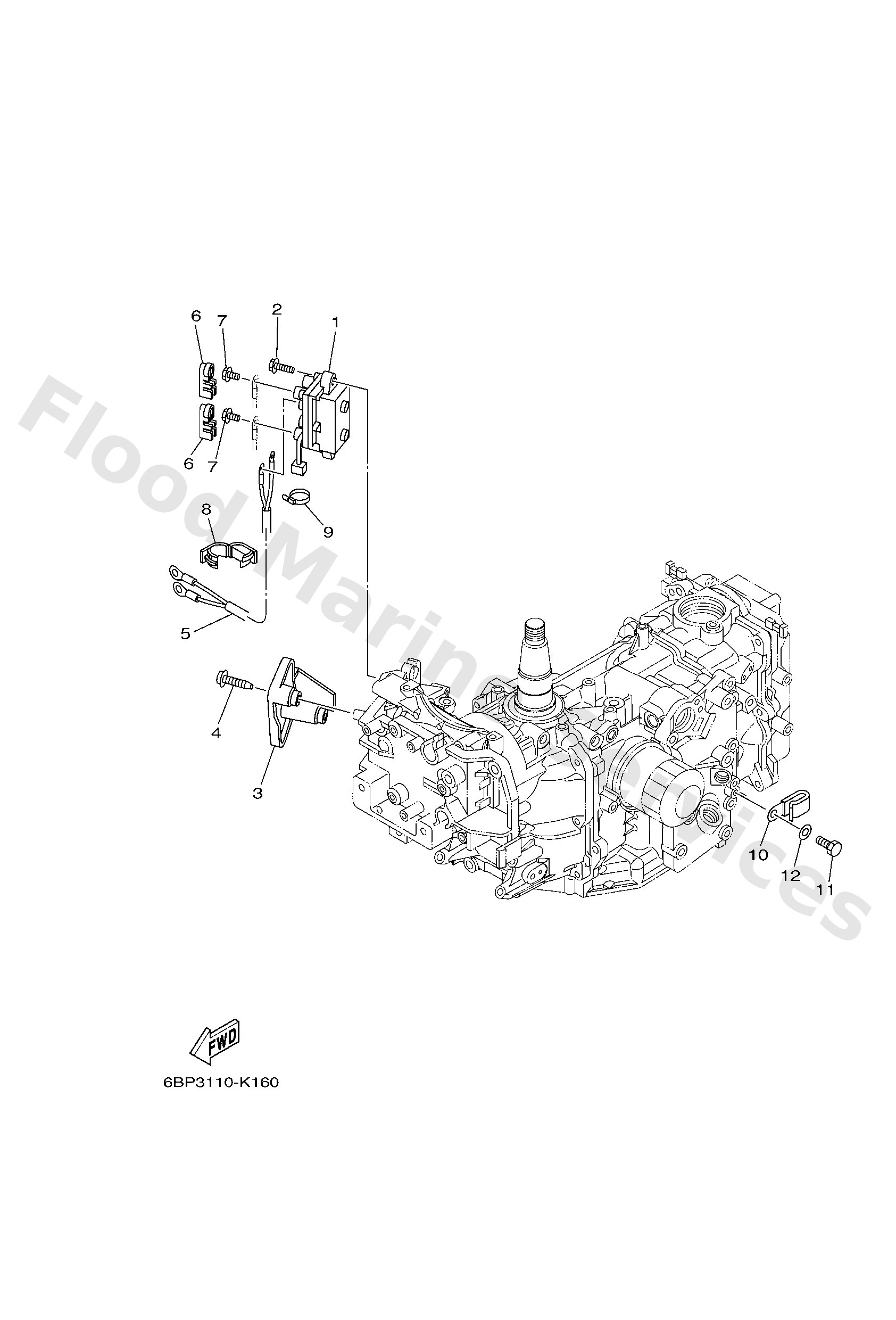

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
63P8195000
Relay assembly
Loading…
↗
2
9757506520
Bolt, hexagon w/w deep recess
Loading…
↗
3
6BL8194200
Cover
Loading…
↗
4
9016705009
Screw, tapping
Loading…
↗
5
6BL8194900
Wire, lead
Loading…
↗
6
6P28183X00
Cap, terminal
Loading…
↗
7
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
8
9046418004
Clamp
Loading…
↗
9
9046511M10
Clamp
Loading…
↗
10
9046506M90
Clamp
Loading…
↗
11
9709506016
Bolt, hexagon deep recess
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
