F300XCB (2025)
ELECTRICAL 4

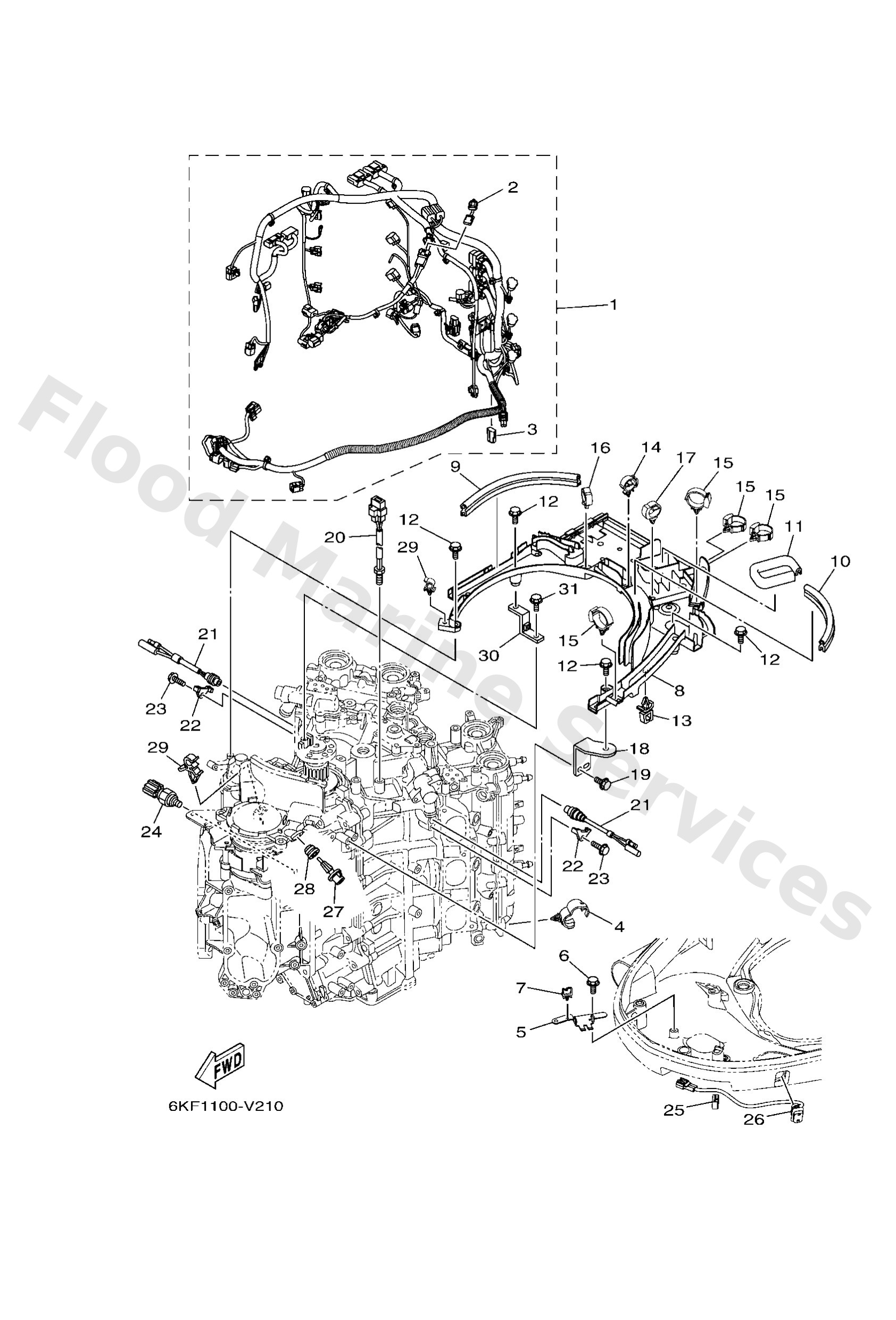

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6KF8259002
Wire harness assembly
Loading…
↗
2
6CE8198001
Diode assembly
Loading…
↗
3
68V8258210
Cap 1 (2p)
Loading…
↗
4
9046420181
Clamp(4ap)
Loading…
↗
5
6KA8259400
Clamp
Loading…
↗
6
95D9506012
Bolt, flange deep recess
Loading…
↗
7
9046408004
Clamp
Loading…
↗
8
6CB8258901
Protecter, wire harness
Loading…
↗
9
6BG4261700
Damper, form
Loading…
↗
10
6CB4261700
Damper, form
Loading…
↗
11
6CB4262900
Seal
Loading…
↗
12
95D9506020
Bolt, flange deep recess
Loading…
↗
13
9046411121
Clamp(4gy)
Loading…
↗
14
9046418246
Clamp(4tr)
Loading…
↗
15
9046412183
Clamp(jn2)
Loading…
↗
18
6CB8238800
Plate
Loading…
↗
19
95D9506016
Bolt, flange deep recess
Loading…
↗
20
6CB8579000
Thermosensor assembly
Loading…
↗
21
6P28256001
Thermo switch assembly
Loading…
↗
22
6E98258800
Plate
Loading…
↗
24
6AW8365101
Sender, oil pressure
Loading…
↗
25
9046416001
Clamp
Loading…
↗
26
6GR8256300
Trim & tilt switch assembly
Loading…
↗
27
63P8588600
Sensor, air temperature
Loading…
↗
28
6CE1443500
Grommet
Loading…
↗
29
9046409129
Clamp(3ld)
Loading…
↗
30
6CB8195200
Holder, relay
Loading…
↗
