F30AET (2005)
ELECTRICAL 4

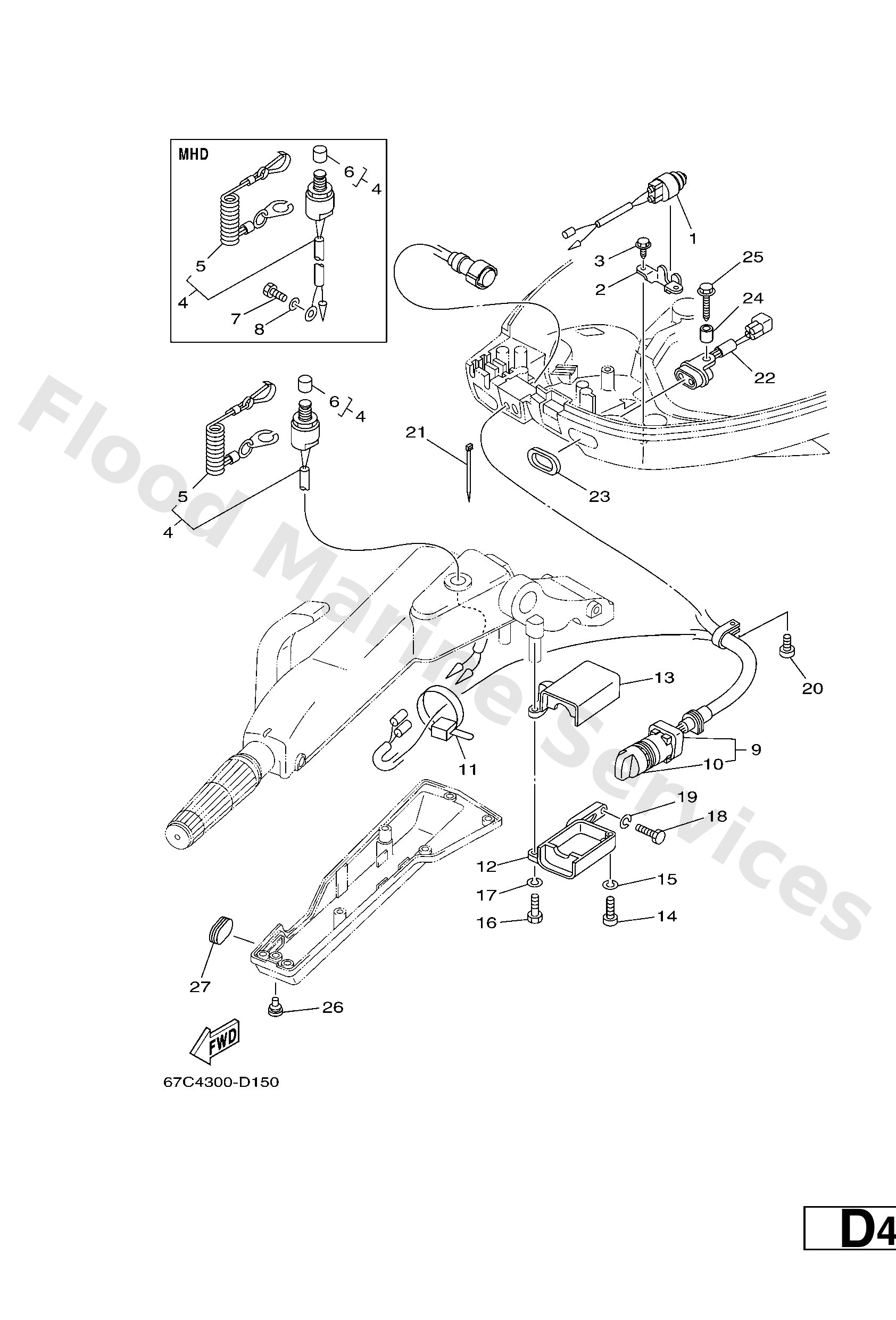

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6F58254000
Neutral switch assembly
Loading…
↗
2
6J88255400
Stay, neutral switch
Loading…
↗
3
9010906M86
Bolt
Loading…
↗
4
69W8257500
Engine stop switch assembly
Loading…
↗
4
6K58257503
Engine stop switch assembly
Loading…
↗
5
6828255600
Lanyard, stop switch
Loading…
↗
6
6898257Y00
Cap
Loading…
↗
7
9709506012
Bolt(gh1)
Loading…
↗
8
9299506600
Washer, plain (646)
Loading…
↗
9
69W8251000
Main switch assembly
Loading…
↗
10
6768257700
Cap, key
Loading…
↗
11
9046513M11
Clamp (6e5)
Loading…
↗
12
63D8252F014D
Cover, main switch 2
Loading…
↗
13
63D8252E014D
Cover, main switch 1
Loading…
↗
14
9788506025
Screw, pan head(6b0)
Loading…
↗
15
9299506100
Washer(6a1)
Loading…
↗
16
9709506025
Bolt
Loading…
↗
18
9709506020
Bolt(7u8)
Loading…
↗
20
9788506012
Screw, pan head(62j)
Loading…
↗
21
9046513M36
Clamp(6h4)
Loading…
↗
22
62Y8430100
Pilot light assembly 1
Loading…
↗
23
6H48358900
Gasket
Loading…
↗
24
9038706M87
Collar
Loading…
↗
25
9010906MA2
Bolt
Loading…
↗
26
9048006M19
Grommet (6e3)
Loading…
↗
27
67C4272600
Grommet
Loading…
↗
