F350NSA (2025)
ELECTRICAL 4

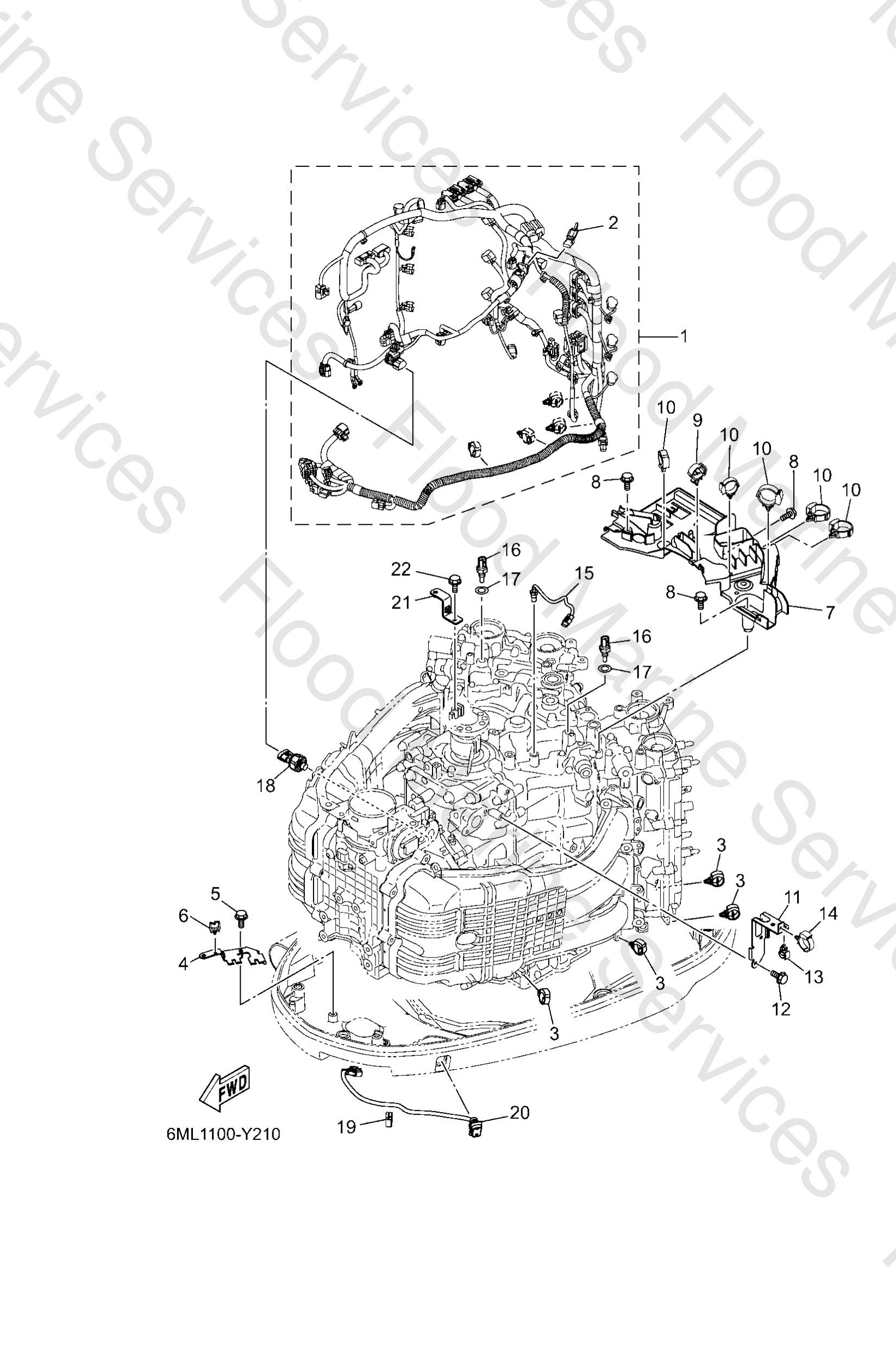

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6ML8259000
Wire harness assembly
Loading…
↗
2
6CE8198001
Diode assembly
Loading…
↗
3
9046420181
Clamp(4ap)
Loading…
↗
4
6ML8259400
Clamp
Loading…
↗
5
95D9506012
Bolt, flange deep recess
Loading…
↗
6
9046408004
Clamp
Loading…
↗
7
6ML8258900
Protecter, wire harness
Loading…
↗
8
95D9506020
Bolt, flange deep recess
Loading…
↗
9
9046418246
Clamp(4tr)
Loading…
↗
10
9046412183
Clamp(jn2)
Loading…
↗
11
6ML8238800
Plate
Loading…
↗
12
95D9506016
Bolt, flange deep recess
Loading…
↗
13
9046413249
Clamp
Loading…
↗
15
6CB8579000
Thermosensor assembly
Loading…
↗
16
6ML8579000
Thermosensor assembly
Loading…
↗
17
9043010004
Gasket
Loading…
↗
18
6AW8365101
Sender, oil pressure
Loading…
↗
19
9046416001
Clamp
Loading…
↗
20
6GR8256300
Trim & tilt switch assembly
Loading…
↗
21
6CB8195200
Holder, relay
Loading…
↗
