F40DET (2012)
ELECTRICAL 4

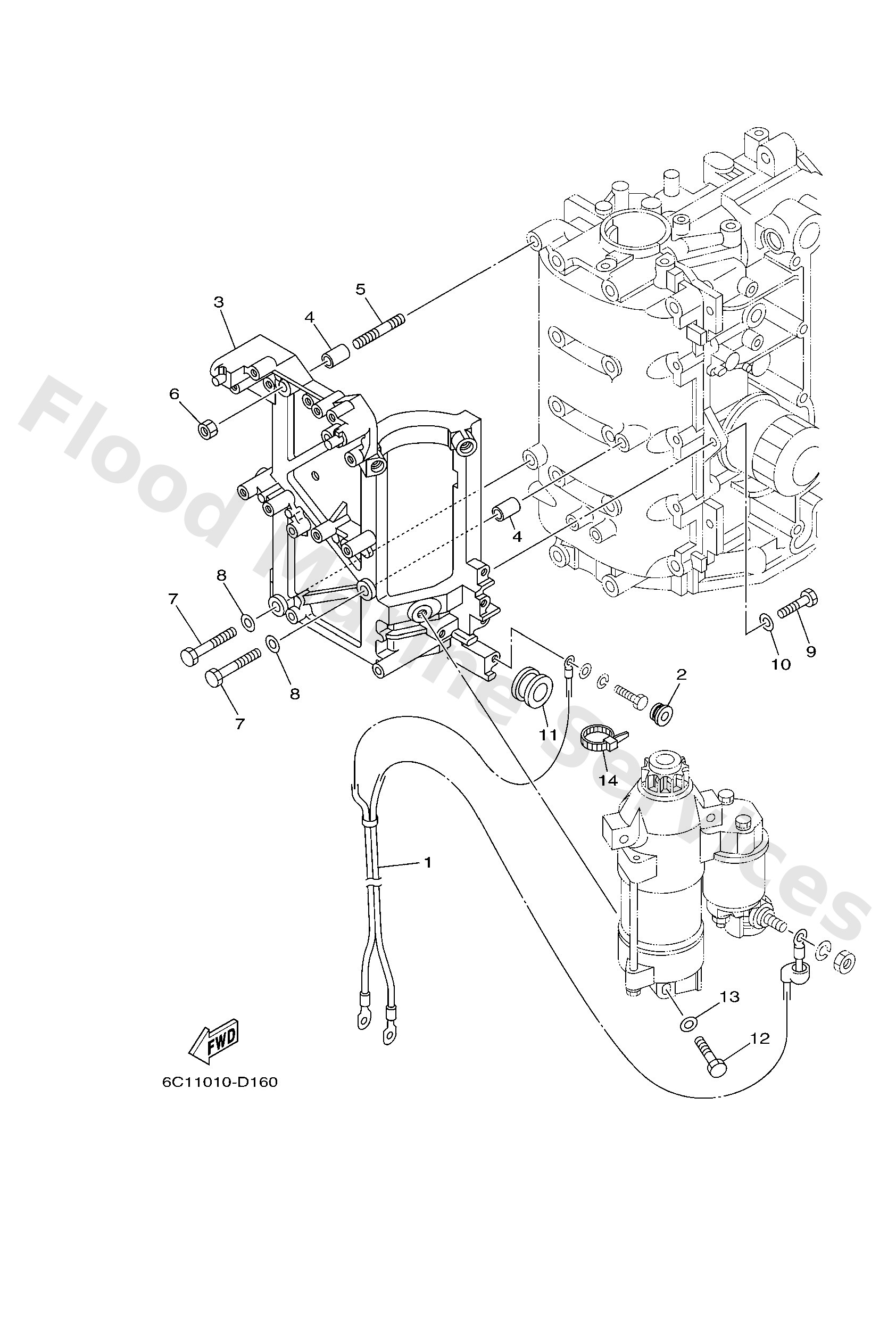

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6C58210500
Battery cable
Loading…
↗
2
9048012072
Grommet(53y)
Loading…
↗
3
6C5818220094
Bracket, starting motor
Loading…
↗
4
9959010114
Pin, dowel
Loading…
↗
5
9568008330
Bolt, stud
Loading…
↗
6
9538008600
Nut (661)
Loading…
↗
7
9709508035
Bolt(70w)
Loading…
↗
8
9299508600
Washer, plain (663)
Loading…
↗
9
9709508025
Bolt (62g)
Loading…
↗
11
9048024003
Grommet
Loading…
↗
12
9701308045
Bolt
Loading…
↗
13
9290308600
Washer, plain (663)
Loading…
↗
14
9046513M18
Clamp
Loading…
↗
