F40FED (2023)
ELECTRICAL 4

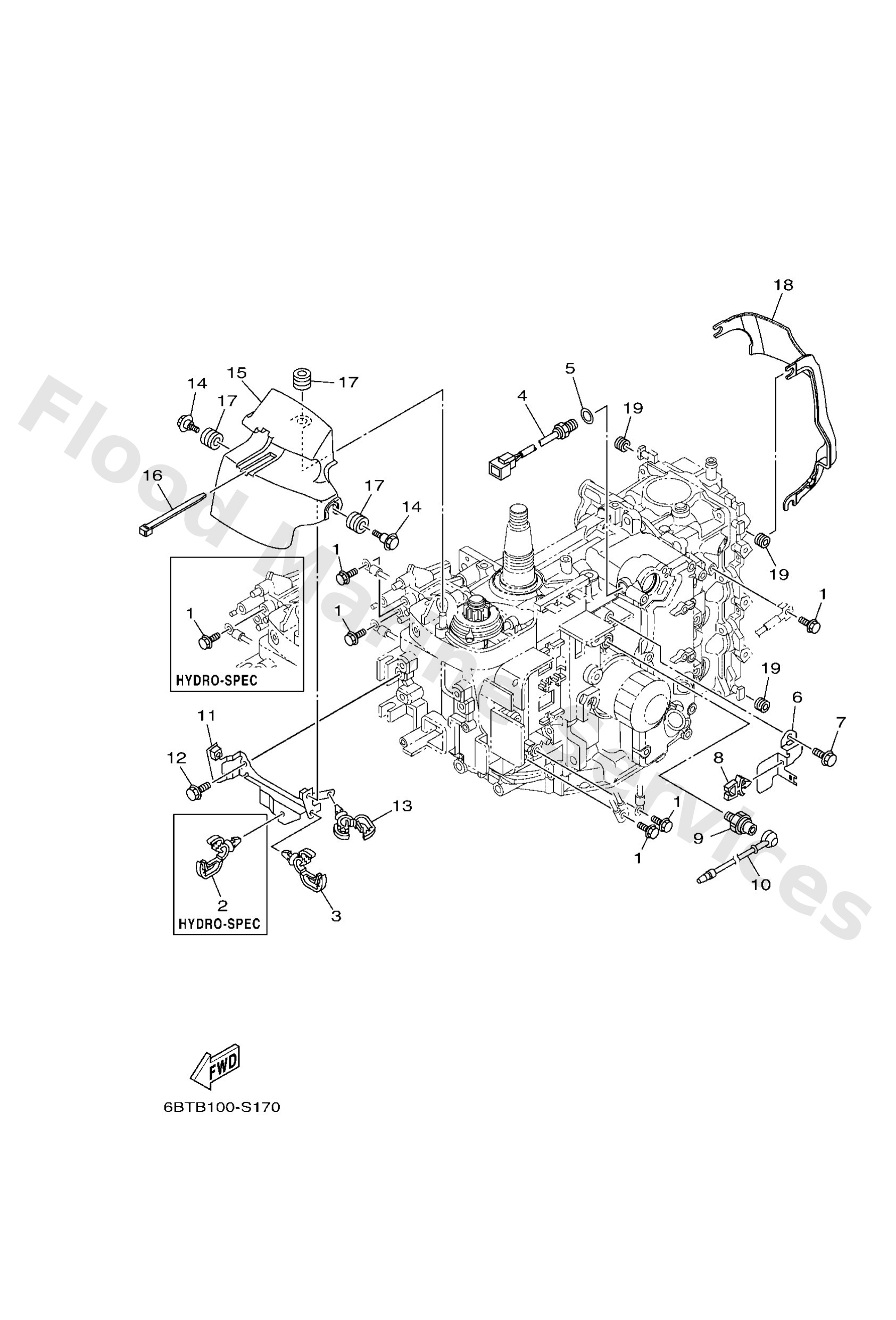

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
2
9046413249
Clamp
Loading…
↗
4
6CJ8579000
Thermosensor assembly
Loading…
↗
5
9043014115
Gasket (663)
Loading…
↗
6
6BG8238800
Plate
Loading…
↗
8
9046406001
Clamp
Loading…
↗
9
64J8250400
Oil pressure switch assembly
Loading…
↗
10
68V8131501
Lead wire assembly
Loading…
↗
11
6BG8257V00
Plate, connector
Loading…
↗
13
9046418246
Clamp(4tr)
Loading…
↗
14
9010906MA1
Bolt
Loading…
↗
15
6BG8194201
Cover
Loading…
↗
16
9046513M24
Band, switch cord
Loading…
↗
17
9048012314
Grommet(3aa)
Loading…
↗
18
6BG1119201
Cover, cylinder head 2
Loading…
↗
