F40LET (2025)
ELECTRICAL 4

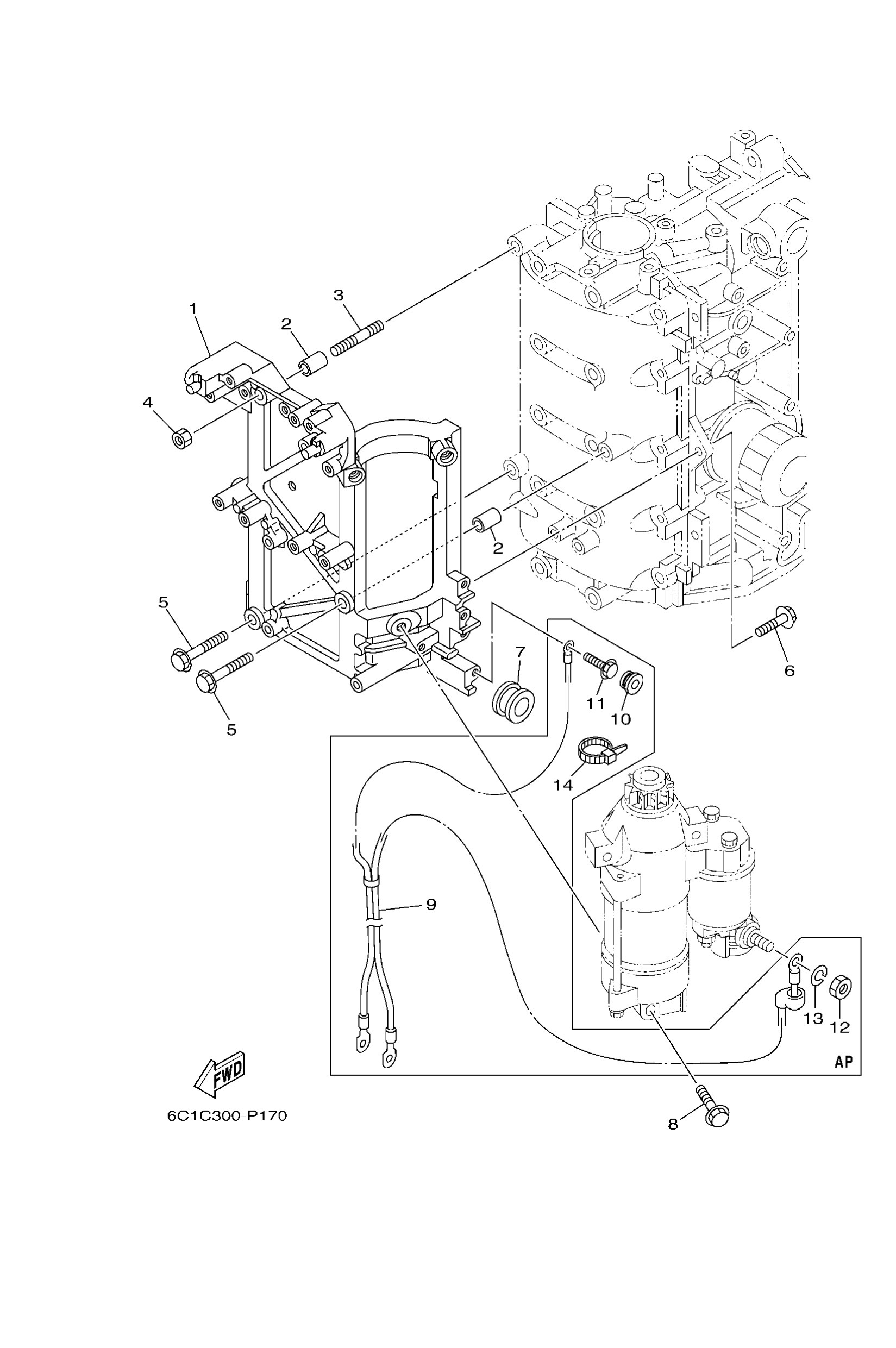

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6C58182200
Bracket, starting motor
Loading…
↗
2
9953010114
Pin, dowel(3vd)
Loading…
↗
3
9568008330
Bolt, stud
Loading…
↗
4
9538008600
Nut (661)
Loading…
↗
5
97E9508535
Bolt, hexagon w/w deep recess
Loading…
↗
6
97E9508525
Bolt, hexagon w/w deep recess
Loading…
↗
7
9048024003
Grommet
Loading…
↗
8
9751308545
Bolt, with washer
Loading…
↗
9
6C58210502
AP
Battery cable
Loading…
↗
10
9048012072
AP
Grommet(53y)
Loading…
↗
11
97E9506620
AP
Bolt, hexagon w/w deep recess
Loading…
↗
12
9533308600
AP
Nut(6l2)
Loading…
↗
13
9290308100
AP
Ybs67-8 washer, spring
Loading…
↗
14
9046513M18
AP
Clamp
Loading…
↗
