F70AET (2012)
ELECTRICAL 4

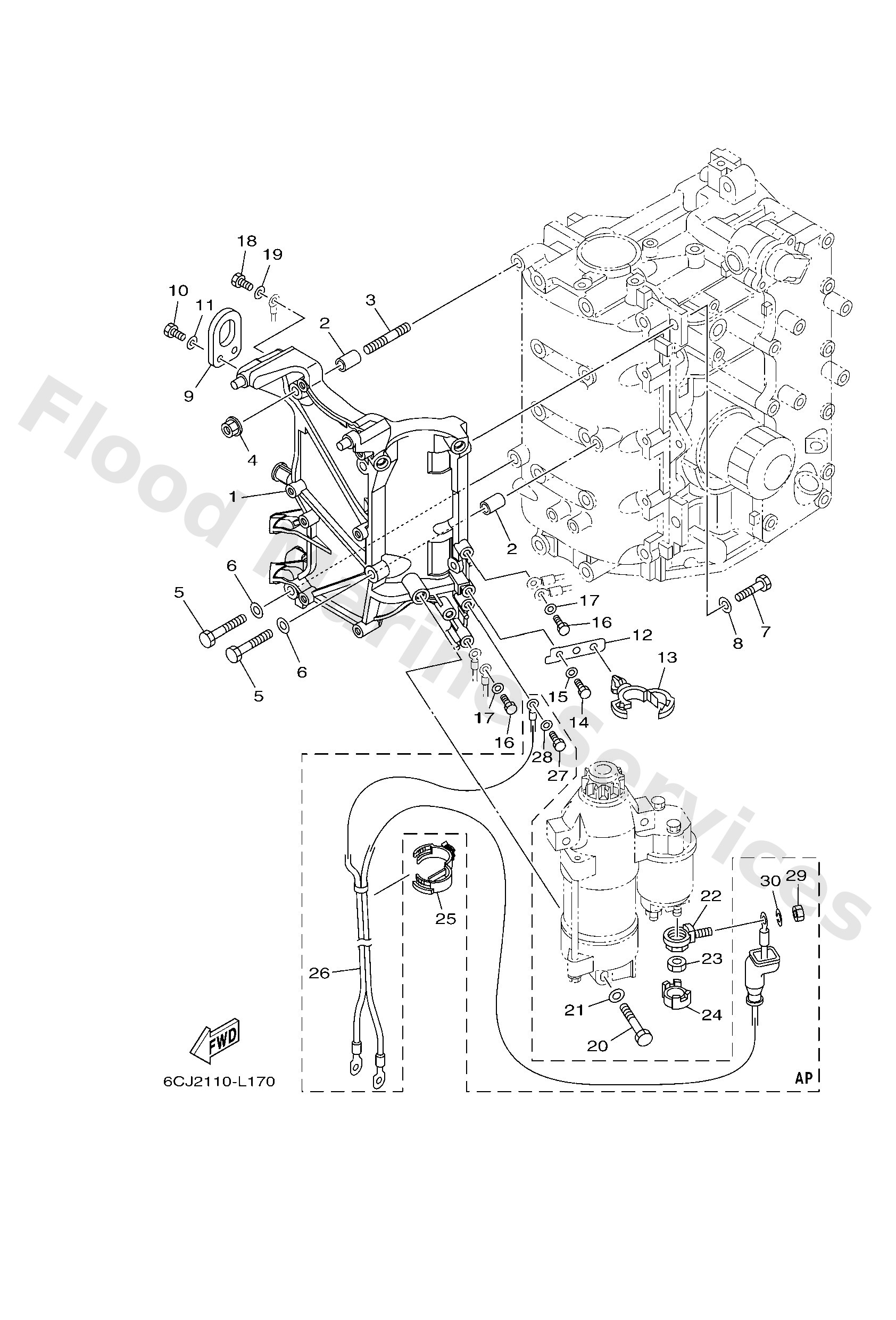

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6CJ818220094
Bracket, starting motor
Loading…
↗
2
9959010114
Pin, dowel
Loading…
↗
3
9568008330
Bolt, stud
Loading…
↗
4
9017908M34
Nut
Loading…
↗
5
9709508035
Bolt(70w)
Loading…
↗
6
9299508600
Washer, plain (663)
Loading…
↗
7
9709508025
Bolt (62g)
Loading…
↗
9
62Y1111900
Hanger, engine
Loading…
↗
10
9709506020
Bolt(7u8)
Loading…
↗
28
9299506600
AP
Washer, plain (646)
Loading…
↗
12
6CJ8552500
Plate
Loading…
↗
13
9046420181
Clamp(4ap)
Loading…
↗
27
9709506016
AP
Bolt, hexagon deep recess
Loading…
↗
20
9701308045
Bolt
Loading…
↗
21
9290308600
Washer, plain (663)
Loading…
↗
22
60V8192500
Terminal
Loading…
↗
23
9017908003
Nut
Loading…
↗
24
68F8258200
Cover, wire harness
Loading…
↗
25
9046430003
Clamp
Loading…
↗
26
6C582105U0
AP
Battery cable
Loading…
↗
29
9533308600
AP
Nut(6l2)
Loading…
↗
30
9290308100
AP
Ybs67-8 washer, spring
Loading…
↗
