F70AET (2016)
ELECTRICAL 4

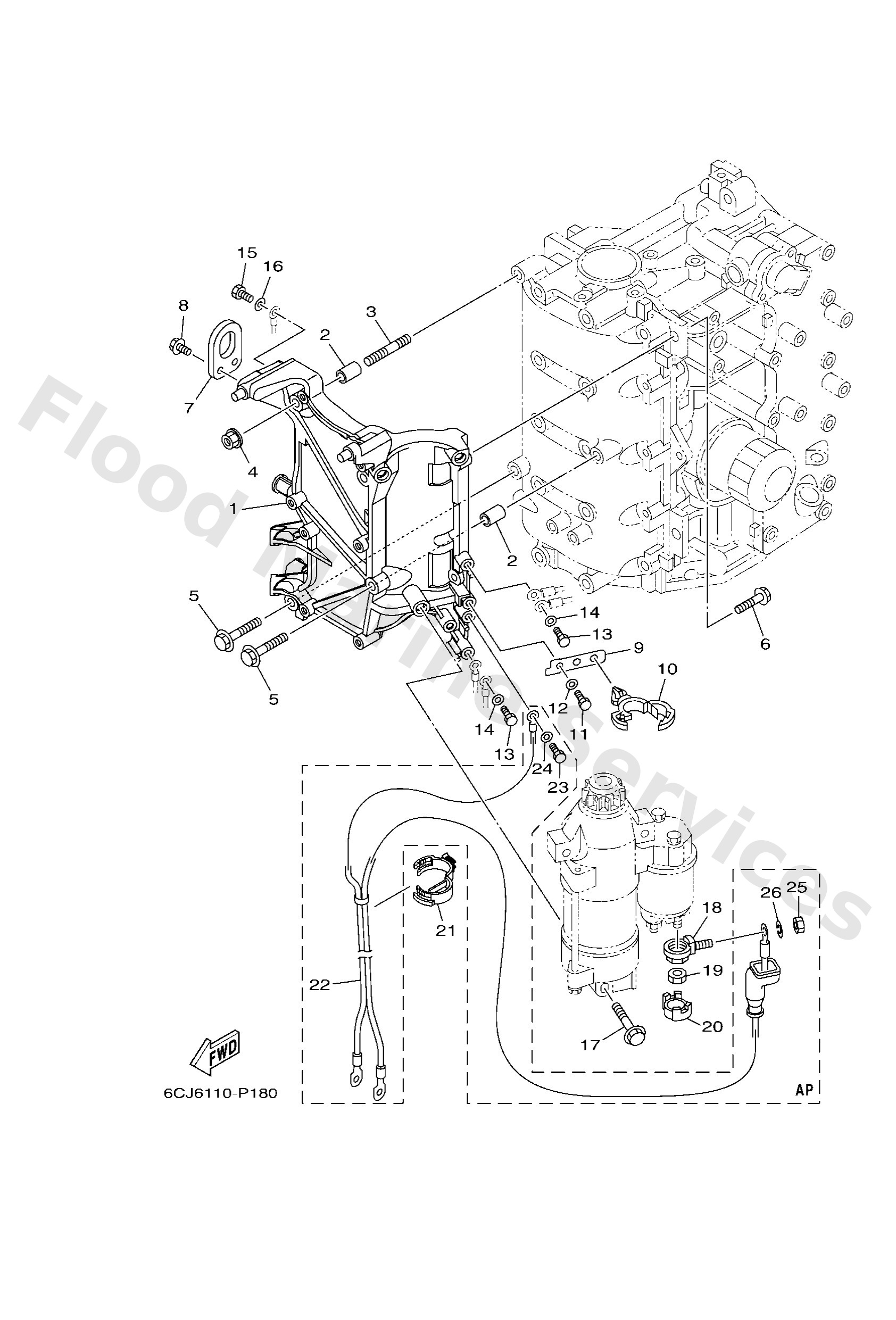

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6CJ8182200
Bracket, starting motor
Loading…
↗
2
9953010114
Pin, dowel(3vd)
Loading…
↗
3
9568008330
Bolt, stud
Loading…
↗
4
9017908M34
Nut
Loading…
↗
5
9759508535
Bolt, hexagon w/w deep recess
Loading…
↗
6
9759508525
Bolt, hexagon deep recess
Loading…
↗
7
62Y1111900
Hanger, engine
Loading…
↗
8
9759506520
Bolt(7u8)
Loading…
↗
9
6CJ8552500
Plate
Loading…
↗
10
9046420181
Clamp(4ap)
Loading…
↗
23
9709506016
AP
Bolt, hexagon deep recess
Loading…
↗
24
9299506600
AP
Washer, plain (646)
Loading…
↗
17
9751308545
Bolt, with washer
Loading…
↗
18
60V8192500
Terminal
Loading…
↗
19
9017908003
Nut
Loading…
↗
20
68F8258200
Cover, wire harness
Loading…
↗
21
9046430003
Clamp
Loading…
↗
22
6C582105U1
AP
Battery cable
Loading…
↗
25
9533308600
AP
Nut(6l2)
Loading…
↗
26
9290308100
AP
Ybs67-8 washer, spring
Loading…
↗
