F70AET (2020)
ELECTRICAL 4

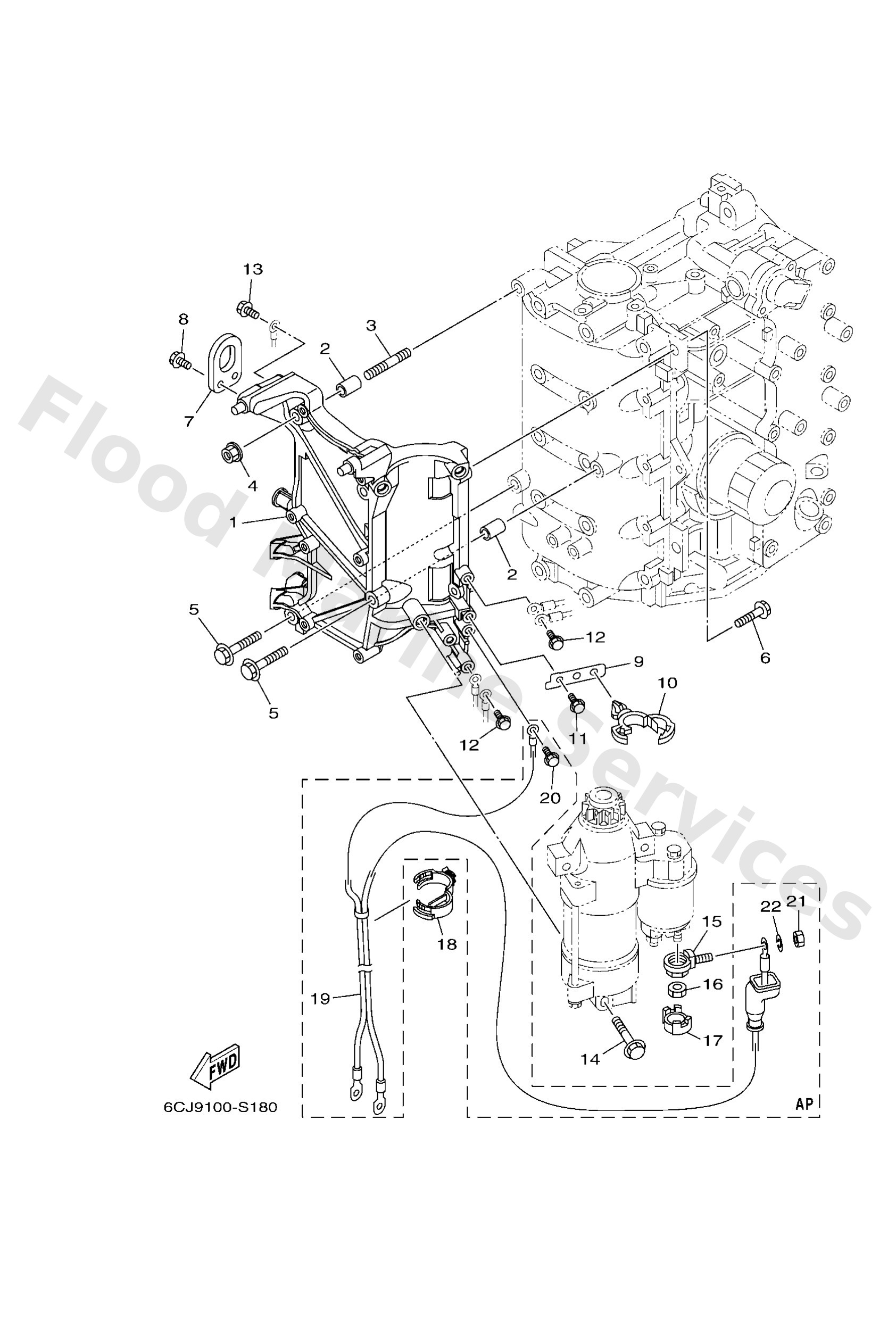

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6CJ8182200
Bracket, starting motor
Loading…
↗
2
9953010114
Pin, dowel(3vd)
Loading…
↗
3
9568008330
Bolt, stud
Loading…
↗
4
9017908M34
Nut
Loading…
↗
5
97E9508535
Bolt, hexagon w/w deep recess
Loading…
↗
6
97E9508525
Bolt, hexagon w/w deep recess
Loading…
↗
7
62Y1111900
Hanger, engine
Loading…
↗
8
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
9
6CJ8552500
Plate
Loading…
↗
10
9046420181
Clamp(4ap)
Loading…
↗
20
97E9506516
AP
Bolt, hexagon w/w deep recess
Loading…
↗
14
9751308545
Bolt, with washer
Loading…
↗
15
60V8192500
Terminal
Loading…
↗
16
9017908003
Nut
Loading…
↗
17
68F8258200
Cover, wire harness
Loading…
↗
18
9046430003
Clamp
Loading…
↗
19
6C582105U1
AP
Battery cable
Loading…
↗
21
9533308600
AP
Nut(6l2)
Loading…
↗
22
9290308100
AP
Ybs67-8 washer, spring
Loading…
↗
