F80BET (2012)
ELECTRICAL 4

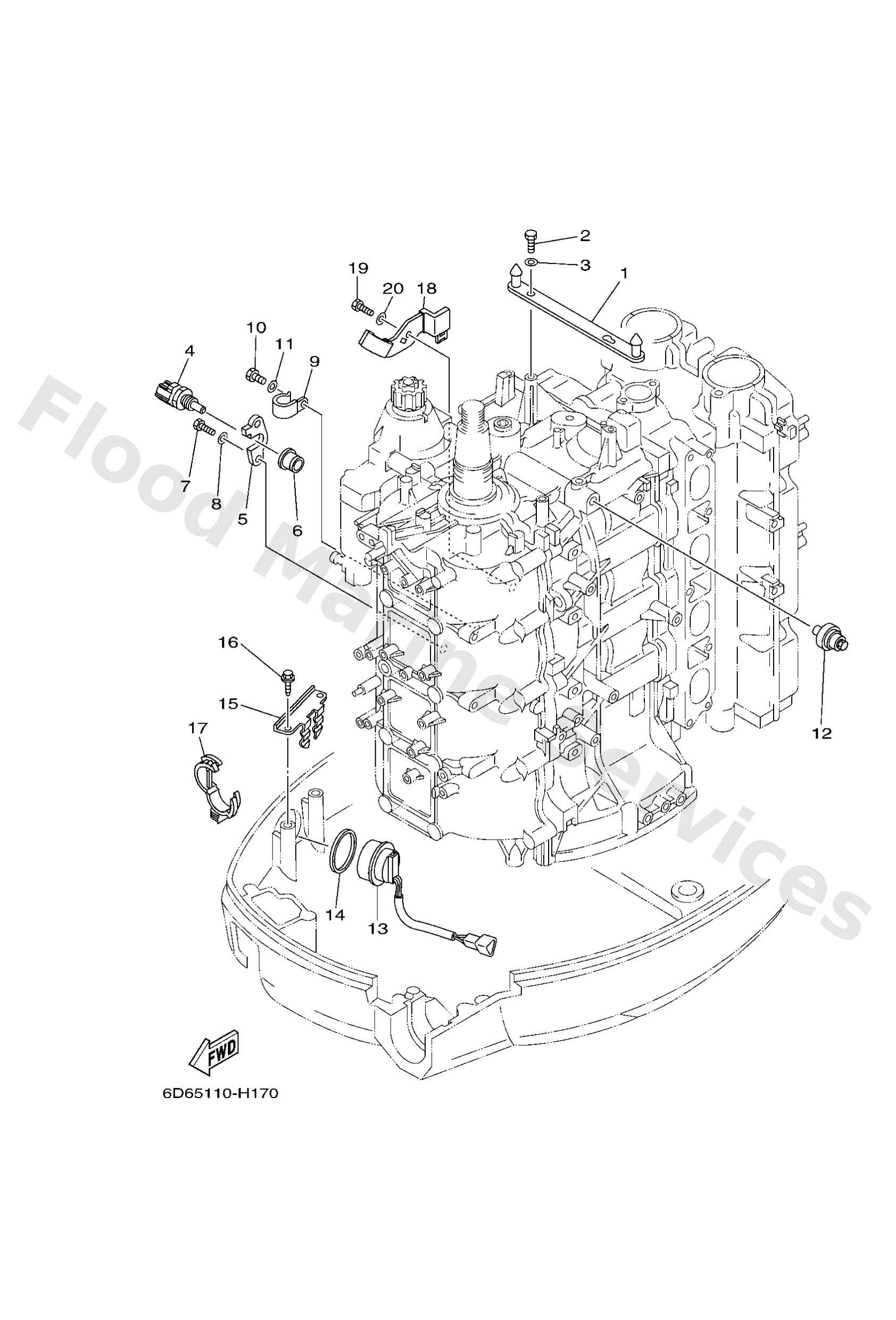

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6D88132G00
Plate
Loading…
↗
2
9709506016
Bolt, hexagon deep recess
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
67F8579000
Thermosensor assembly
Loading…
↗
5
67F8575700
Retainer
Loading…
↗
6
68V8575300
Gasket, sender unit
Loading…
↗
9
9046506M86
Clamp
Loading…
↗
10
9709506012
Bolt(gh1)
Loading…
↗
12
68V8250400
Oil pressure switch assembly
Loading…
↗
13
63D8256310
Trim & tilt switch assembly
Loading…
↗
14
6E58258700
Gasket
Loading…
↗
15
67F8361400
Bracket
Loading…
↗
16
9010906M86
Bolt
Loading…
↗
17
9046430003
Clamp
Loading…
↗
18
6D88252H01
Plate, holder
Loading…
↗
