F80CED (2011)
ELECTRICAL 4

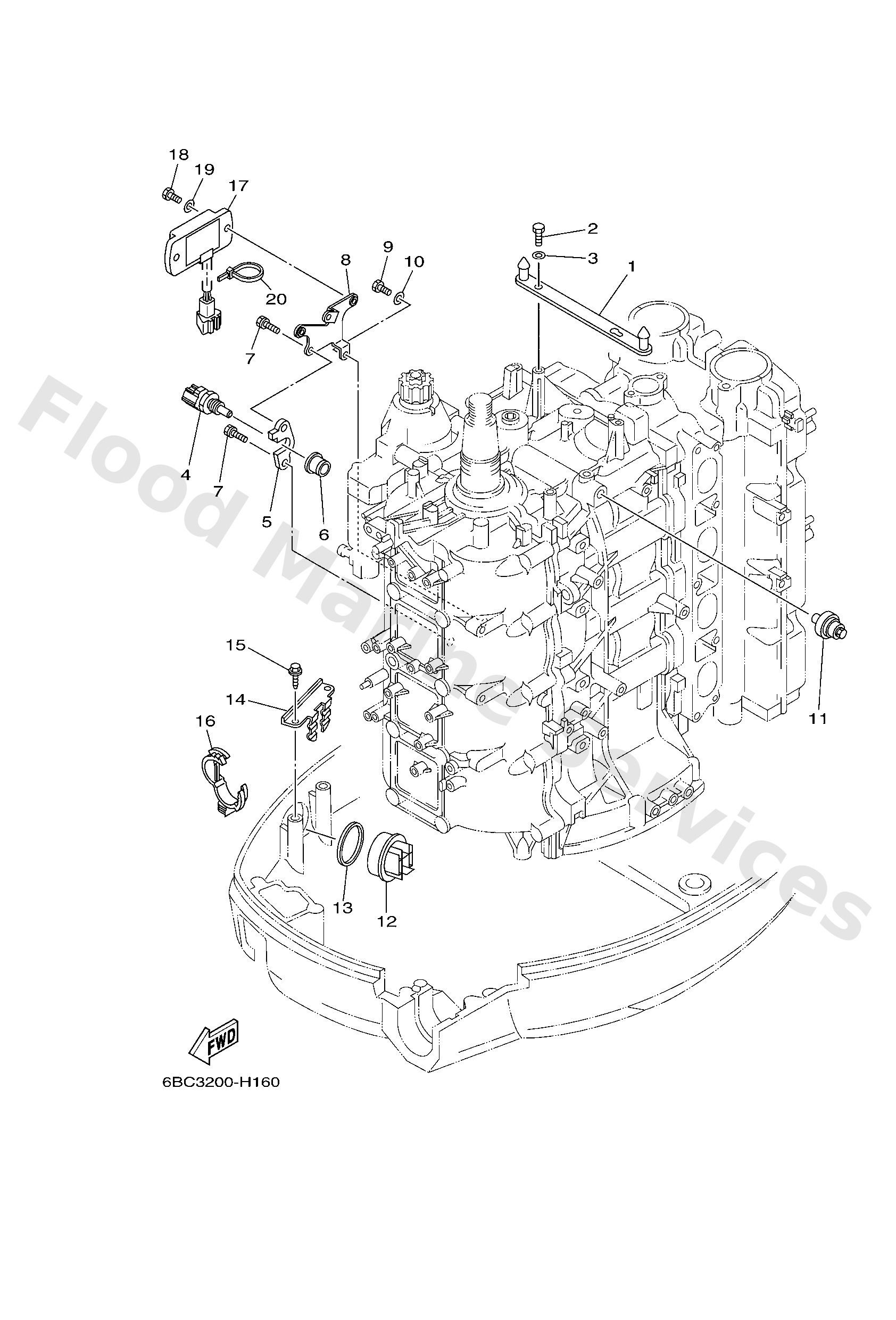

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6D88132G00
Plate
Loading…
↗
2
9709506016
Bolt, hexagon deep recess
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
67F8579000
Thermosensor assembly
Loading…
↗
5
67F8575700
Retainer
Loading…
↗
6
68V8575300
Gasket, sender unit
Loading…
↗
7
9011906MA2
Bolt, with washer
Loading…
↗
8
6BC8351900
Bracket, meter
Loading…
↗
9
9709506012
Bolt(gh1)
Loading…
↗
11
68V8250400
Oil pressure switch assembly
Loading…
↗
12
68F42723108D
Cover, bottom
Loading…
↗
13
6E58258700
Gasket
Loading…
↗
14
67F8361400
Bracket
Loading…
↗
15
9010906M86
Bolt
Loading…
↗
16
9046430003
Clamp
Loading…
↗
17
6Y58350422
Hour meter assembly
Loading…
↗
18
9788005014
Screw, pan head(3yl)
Loading…
↗
19
9299005600
Washer, plain (646)
Loading…
↗
20
9046511M10
Clamp
Loading…
↗
