Yamaha Outboard Parts - ELECTRICAL 4 - FL115BET (2019) | Flood Marine

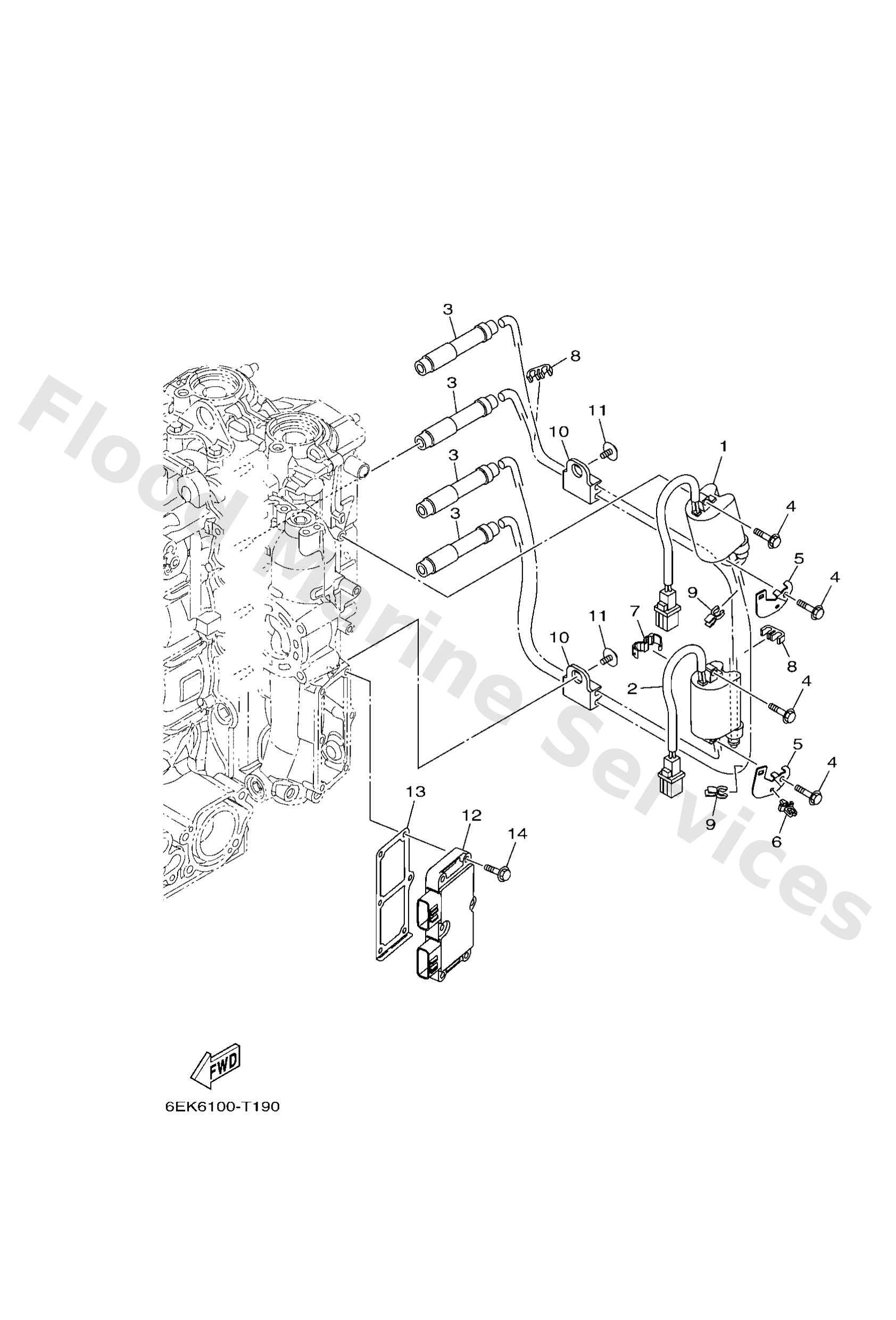

Diagram: ELECTRICAL 4

Diagram

Parts List

Reference
Description
Price


1
6EK8231000
Ignition coil assembly
Loading…

↗
2
6EK8231010
Ignition coil assembly
Loading…

↗
3
6EK8237000
Plug cap assembly
Loading…

↗
4
97E9506525
Bolt, hexagon w/w deep recess
Loading…

↗
5
6EK8238800
Plate
Loading…

↗
6
9046406001
Clamp
Loading…

↗
7
9046413227
Clamp
Loading…

↗
8
67F8236100
Clamp, cord
Loading…

↗
9
9046407M41
Clamp(62y)
Loading…

↗
10
67F8236200
Clamp, cord 2
Loading…

↗
11
9011906M09
Bolt, with washer
Loading…

↗
12
6EK8196010
Rectifier & regulator assembly
Loading…

↗
13
6EK8197501
Plate, rectifier fitting
Loading…

↗
14
97E9506530
Bolt, hexagon w/w deep recess
Loading…

↗
