Yamaha Outboard Parts - ELECTRICAL 4 - FL150AET (2014) | Flood Marine

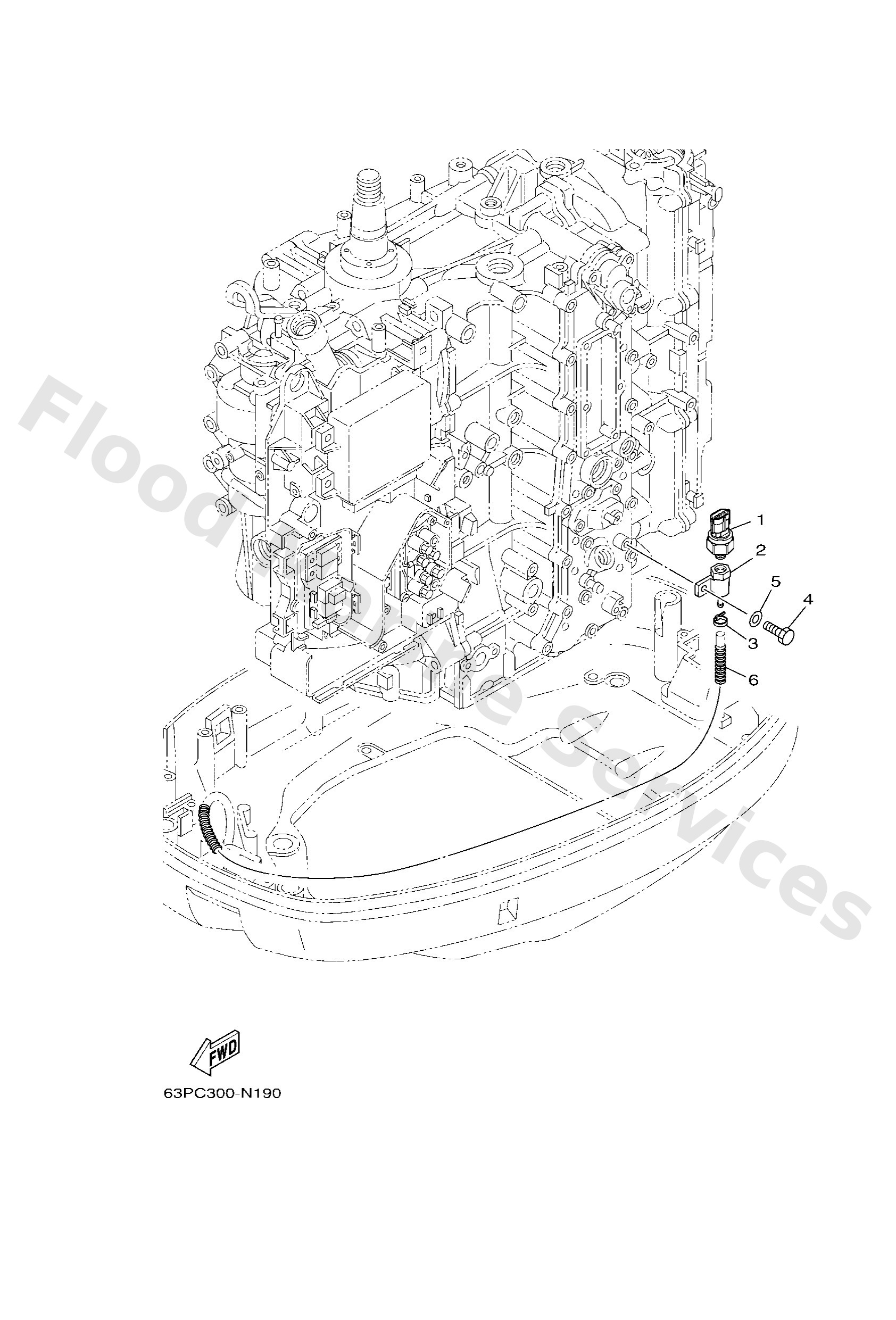

Diagram: ELECTRICAL 4

Diagram

Parts List

Reference
Description
Price


1
6AW8366B01 FOR LAN SPEED
Sensor, water pressure
Loading…

↗
2
60V8366D00 FOR LAN SPEED
Adaptor, input
Loading…

↗
3
9046511M10 FOR LAN SPEED
Clamp
Loading…

↗
4
9709506016 FOR LAN SPEED
Bolt, hexagon deep recess
Loading…

↗
5
9299506600 FOR LAN SPEED
Washer, plain (646)
Loading…

↗
6
9044707013 FOR LAN SPEED
Hose, cover (l: 700mm)
Loading…

↗
