FL200CET (2020)
ELECTRICAL 4

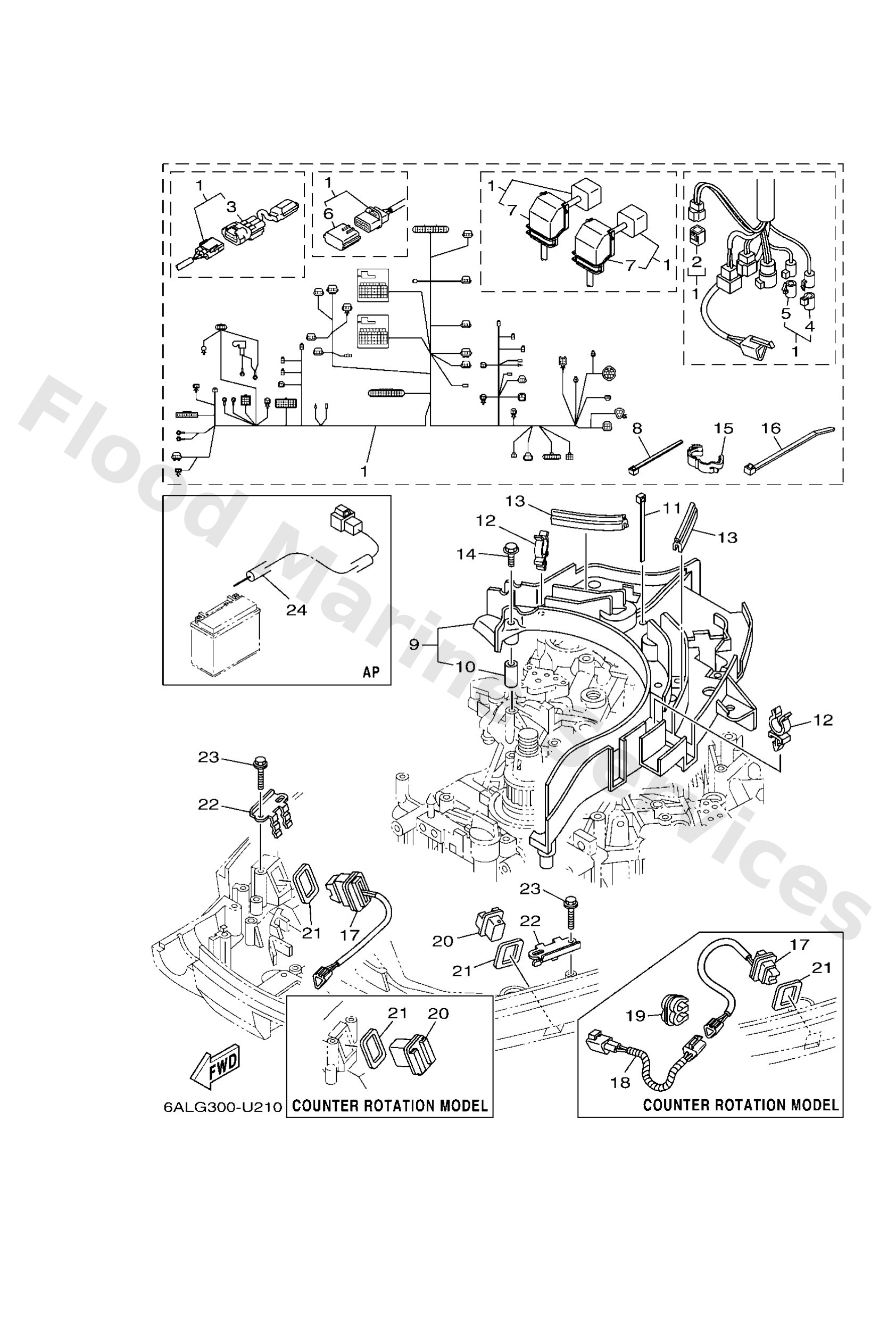

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6P28259070
Wire harness assembly
Loading…
↗
2
6Y88258211
White cap 1 (4pin)
Loading…
↗
3
6FM8198000
Diode assembly
Loading…
↗
4
6DA8258200
Cap 1 (female)
Loading…
↗
5
6DA8258210
Cap 1 (male)
Loading…
↗
6
6AW8258200
Cap 1
Loading…
↗
7
6EM8259900
Cover, connecter
Loading…
↗
8
9046514M66
Clamp
Loading…
↗
9
6P28258910
Protecter, wire harness
Loading…
↗
10
9038706M26
Collar(61n)
Loading…
↗
12
9046419M45
Clamp(65j)
Loading…
↗
13
6P28572200
Insulator
Loading…
↗
14
97E9506535
Bolt, hexagon w/w deep recess
Loading…
↗
15
9046414010
Clamp
Loading…
↗
16
9046513M18
Clamp
Loading…
↗
17
69J8256301
Trim & tilt switch assembly
Loading…
↗
18
6P38255300
Extension, wire lead
Loading…
↗
19
9046410M57
Clamp
Loading…
↗
20
69J4272301
Cover, bottom
Loading…
↗
21
69J8258700
Gasket
Loading…
↗
22
69J8361410
Bracket
Loading…
↗
23
9010906M86
Bolt
Loading…
↗
24
69J8194903
AP
Wire, lead (isolator, 3.8m )
Loading…
↗
