Yamaha Outboard Parts - ELECTRICAL 4 - FL200GET1 (2015) | Flood Marine

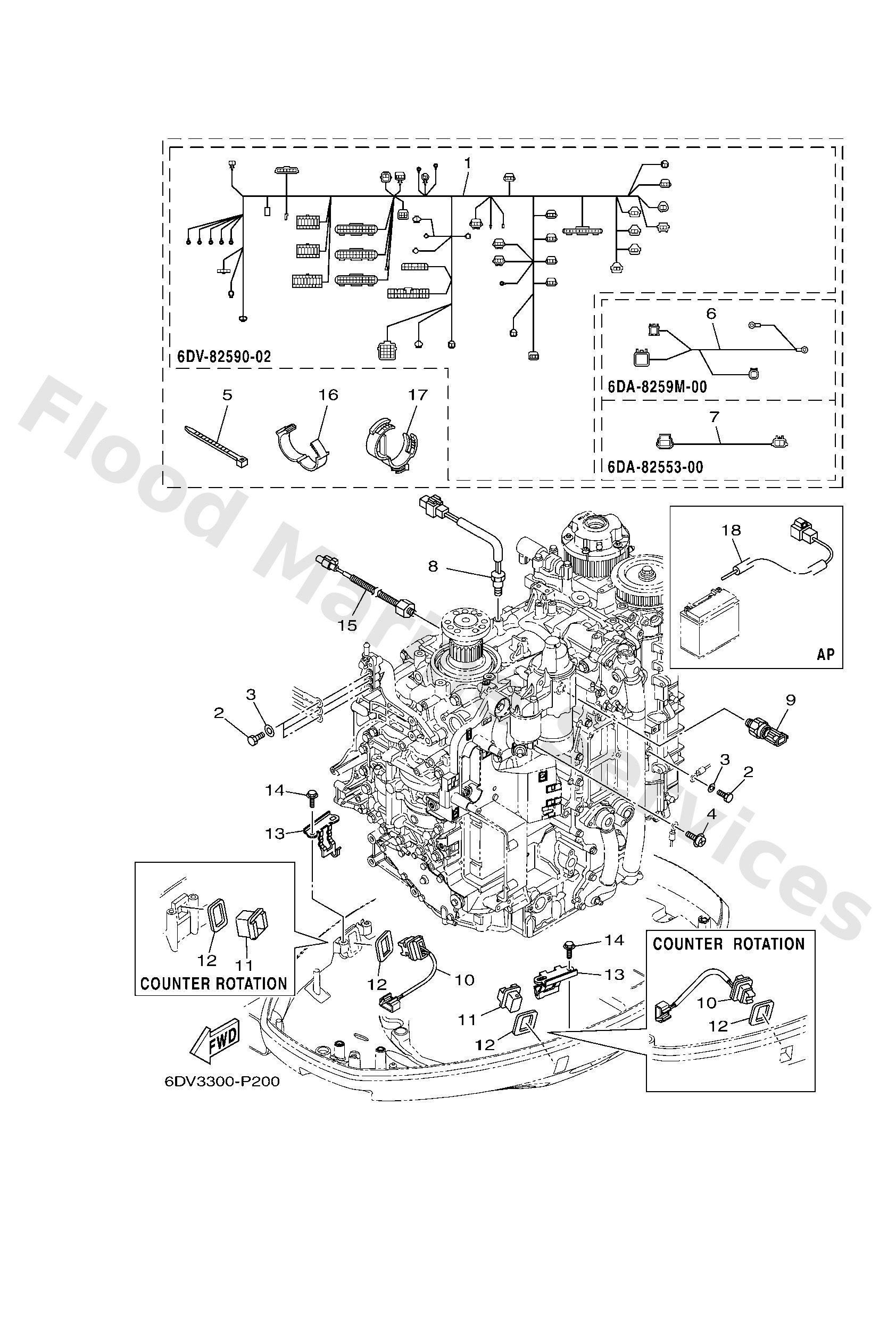

Diagram: ELECTRICAL 4

Diagram

Parts List

Reference
Description
Price


1
6DV8259002
Wire harness assembly
Loading…

↗
2
9709506016
Bolt, hexagon deep recess
Loading…

↗
3
9299506600
Washer, plain (646)
Loading…

↗
4
9798504308
Screw, with washer
Loading…

↗
5
9046511M59
Clamp(63m)
Loading…

↗
6
6DA8259M00
Wire harness assembly 2
Loading…

↗
7
6DA8255300
Extension, wire lead
Loading…

↗
8
6CB8579000
Thermosensor assembly
Loading…

↗
9
6AW8365100
Sender, oil pressure
Loading…

↗
10
6BR8256301
Trim & tilt switch assembly
Loading…

↗
11
69J4272301
Cover, bottom
Loading…

↗
12
69J8258700
Gasket
Loading…

↗
13
63P8361401
Bracket
Loading…

↗
14
9589506012
Bolt, flange deep recess
Loading…

↗
15
6CJ8578000
Sensor, knock
Loading…

↗
16
9046426001
Clamp
Loading…

↗
17
9046430003
Clamp
Loading…

↗
18
69J8194902 AP
Wire, lead (isolator, 3.8m )
Loading…

↗
