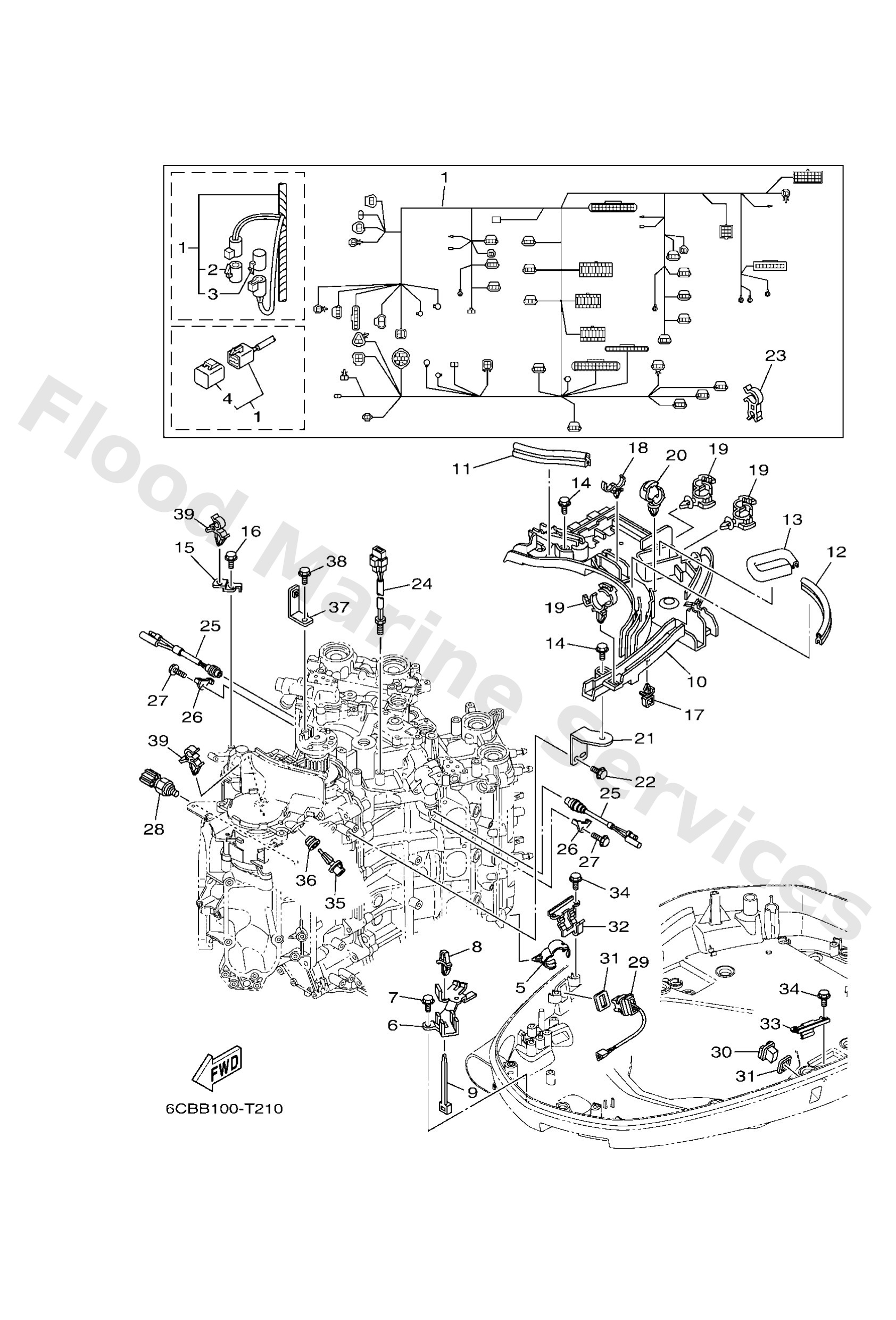

Diagram: ELECTRICAL 4

Diagram

Parts List

Reference
Description
Price


1
6CB8259012
Wire harness assembly
Loading…

↗
2
6P28258200
Cap 1 (Female)
Loading…

↗
3
6P28258210
Cap 1 (Male)
Loading…

↗
4
6Y88258211
Cap 1 (4Pin)
Loading…

↗
5
9046420181
Clamp
Loading…

↗
6
6CB8259400
Clamp
Loading…

↗
7
95D9506012
Bolt, flange deep recess
Loading…

↗
8
9046406001
Clamp
Loading…

↗
9
9046513M24
Clamp
Loading…

↗
10
6CB8258910
Protecter, wire harness
Loading…

↗
11
6AH4261700
Damper, Form
Loading…

↗
12
6CB4261700
Damper, form
Loading…

↗
13
6CB4262900
Seal
Loading…

↗
14
95D9506020
Bolt, flange deep recess
Loading…

↗
15
6CB8132G00
Plate
Loading…

↗
16
95D9506016
Bolt, flange deep recess
Loading…

↗
17
9046411121
Clamp(4gy)
Loading…

↗
18
9046418246
Clamp
Loading…

↗
19
9046412183
Clamp
Loading…

↗
21
6CB8238800
Plate
Loading…

↗
23
9046423001
Clamp
Loading…

↗
24
6CB8579000
Thermosensor Assy
Loading…

↗
25
6P28256001
Thermo Switch Assy
Loading…

↗
26
6E98258800
Plate
Loading…

↗
28
6AW8365100
Sender, Oil Pressure
Loading…

↗
29
69J8256301
Trim & tilt switch assembly
Loading…

↗
30
69J4272301
18
Loading…

↗
31
69J8258700
Gasket
Loading…

↗
32
63P8361401
Bracket
Loading…

↗
33
6DA8361400
Bracket
Loading…

↗
35
63P8588600
Sensor, Air Temperature
Loading…

↗
36
6CE1443500
Grommet
Loading…

↗
37
6CB8195210
Holder, relay
Loading…

↗
39
9046409129
Clamp
Loading…

↗
