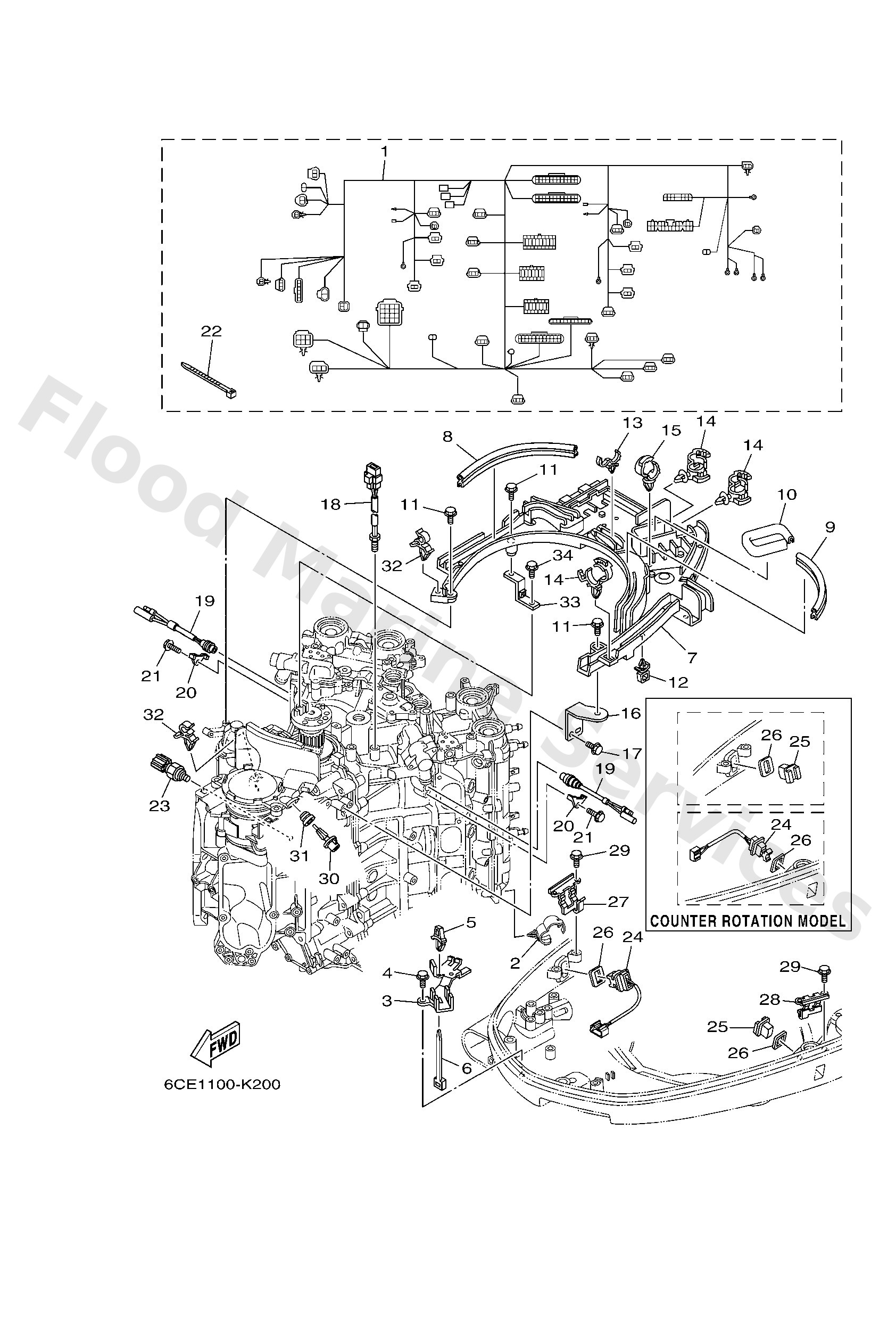

Diagram: ELECTRICAL 4

Diagram

Parts List

Reference
Description
Price


1
6CE8259000
Wire harness assembly
Loading…

↗
2
9046420181
Clamp(4ap)
Loading…

↗
3
6CB8259400
Clamp
Loading…

↗
4
9589506012
Bolt, flange deep recess
Loading…

↗
5
9046406001
Clamp
Loading…

↗
6
9046513M24
Band, switch cord
Loading…

↗
7
6CB8258900
Protecter, wire harness
Loading…

↗
8
6BG4261700
Damper, form
Loading…

↗
9
6CB4261700
Damper, form
Loading…

↗
10
6CB4262900
Seal
Loading…

↗
11
9589506020
Bolt, flange(jk3)
Loading…

↗
12
9046411121
Clamp(4gy)
Loading…

↗
13
9046418246
Clamp(4tr)
Loading…

↗
14
9046412183
Clamp(jn2)
Loading…

↗
16
6CB8238800
Plate
Loading…

↗
17
9589506016
Bolt, flange deep recess
Loading…

↗
18
6CB8579000
Thermosensor assembly
Loading…

↗
19
6P28256001
Thermo switch assembly
Loading…

↗
20
6E98258800
Plate
Loading…

↗
22
9046514M66
Clamp
Loading…

↗
23
6AW8365100
Sender, oil pressure
Loading…

↗
24
6BR8256300
Trim & tilt switch assembly
Loading…

↗
25
69J42723008D
Cover, bottom
Loading…

↗
26
69J8258700
Gasket
Loading…

↗
27
63P8361401
Bracket
Loading…

↗
30
63P8588600
Sensor, air temperature
Loading…

↗
31
63P1443500
Grommet
Loading…

↗
32
9046409129
Clamp(3ld)
Loading…

↗
33
6CB8195200
Holder, relay
Loading…

↗
