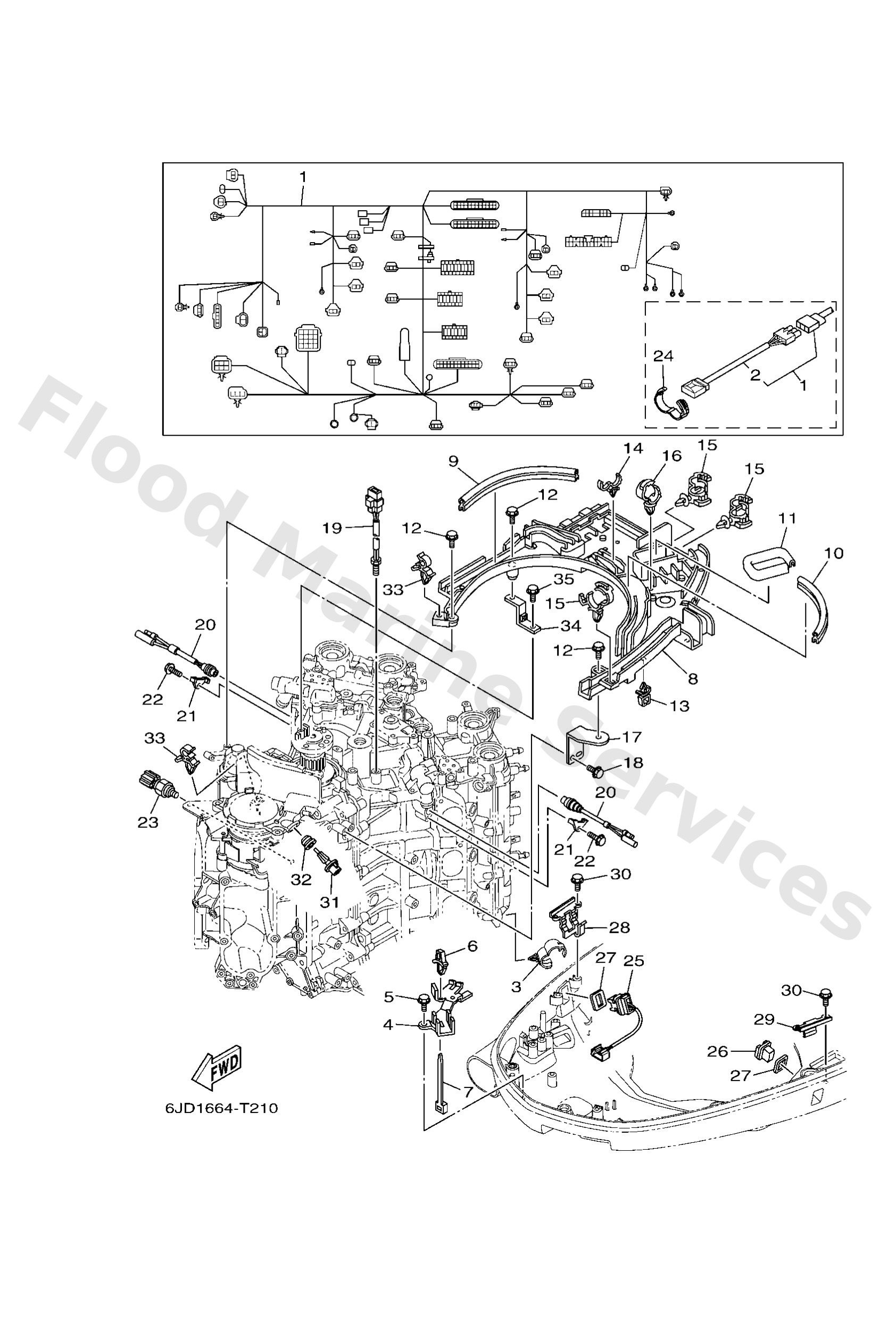

Diagram: ELECTRICAL 4

Diagram

Parts List

Reference
Description
Price


1
6CE8259015 FOR TILT LIMIT
Wire harness assembly
Loading…

↗
2
6CE8198000
Diode assembly
Loading…

↗
3
9046420181
Clamp(4ap)
Loading…

↗
4
6CB8259400
Clamp
Loading…

↗
5
95D9506012
Bolt, flange deep recess
Loading…

↗
6
9046406001
Clamp
Loading…

↗
7
9046513M24
Band, switch cord
Loading…

↗
8
6CB8258901
Protecter, wire harness
Loading…

↗
9
6BG4261700
Damper, form
Loading…

↗
10
6CB4261700
Damper, form
Loading…

↗
11
6CB4262900
Seal
Loading…

↗
12
95D9506020
Bolt, flange deep recess
Loading…

↗
13
9046411121
Clamp(4gy)
Loading…

↗
14
9046418246
Clamp(4tr)
Loading…

↗
15
9046412183
Clamp(jn2)
Loading…

↗
17
6CB8238800
Plate
Loading…

↗
18
95D9506016
Bolt, flange deep recess
Loading…

↗
19
6CB8579000
Thermosensor assembly
Loading…

↗
20
6P28256001
Thermo switch assembly
Loading…

↗
21
6E98258800
Plate
Loading…

↗
23
6AW8365100
Sender, oil pressure
Loading…

↗
24
9046416001
Clamp
Loading…

↗
25
6BR8256301
Trim & tilt switch assembly
Loading…

↗
26
69J4272301
Cover, bottom
Loading…

↗
27
69J8258700
Gasket
Loading…

↗
28
63P8361401
Bracket
Loading…

↗
29
6DA8361400
Bracket
Loading…

↗
31
63P8588600
Sensor, air temperature
Loading…

↗
32
6CE1443500
Grommet
Loading…

↗
33
9046409129
Clamp(3ld)
Loading…

↗
34
6CB8195200
Holder, relay
Loading…

↗
