FL350AET (2012)
ELECTRICAL 4

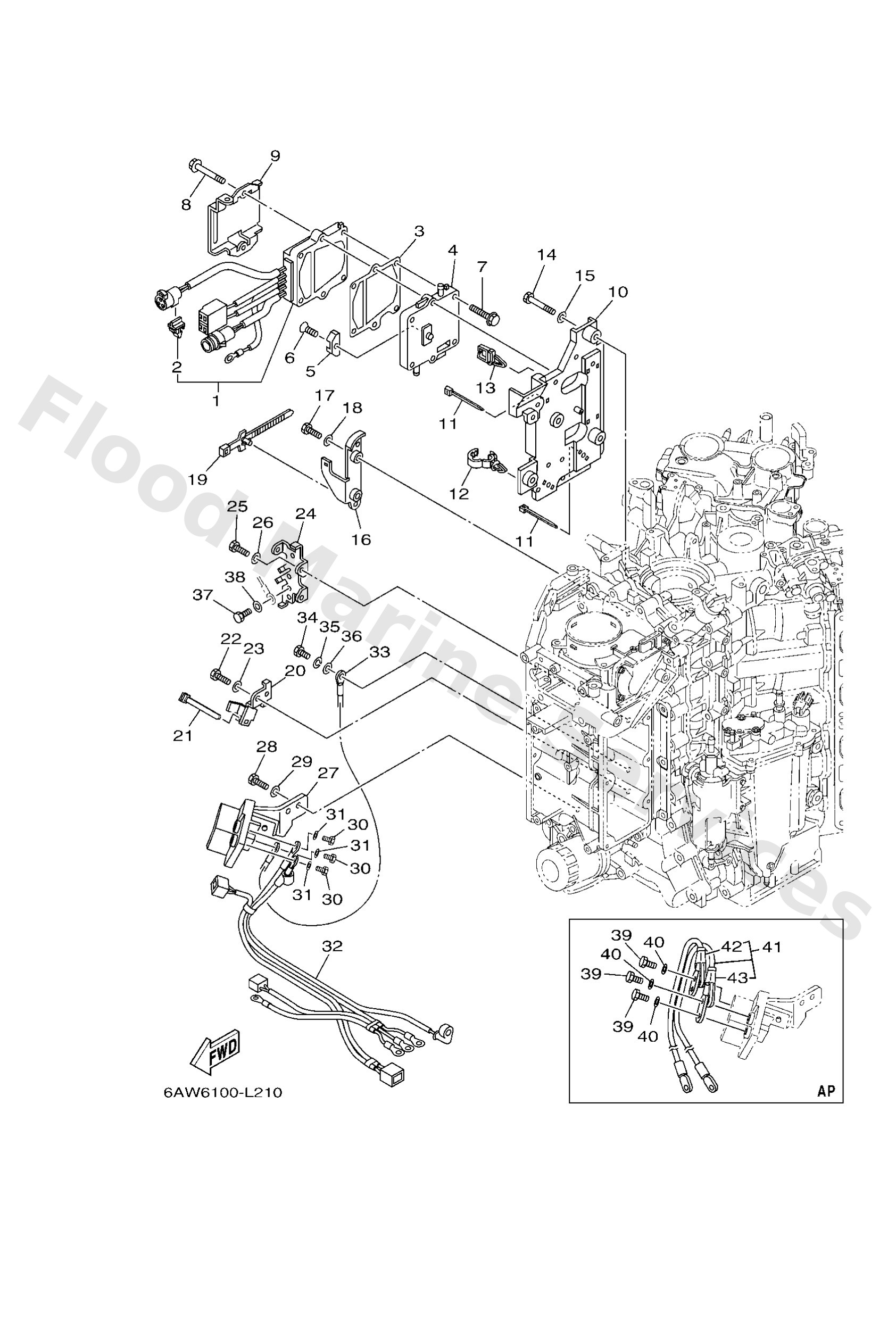

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6AW8196001
Rectifier & regulator assembly
Loading…
↗
2
9046412002
Clamp
Loading…
↗
3
6AW8197500
Plate, rectifier fitting
Loading…
↗
4
6AW81972009S
Cover, rectifier
Loading…
↗
5
6E51132500
Anode
Loading…
↗
6
9878004015
Screw, flat head(ga5)
Loading…
↗
7
9011906MA3
Bolt, with washer
Loading…
↗
8
9011906MA5
Bolt, with washer
Loading…
↗
9
6AW8258100
Stay, cord clamp
Loading…
↗
10
6AW8235A00
Case 1
Loading…
↗
11
9046514M66
Clamp
Loading…
↗
12
9046413249
Clamp
Loading…
↗
13
9046411121
Clamp(4gy)
Loading…
↗
14
9709506016
Bolt, hexagon deep recess
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
16
6AW8361401
Bracket
Loading…
↗
17
9709506014
Bolt(gj3)
Loading…
↗
19
9046444002
Clamp
Loading…
↗
20
6AW8132800
Clamp
Loading…
↗
24
6AW8121800
Terminal
Loading…
↗
27
6AW8192501
Terminal
Loading…
↗
28
9709508020
Bolt, hexagon
Loading…
↗
40
9299508600
AP
Washer, plain (663)
Loading…
↗
30
9010108022
Bolt, hexagon deep recess
Loading…
↗
31
9299008600
Washer, plain (663)
Loading…
↗
32
6AW8259M00
Wire harness assembly 2
Loading…
↗
33
6AW8211701
Wire, lead
Loading…
↗
35
9299506100
Washer(6a1)
Loading…
↗
37
9709506010
Bolt
Loading…
↗
39
9709508016
AP
Bolt, hexagon deep recess
Loading…
↗
41
6AW8210500
AP
Wire harness
Loading…
↗
42
6AW8211900
Cover, lead wire (black)
Loading…
↗
43
6AW8211920
Cover, lead wire (red)
Loading…
↗
