Yamaha Outboard Parts - ELECTRICAL 4 - FT25FET (2021) | Flood Marine

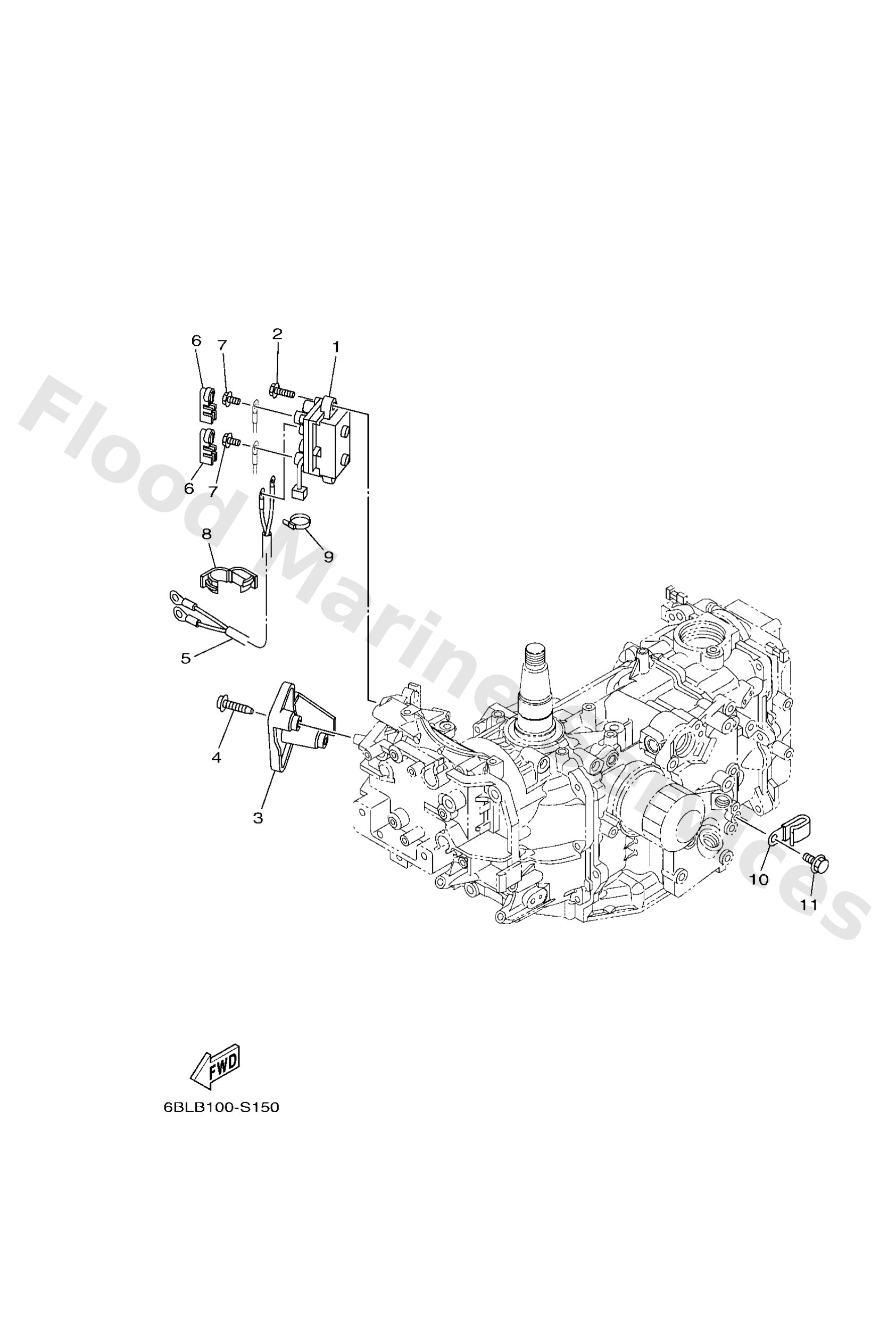

Diagram: ELECTRICAL 4

Diagram

Parts List

Reference
Description
Price


1
63P8195000
Relay assembly
Loading…

↗
2
97E7506520
Bolt, hexagon w/w deep recess
Loading…

↗
3
6BL8194200
Cover
Loading…

↗
4
9016705009
Screw, tapping
Loading…

↗
5
6BL8194900
Wire, lead
Loading…

↗
6
6P28183X00
Cap, terminal
Loading…

↗
7
97E9506610
Bolt, hexagon w/w deep recess
Loading…

↗
8
9046418004
Clamp
Loading…

↗
9
9046511M10
Clamp
Loading…

↗
10
9046506M90
Clamp
Loading…

↗
11
97E9506516
Bolt, hexagon w/w deep recess
Loading…

↗
