Yamaha Outboard Parts - ELECTRICAL 4 - FT50GET (2009) | Flood Marine

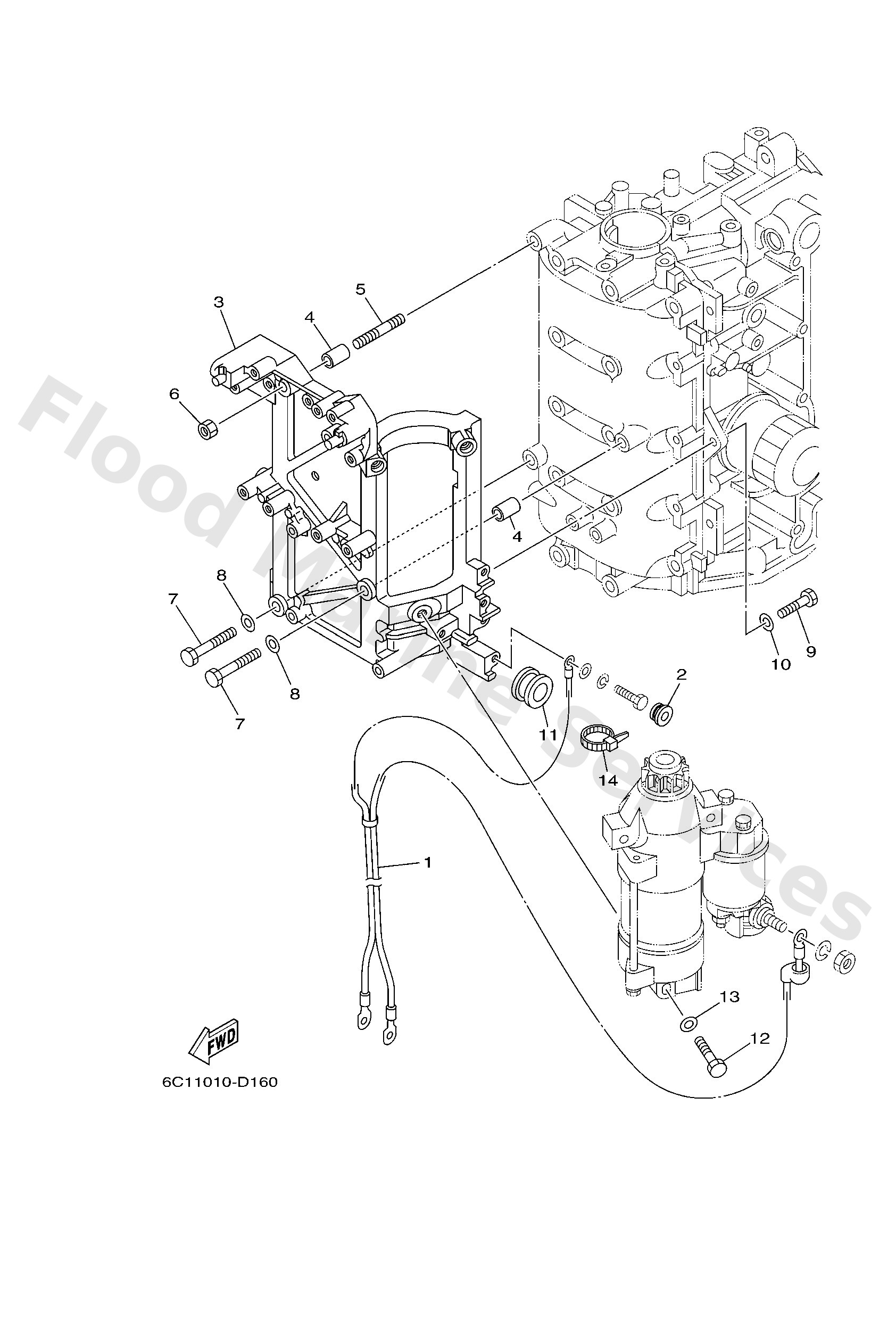

Diagram: ELECTRICAL 4

Diagram

Parts List

Reference
Description
Price


1
6C58210500
Battery cable
Loading…

↗
2
9048012072
Grommet(53y)
Loading…

↗
3
6C5818220094
Bracket, starting motor
Loading…

↗
4
9959010114
Pin, dowel
Loading…

↗
5
9568008330
Bolt, stud
Loading…

↗
6
9538008600
Nut (661)
Loading…

↗
7
9709508035
Bolt(70w)
Loading…

↗
8
9299508600
Washer, plain (663)
Loading…

↗
9
9709508025
Bolt (62g)
Loading…

↗
11
9048024003
Grommet
Loading…

↗
12
9701308045
Bolt
Loading…

↗
13
9290308600
Washer, plain (663)
Loading…

↗
14
9046513M18
Clamp
Loading…

↗
