Yamaha Outboard Parts - ELECTRICAL 4 - FT60GET (2019) | Flood Marine

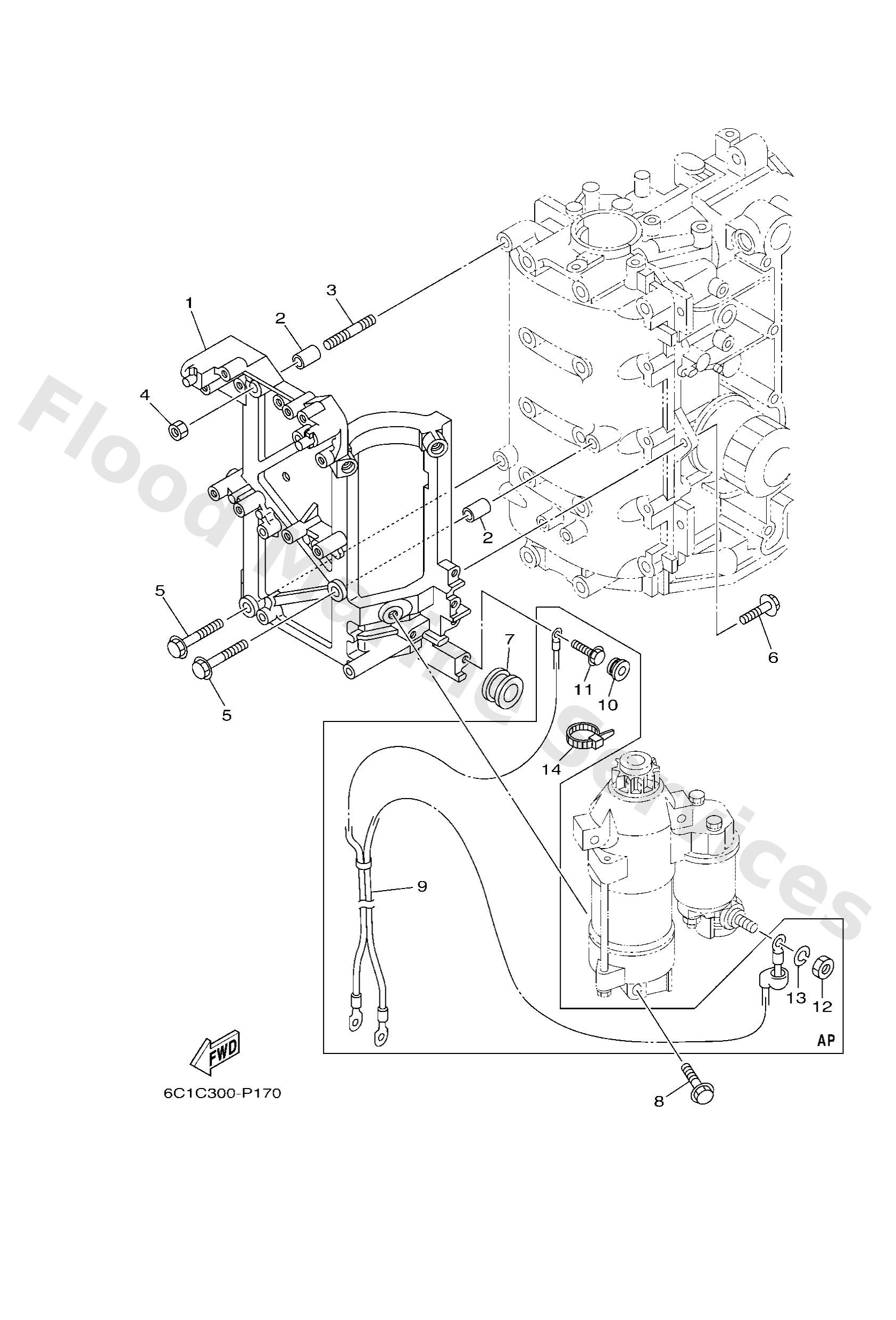

Diagram: ELECTRICAL 4

Diagram

Parts List

Reference
Description
Price


1
6C58182200
Bracket, starting motor
Loading…

↗
2
9953010114
Pin, dowel(3vd)
Loading…

↗
3
9568008330
Bolt, stud
Loading…

↗
4
9538008600
Nut (661)
Loading…

↗
5
97E9508535
Bolt, hexagon w/w deep recess
Loading…

↗
6
97E9508525
Bolt, hexagon w/w deep recess
Loading…

↗
7
9048024003
Grommet
Loading…

↗
8
9751308545
Bolt, with washer
Loading…

↗
9
6C58210501 AP
Battery cable
Loading…

↗
10
9048012072 AP
Grommet(53y)
Loading…

↗
11
97E9506620 AP
Bolt, hexagon w/w deep recess
Loading…

↗
12
9533308600 AP
Nut(6l2)
Loading…

↗
13
9290308100 AP
Ybs67-8 washer, spring
Loading…

↗
14
9046513M18 AP
Clamp
Loading…

↗
