L250AETO (2002)
ELECTRICAL 4

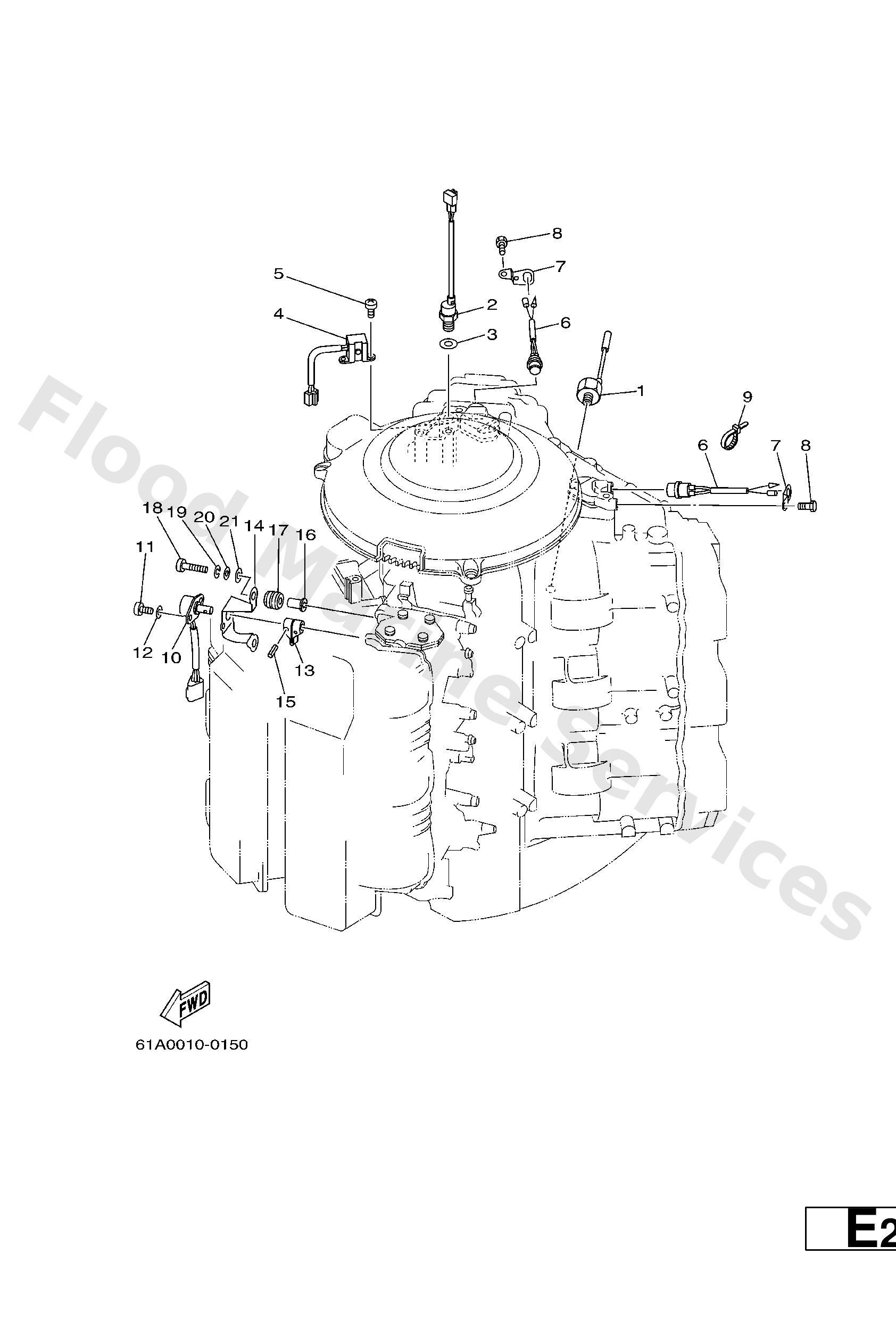

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
61A−85780−00
Sensor, knock
Loading…
↗
2
61A−85790−00
Thermosensor assembly
Loading…
↗
3
92990−10600
Washer, plate
Loading…
↗
4
61A−85895−00
Crank position sender
Loading…
↗
5
97885−05012
Screw,pan head (646)
Loading…
↗
6
61A−82560−00
Thermo switch assembly
Loading…
↗
7
61A−8252U−00
Cover
Loading…
↗
8
97080−06012
Bolt(gh1)
Loading…
↗
9
90465−11M10
Clamp
Loading…
↗
10
61A−85885−00
Throttle sensor assembly
Loading…
↗
11
97885−05010
Screw, pan head(62x)
Loading…
↗
12
92995−05600
Washer, plain (646)
Loading…
↗
13
6K7−14573−00
Lever
Loading…
↗
14
61A−85886−00
Bracket
Loading…
↗
15
91690−30016
Pin, spring
Loading…
↗
16
90387−05M00
Collar(6k7)
Loading…
↗
17
90480−10M23
Grommet(6k7)
Loading…
↗
18
97885−05025
Screw, pan head(62j)
Loading…
↗
19
92995−05100
Ybs67-5 washer, spring
Loading…
↗
21
90201−05M03
Washer, plate(6k7)
Loading…
↗
