L250AETO (2004)
ELECTRICAL 4

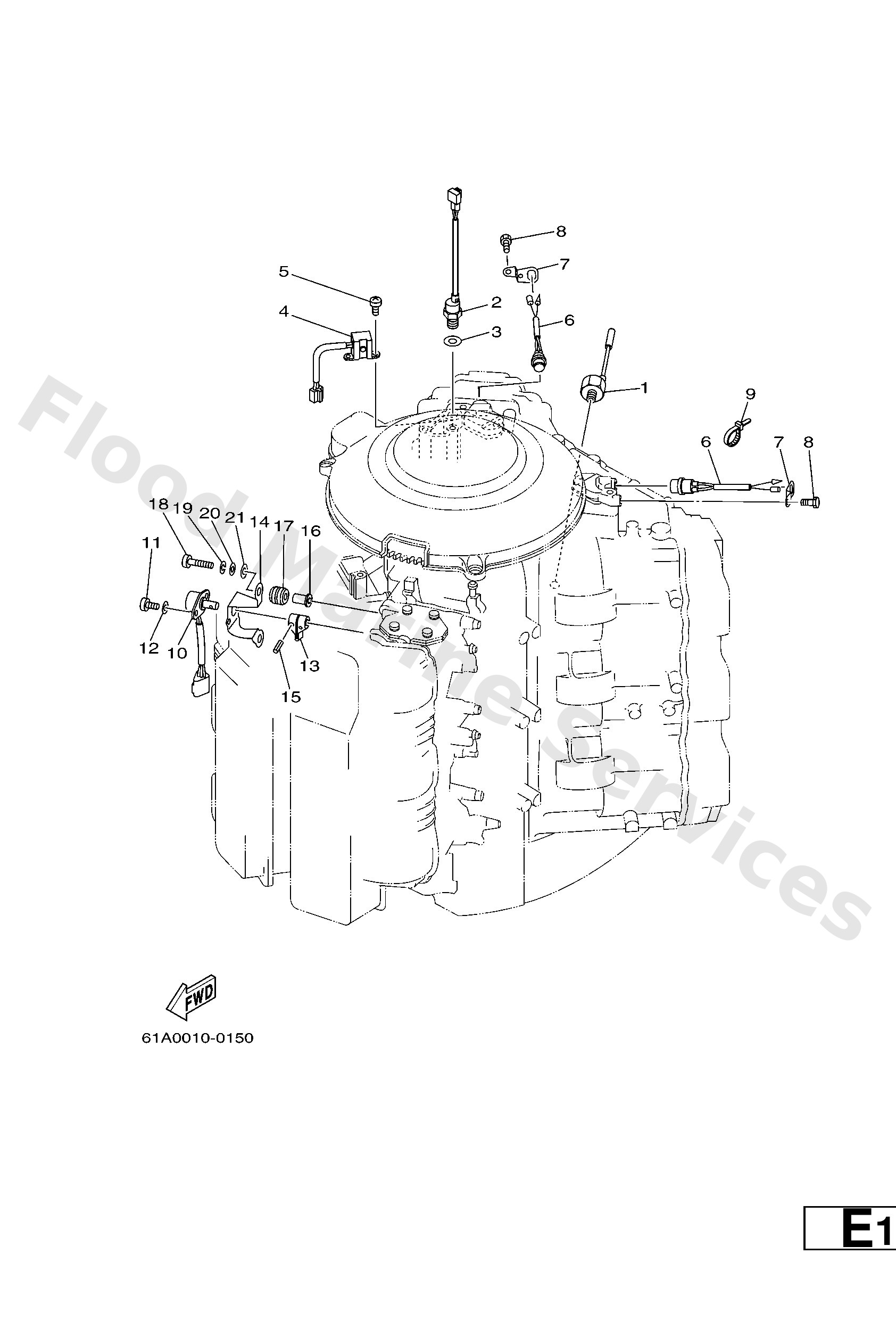

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
61A8578000
Sensor, knock
Loading…
↗
2
61A8579000
Thermosensor assembly
Loading…
↗
3
9299010600
Washer, plate
Loading…
↗
4
61A8589500
Crank position sender
Loading…
↗
5
9788505012
Screw,pan head (646)
Loading…
↗
6
61A8256010
Thermo Switch assembly
Loading…
↗
7
61A8252U00
Cover
Loading…
↗
8
9708006012
Bolt(gh1)
Loading…
↗
9
9046511M10
Clamp
Loading…
↗
10
61A8588500
Throttle sensor assembly
Loading…
↗
11
9788505010
Screw, pan head(62x)
Loading…
↗
12
9299505600
Washer, plain (646)
Loading…
↗
13
6K71457300
Lever
Loading…
↗
14
61A8588600
Bracket
Loading…
↗
15
9169030016
Pin, spring
Loading…
↗
16
9038705M00
Collar(6k7)
Loading…
↗
17
9048010M23
Grommet(6k7)
Loading…
↗
18
9788505025
Screw, pan head(62j)
Loading…
↗
19
9299505100
Ybs67-5 washer, spring
Loading…
↗
21
9020105M03
Washer, plate(6k7)
Loading…
↗
