L250GETO (2007)
ELECTRICAL 4

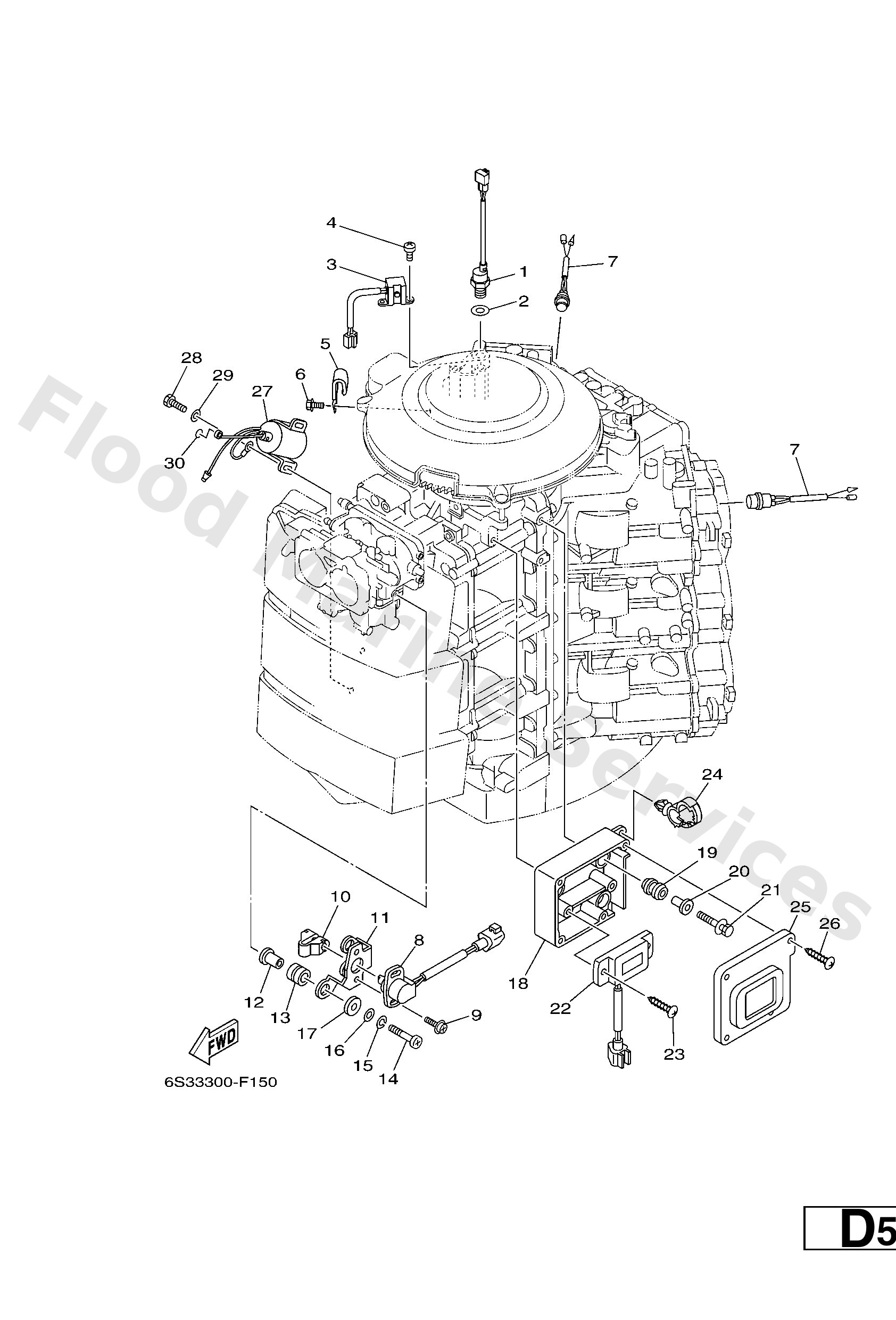

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
61A8579000
Thermosensor assembly
Loading…
↗
2
9299010600
Washer, plate
Loading…
↗
3
61A8589500
Crank position sender
Loading…
↗
4
9788505012
Screw,pan head (646)
Loading…
↗
5
9046506M88
Clamp
Loading…
↗
6
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
7
6888256010
Thermo switch assembly
Loading…
↗
8
61A8588500
Throttle sensor assembly
Loading…
↗
9
9015905M25
Screw,pan head (646)
Loading…
↗
10
6K71457300
Lever
Loading…
↗
11
6K78588601
Bracket
Loading…
↗
12
9038705M00
Collar(6k7)
Loading…
↗
13
60V8551600
Spacer
Loading…
↗
14
9788505025
Screw, pan head(62j)
Loading…
↗
15
9299505100
Ybs67-5 washer, spring
Loading…
↗
16
9299505600
Washer, plain (646)
Loading…
↗
17
9020105660
Washer (676)
Loading…
↗
18
6S38194800
Bracket
Loading…
↗
19
6A08231700
Damper, ignition coil
Loading…
↗
20
9038706119
Collar
Loading…
↗
21
9011906M65
Bolt, with washer
Loading…
↗
22
6Y58350420
Hour meter assembly
Loading…
↗
23
9016905M00
Screw truss head tapping
Loading…
↗
24
9046420181
Clamp(4ap)
Loading…
↗
25
6S38194200
Cover
Loading…
↗
27
64E8611001
Solenoid
Loading…
↗
28
9709506016
Bolt, hexagon deep recess
Loading…
↗
29
9299506600
Washer, plain (646)
Loading…
↗
30
9321003261
O-ring (663)
Loading…
↗
