Yamaha Outboard Parts - ELECTRICAL 4 - LF150CB (2023) | Flood Marine

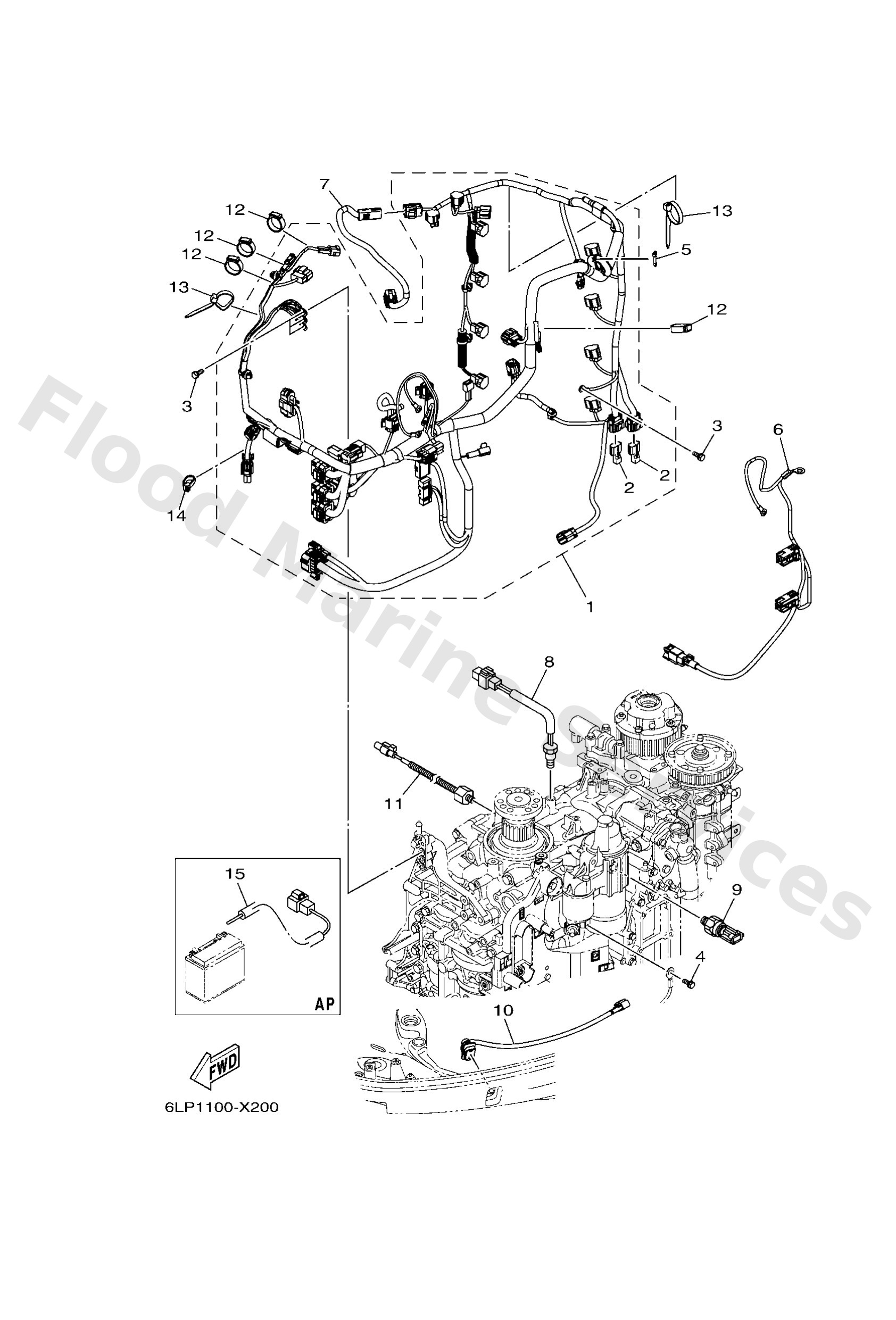

Diagram: ELECTRICAL 4

Diagram

Parts List

Reference
Description
Price


1
6LS8259000
Wire harness assembly
Loading…

↗
2
6AW8258200
Cap 1
Loading…

↗
3
97E9506516
Bolt, hexagon w/w deep recess
Loading…

↗
4
9798504308
Screw, with washer
Loading…

↗
5
9046511M59
Clamp(63m)
Loading…

↗
6
6DA8259M00
Wire harness assembly 2
Loading…

↗
7
6DA8255300
Extension, wire lead
Loading…

↗
8
6CB8579000
Thermosensor assembly
Loading…

↗
9
6AW8365101
Sender, oil pressure
Loading…

↗
10
6LH8256300
Trim & tilt switch assembly
Loading…

↗
11
6CJ8578001
Sensor, knock
Loading…

↗
12
9046426001
Clamp
Loading…

↗
13
9046415195
Clamp(4fm)
Loading…

↗
14
9046511M10
Clamp
Loading…

↗
15
69J8194903 AP
Wire, lead (isolator, 3.8m )
Loading…

↗
