LF175CA (2022)
ELECTRICAL 4

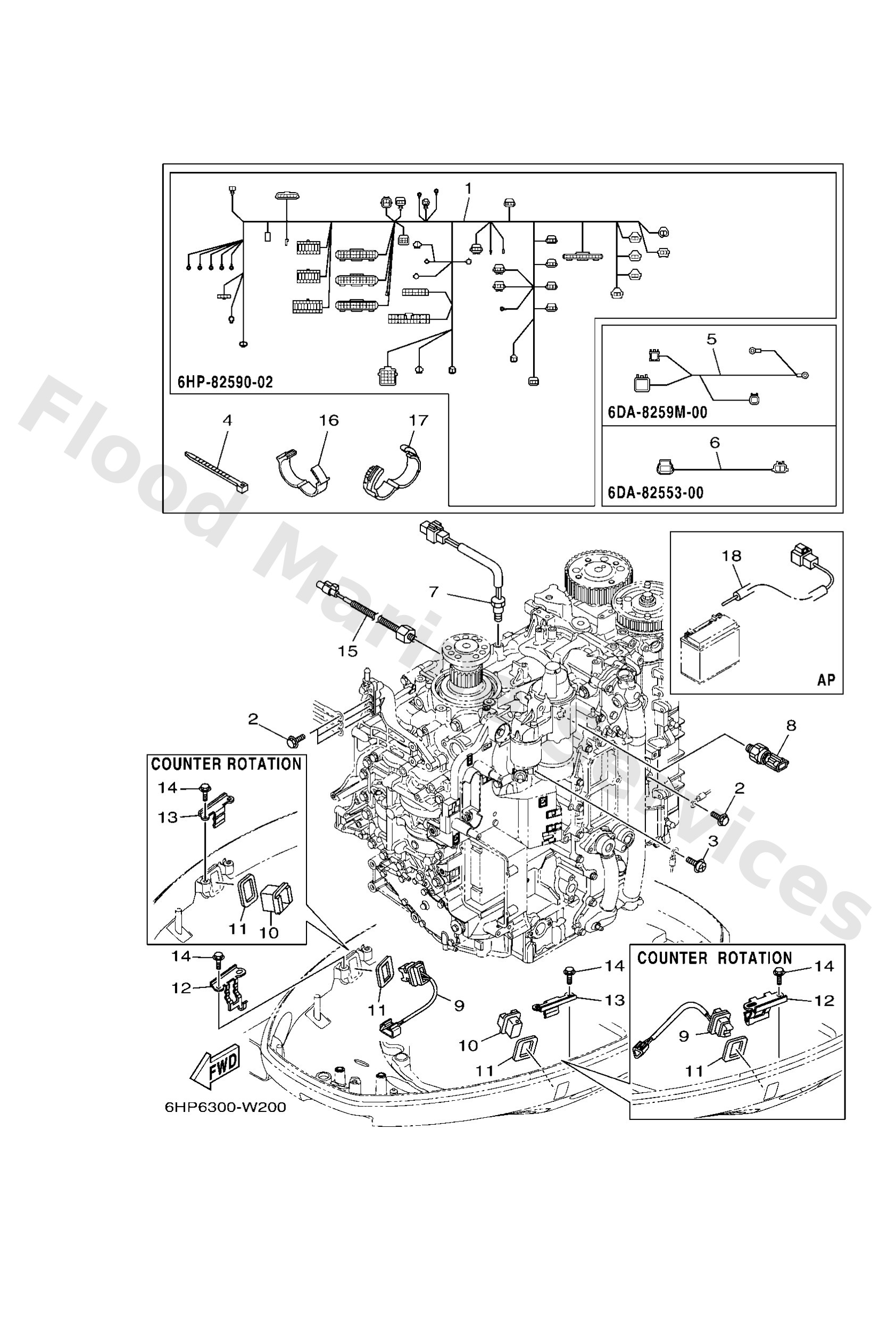

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6HP8259002
Wire harness assembly
Loading…
↗
2
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
3
9798504308
Screw, with washer
Loading…
↗
4
9046511M59
Clamp(63m)
Loading…
↗
5
6DA8259M00
Wire harness assembly 2
Loading…
↗
6
6DA8255300
Extension, wire lead
Loading…
↗
7
6CB8579000
Thermosensor assembly
Loading…
↗
8
6AW8365101
Sender, oil pressure
Loading…
↗
9
6BR8256301
Trim & tilt switch assembly
Loading…
↗
10
69J4272301
Cover, bottom
Loading…
↗
11
69J8258701
Gasket
Loading…
↗
12
63P8361401
Bracket
Loading…
↗
13
6DA8361400
Bracket
Loading…
↗
14
95D9506012
Bolt, flange deep recess
Loading…
↗
15
6CJ8578001
Sensor, knock
Loading…
↗
16
9046426001
Clamp
Loading…
↗
17
9046428003
Go to P/N ) PE0-OM-220011
Clamp
Loading…
↗
18
69J8194903
AP
Wire, lead (isolator, 3.8m )
Loading…
↗
