LZ200NETO (2006)
ELECTRICAL 4

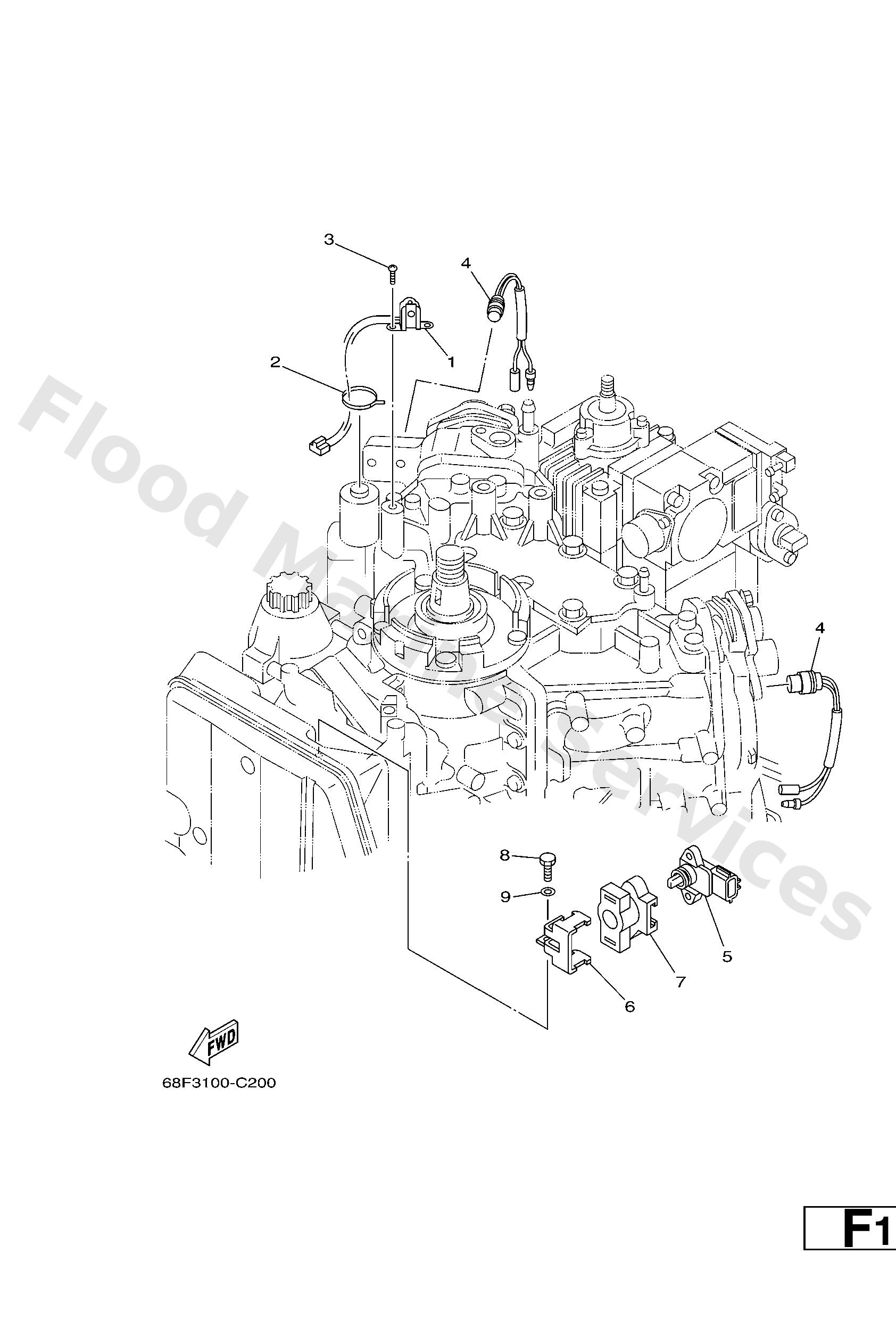

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
61A8589500
Crank position sender
Loading…
↗
2
9046513M18
Clamp
Loading…
↗
3
9788505012
Screw,pan head (646)
Loading…
↗
4
6888256010
Thermo switch assembly
Loading…
↗
5
68F8368800
Sensor assembly
Loading…
↗
6
68F8431R10
Stay, setting
Loading…
↗
7
68F8435200
Grommet
Loading…
↗
8
9709506016
Bolt, hexagon deep recess
Loading…
↗
9
9299506600
Washer, plain (646)
Loading…
↗
