LZ300AETO (2007)
ELECTRICAL 4

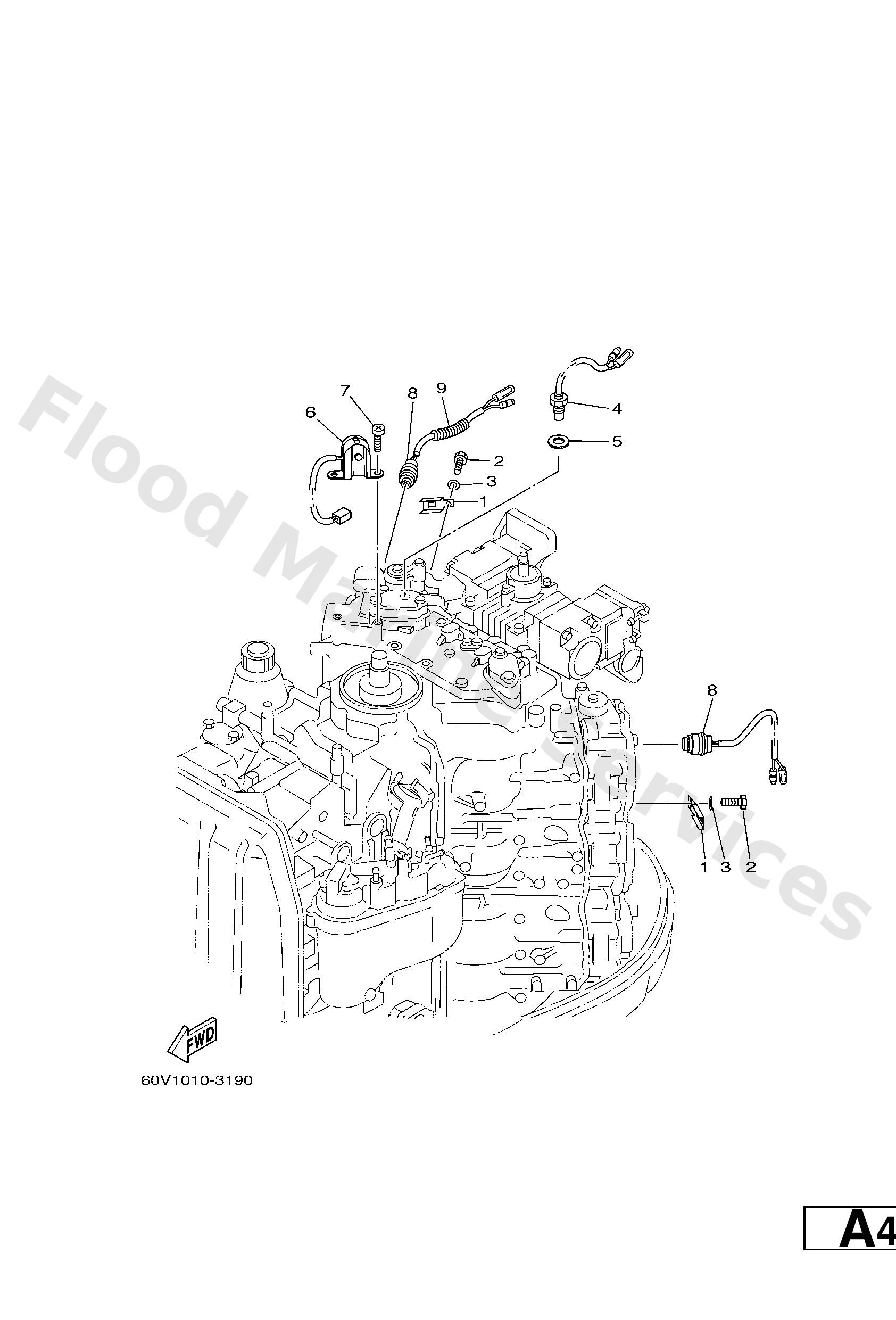

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
60V8258800
Plate
Loading…
↗
2
9709506012
Bolt(gh1)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
61A8579000
Thermosensor assembly
Loading…
↗
5
9299010600
Washer, plate
Loading…
↗
6
61A8589500
Crank position sender
Loading…
↗
7
9788505012
Screw,pan head (646)
Loading…
↗
8
6888256010
Thermo switch assembly
Loading…
↗
9
9044610M87
Hose
Loading…
↗
