VF115A (2021)
ELECTRICAL 4

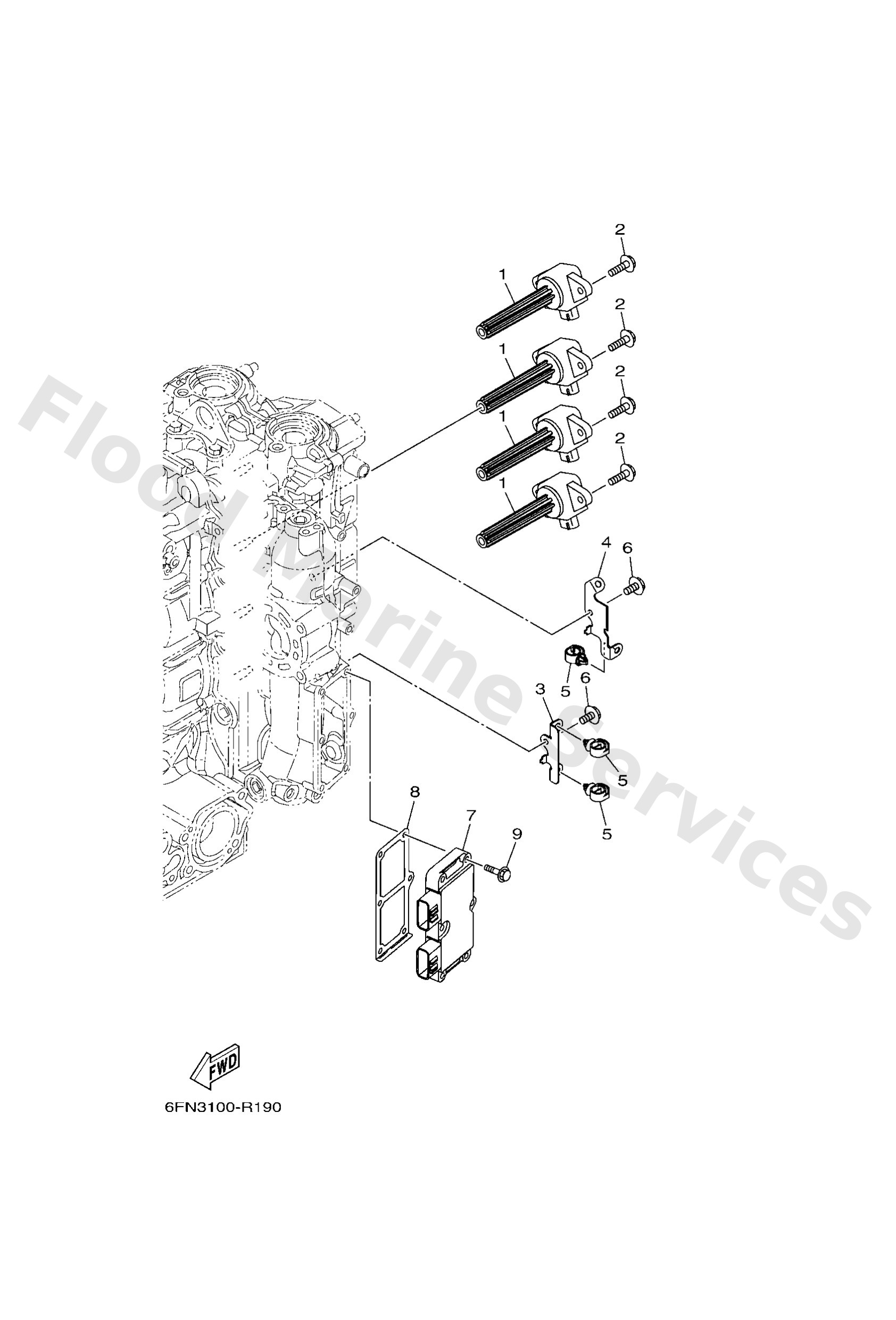

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6P28231001
Ignition coil assembly
Loading…
↗
2
95D9506020
Bolt, flange deep recess
Loading…
↗
3
6EM8238800
Plate
Loading…
↗
4
6EM8238900
Plate 2
Loading…
↗
5
9046413249
Clamp
Loading…
↗
6
95D9506012
Bolt, flange deep recess
Loading…
↗
7
6EK8196010
Rectifier & regulator assembly
Loading…
↗
8
6EK8197501
Plate, rectifier fitting
Loading…
↗
9
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
