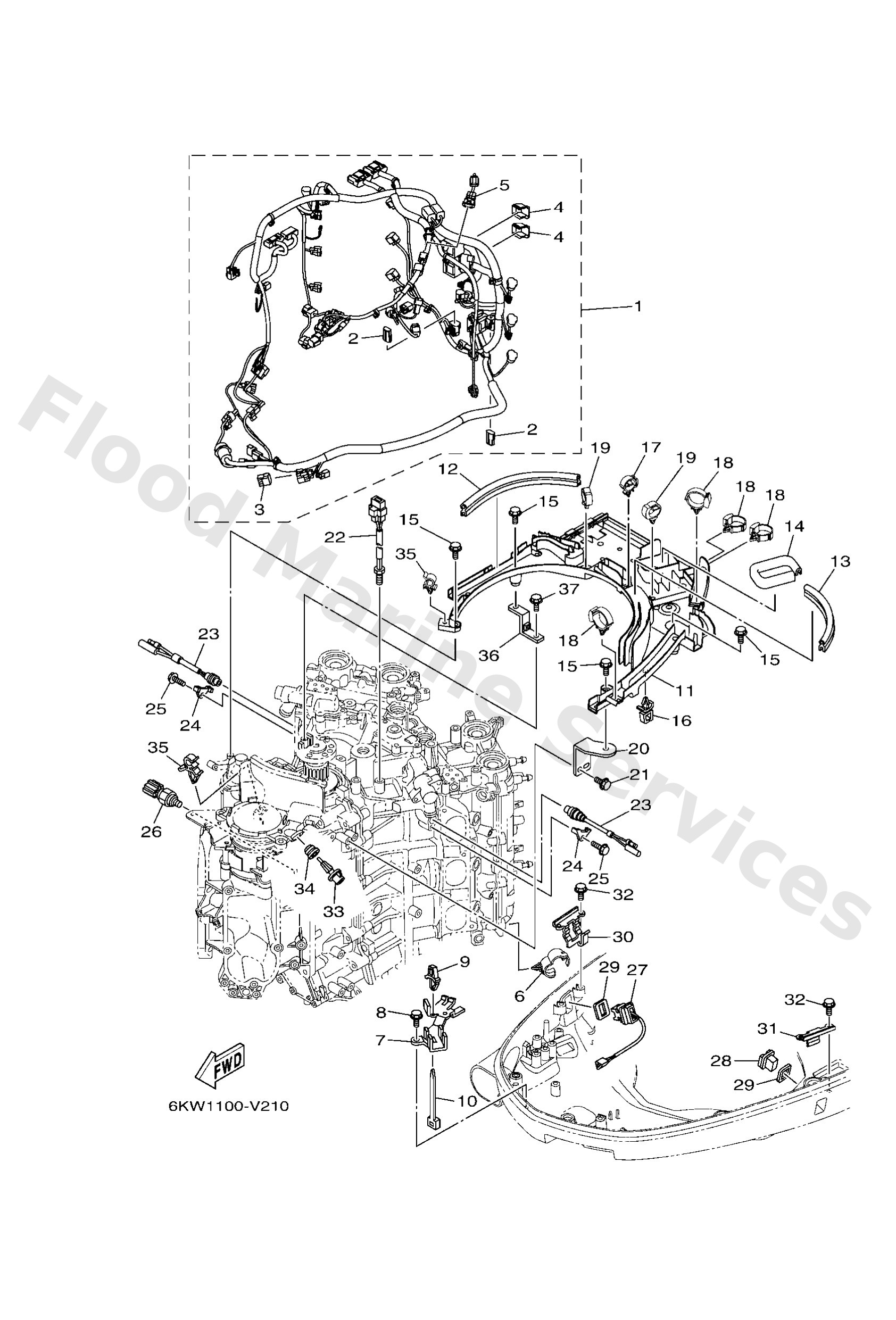

Diagram: ELECTRICAL 4

Diagram

Parts List

Reference
Description
Price


1
6KW8259003
Wire harness assembly
Loading…

↗
2
6AW8258200
Cap 1
Loading…

↗
3
6Y88258211
White cap 1 (4pin)
Loading…

↗
4
6EM8259900
Cover, connecter
Loading…

↗
5
6FM8198001
Diode assembly
Loading…

↗
6
9046420181
Clamp(4ap)
Loading…

↗
7
6CB8259400
Clamp
Loading…

↗
8
95D9506012
Bolt, flange deep recess
Loading…

↗
9
9046406001
Clamp
Loading…

↗
10
9046513M24
Band, switch cord
Loading…

↗
11
6CB8258901
Protecter, wire harness
Loading…

↗
12
6BG4261700
Damper, form
Loading…

↗
13
6CB4261700
Damper, form
Loading…

↗
14
6CB4262900
Seal
Loading…

↗
15
95D9506020
Bolt, flange deep recess
Loading…

↗
16
9046411121
Clamp(4gy)
Loading…

↗
17
9046418246
Clamp(4tr)
Loading…

↗
18
9046412183
Clamp(jn2)
Loading…

↗
20
6CB8238800
Plate
Loading…

↗
21
95D9506016
Bolt, flange deep recess
Loading…

↗
22
6CB8579000
Thermosensor assembly
Loading…

↗
23
6P28256001
Thermo switch assembly
Loading…

↗
24
6E98258800
Plate
Loading…

↗
26
6AW8365101
Sender, oil pressure
Loading…

↗
27
69J8256301
Trim & tilt switch assembly
Loading…

↗
28
69J4272301
Cover, bottom
Loading…

↗
29
69J8258701
Gasket
Loading…

↗
30
63P8361401
Bracket
Loading…

↗
31
6DA8361400
Bracket
Loading…

↗
33
63P8588600
Sensor, air temperature
Loading…

↗
34
6CE1443500
Grommet
Loading…

↗
35
9046409129
Clamp(3ld)
Loading…

↗
36
6CB8195200
Holder, relay
Loading…

↗
