Yamaha Outboard Parts - ELECTRICAL 4 - VF90B (2025) | Flood Marine
New Search
Parts
New Outboards
Home
VF90B (2025)
ELECTRICAL 4

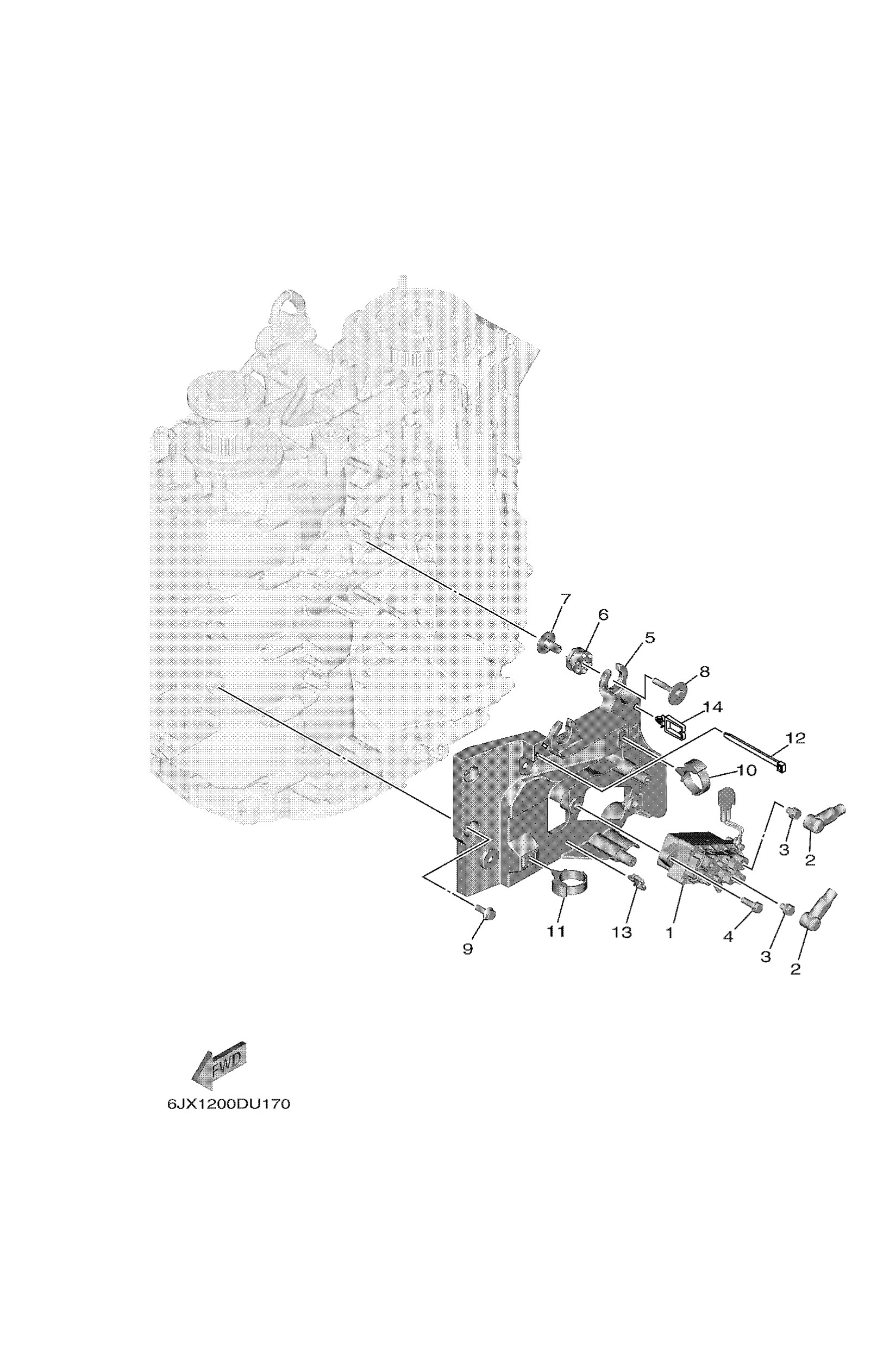

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
63PW819500
Relay assembly
Loading…
↗
2
6828211901
Cover, lead wire
Loading…
↗
3
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
4
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
5
6FP8195200
Holder, relay
Loading…
↗
6
68F8551601
Spacer
Loading…
↗
7
9038706176
Collar
Loading…
↗
8
68F8511900
Bolt
Loading…
↗
9
95D9506016
Bolt, flange deep recess
Loading…
↗
10
9046412183
Clamp(jn2)
Loading…
↗
12
9046513M11
Clamp (6e5)
Loading…
↗
13
9046411121
Clamp(4gy)
Loading…
↗
14
9046405141
Clamp(7ly)
Loading…
↗
