Z200NETO (2003)
ELECTRICAL 4

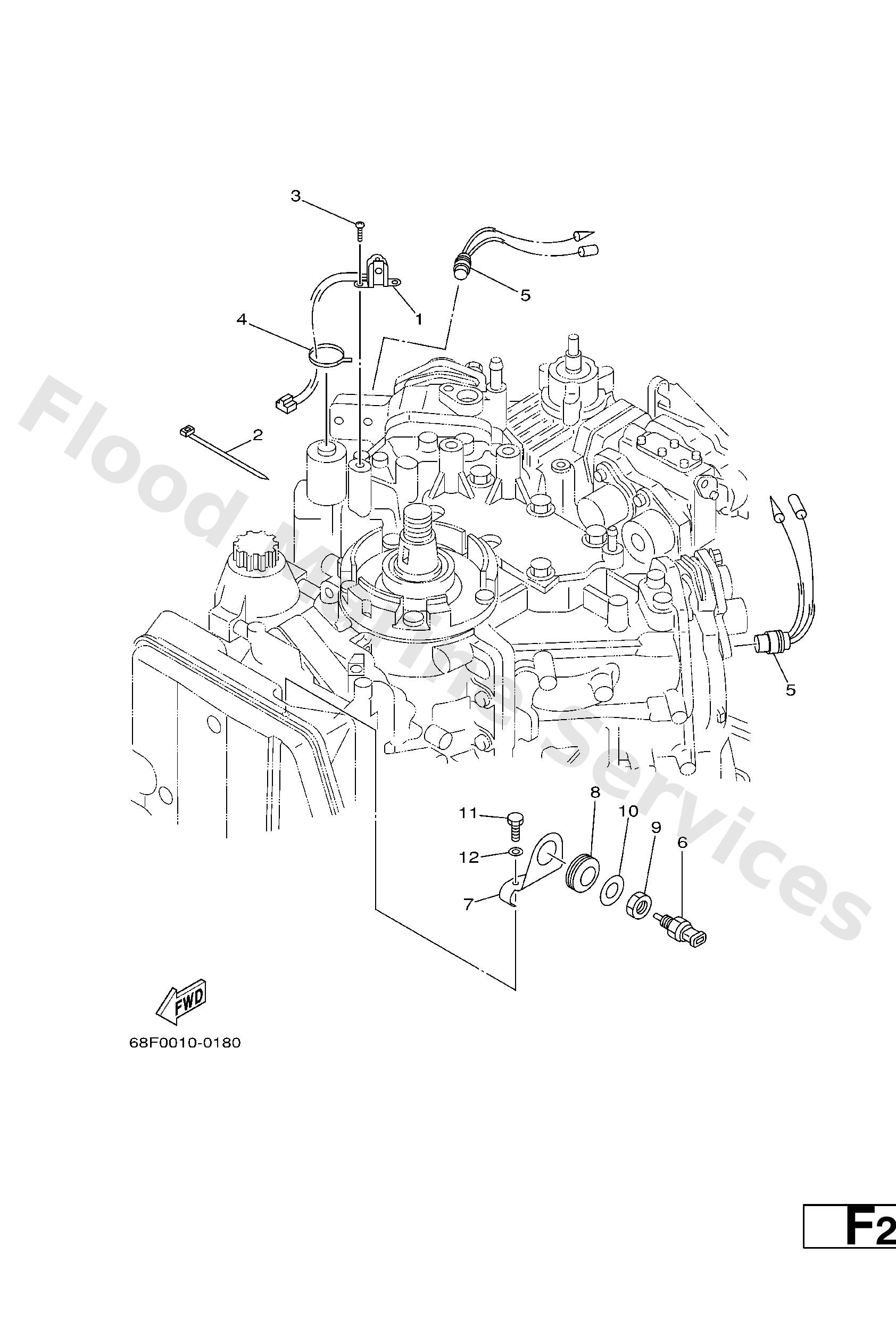

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
61A−85895−00
Crank position sender
Loading…
↗
2
90465−13M18
Clamp
Loading…
↗
3
97885−05012
Screw,pan head (646)
Loading…
↗
5
688−82560−10
Thermo switch assembly
Loading…
↗
6
65L−85886−00
Thermosensor
Loading…
↗
7
68F−8431R−00
Stay, Setting
Loading…
↗
8
90480−17M80
Grommet
Loading…
↗
9
90179−12M37
Nut
Loading…
↗
10
90201−12M08
Washer, Plate
Loading…
↗
11
97095−06016
Bolt, hexagon deep recess
Loading…
↗
12
92995−06600
Washer, plain (646)
Loading…
↗
