F115BET (2016)
ELECTRICAL 5

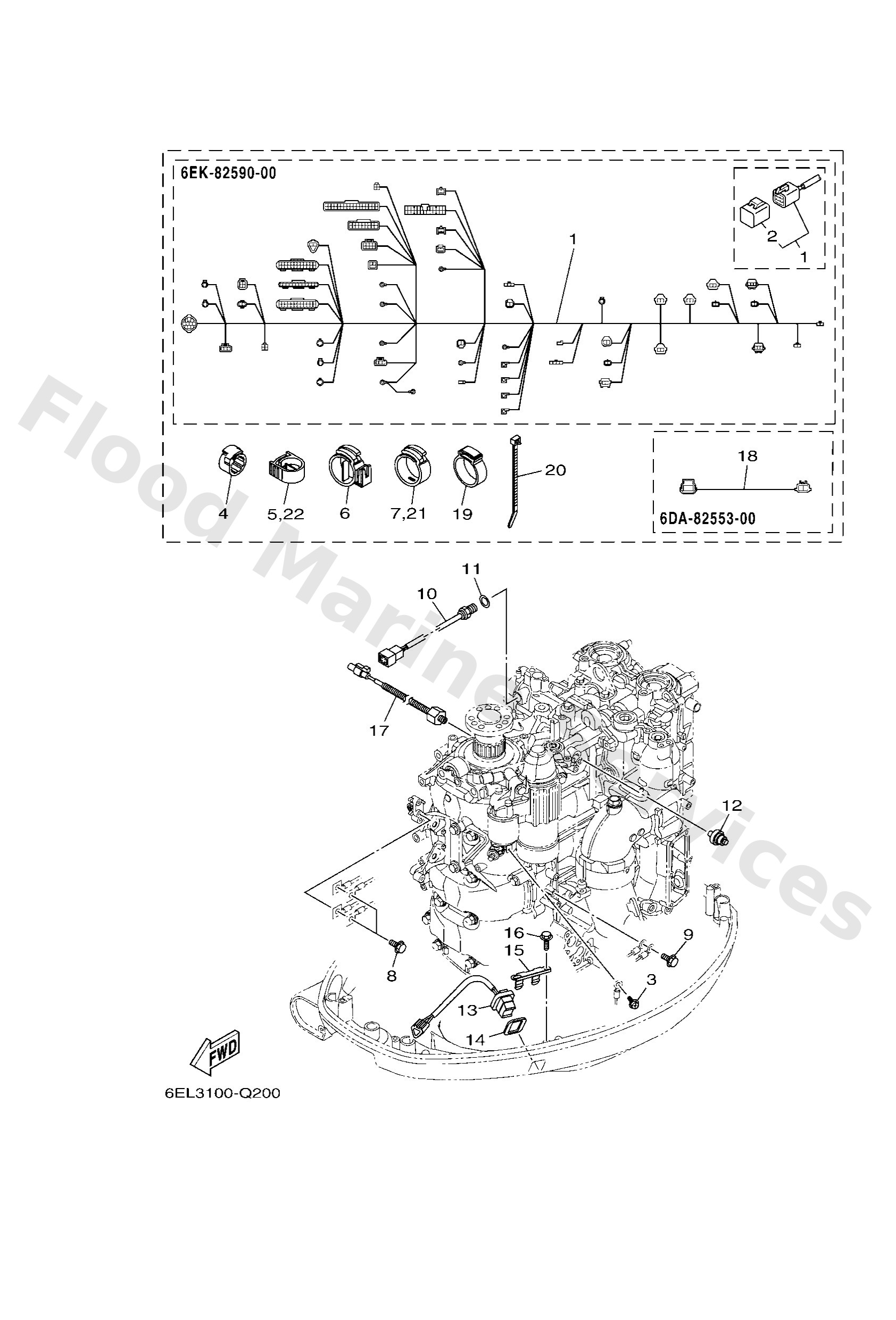

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
6EK8259000
Wire harness assembly
Loading…
↗
2
6Y88258211
White cap 1 (4pin)
Loading…
↗
3
9798504308
Screw, with washer
Loading…
↗
4
9046413227
Clamp
Loading…
↗
5
9046418004
Clamp
Loading…
↗
6
9046422005
Clamp
Loading…
↗
7
9046416001
Clamp
Loading…
↗
8
9759506516
Bolt, with washer(6r6)
Loading…
↗
10
6CJ8579000
Thermosensor assembly
Loading…
↗
11
9043014115
Gasket (663)
Loading…
↗
12
68V8250400
Oil pressure switch assembly
Loading…
↗
13
69J8256301
Trim & tilt switch assembly
Loading…
↗
14
69J8258700
Gasket
Loading…
↗
15
69J8361400
Bracket
Loading…
↗
16
9010906M86
Bolt
Loading…
↗
17
6CJ8578000
Sensor, knock
Loading…
↗
18
6DA8255300
Extension, wire lead
Loading…
↗
19
9046426001
Clamp
Loading…
↗
20
9046513M18
Clamp
Loading…
↗
