F130AET (2015)
ELECTRICAL 5

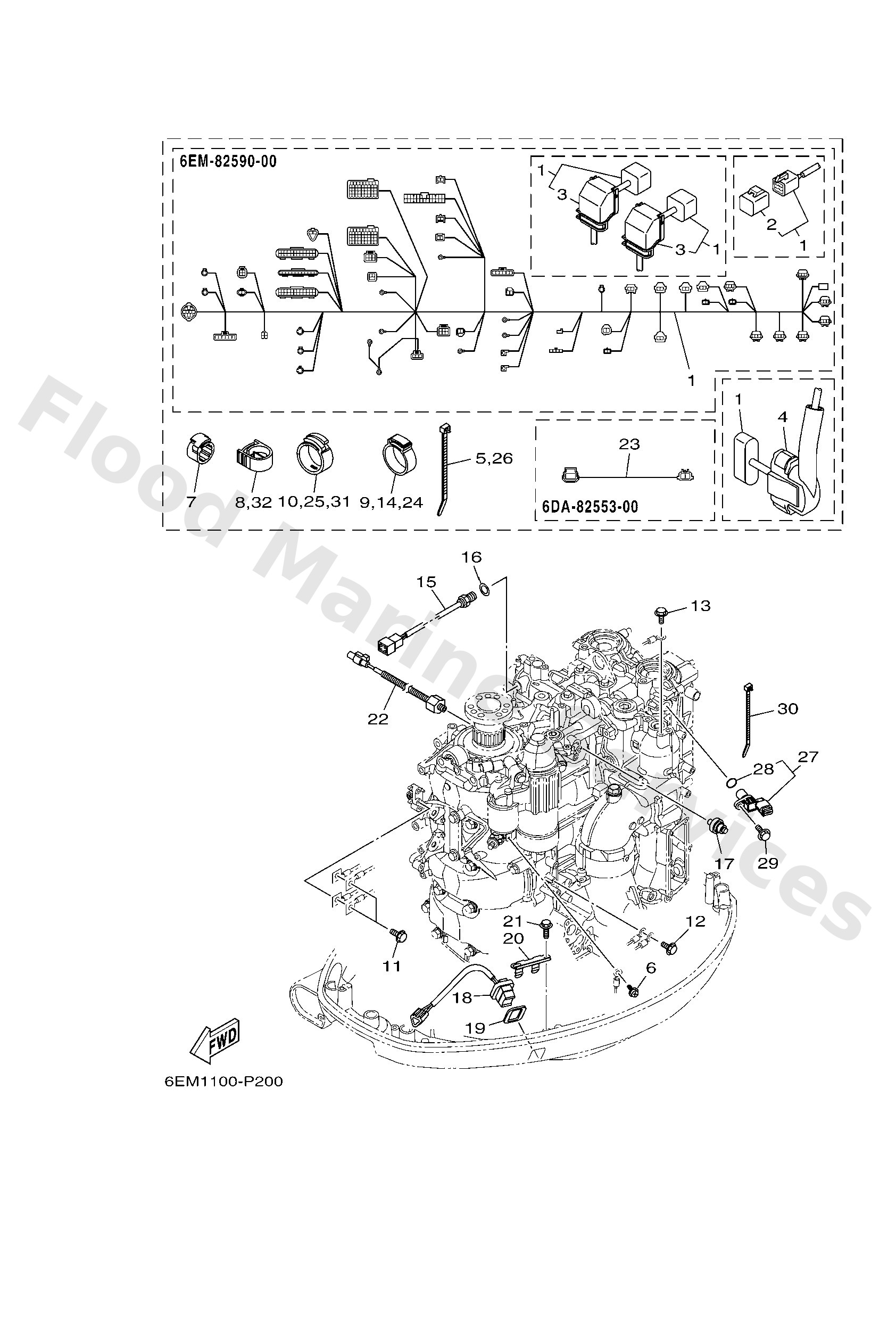

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
6EM8259000
Wire harness assembly
Loading…
↗
2
6Y88258211
White cap 1 (4pin)
Loading…
↗
3
6EM8259900
Cover, connecter
Loading…
↗
4
6EM8211900
Cover, Lead Wire
Loading…
↗
5
9046513M18
Clamp
Loading…
↗
6
9798504308
Screw, with washer
Loading…
↗
7
9046413227
Clamp
Loading…
↗
8
9046418004
Clamp
Loading…
↗
9
9046426001
Clamp
Loading…
↗
10
9046416001
Clamp
Loading…
↗
11
9759506516
Bolt, with washer(6r6)
Loading…
↗
13
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
15
6CJ8579000
Thermosensor assembly
Loading…
↗
16
9043014115
Gasket (663)
Loading…
↗
17
68V8250400
Oil pressure switch assembly
Loading…
↗
18
69J8256301
Trim & tilt switch assembly
Loading…
↗
19
69J8258700
Gasket
Loading…
↗
20
69J8361400
Bracket
Loading…
↗
21
9010906M86
Bolt
Loading…
↗
22
6CJ8578000
Sensor, knock
Loading…
↗
23
6DA8255300
Extension, wire lead
Loading…
↗
27
6P28589600
Sensor, cam position
Loading…
↗
28
6P28507500
O-ring
Loading…
↗
29
9589506016
Bolt, flange deep recess
Loading…
↗
30
9046511M59
Clamp(63m)
Loading…
↗
