F175AET (2016)
ELECTRICAL 5

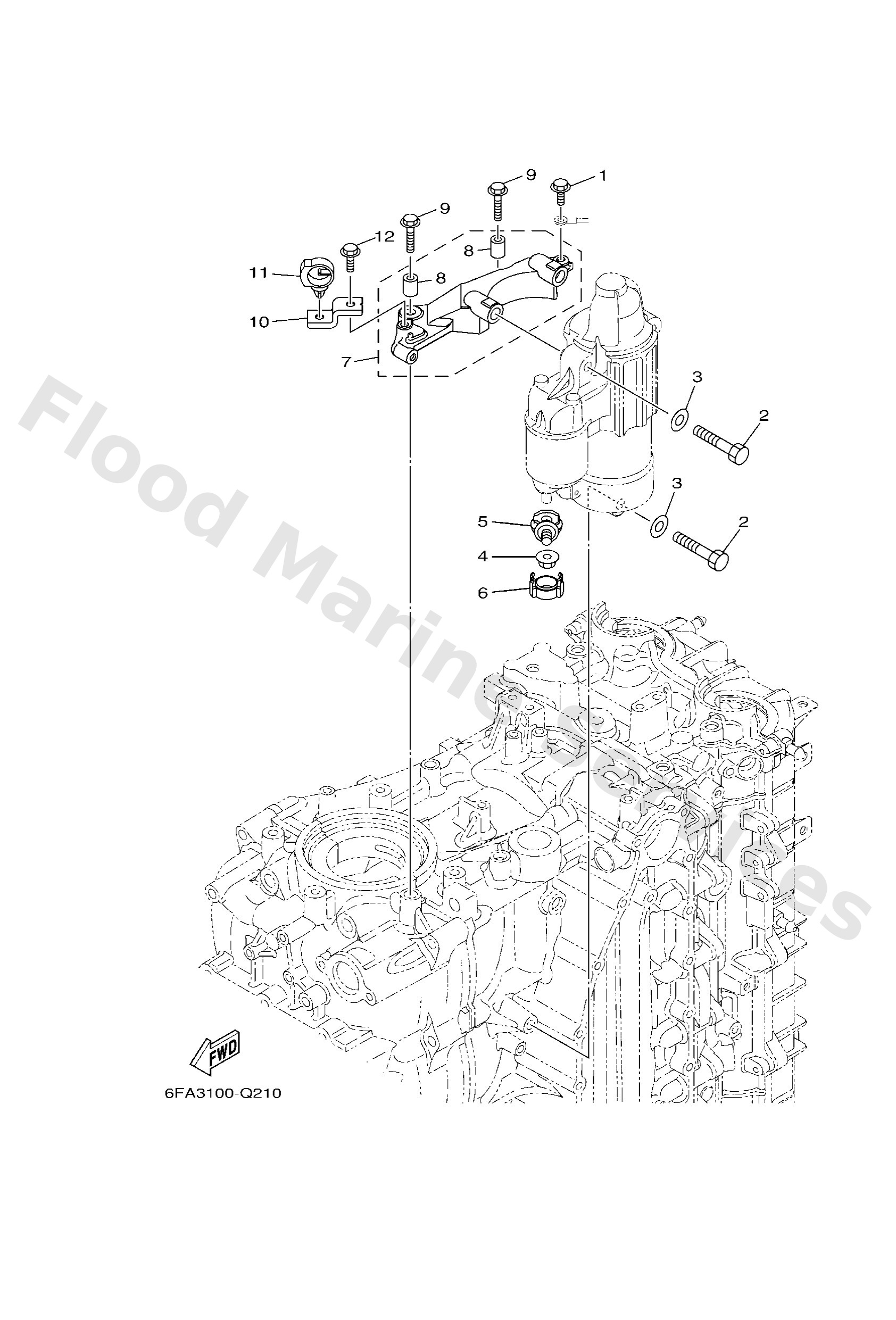

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
9759506516
Bolt, with washer(6r6)
Loading…
↗
2
9701308045
Bolt
Loading…
↗
3
9290308600
Washer, plain (663)
Loading…
↗
4
9017908003
Nut
Loading…
↗
5
60V8192500
Terminal
Loading…
↗
6
68F8258200
Cover, wire harness
Loading…
↗
7
6DA8182200
Bracket, starting motor
Loading…
↗
8
9959010114
Pin, dowel
Loading…
↗
9
9010508M87
Bolt, washer based
Loading…
↗
10
6DA8238800
Plate
Loading…
↗
11
9046420181
Clamp(4ap)
Loading…
↗
12
9589506016
Bolt, flange deep recess
Loading…
↗
