F25GE (2021)
ELECTRICAL 5

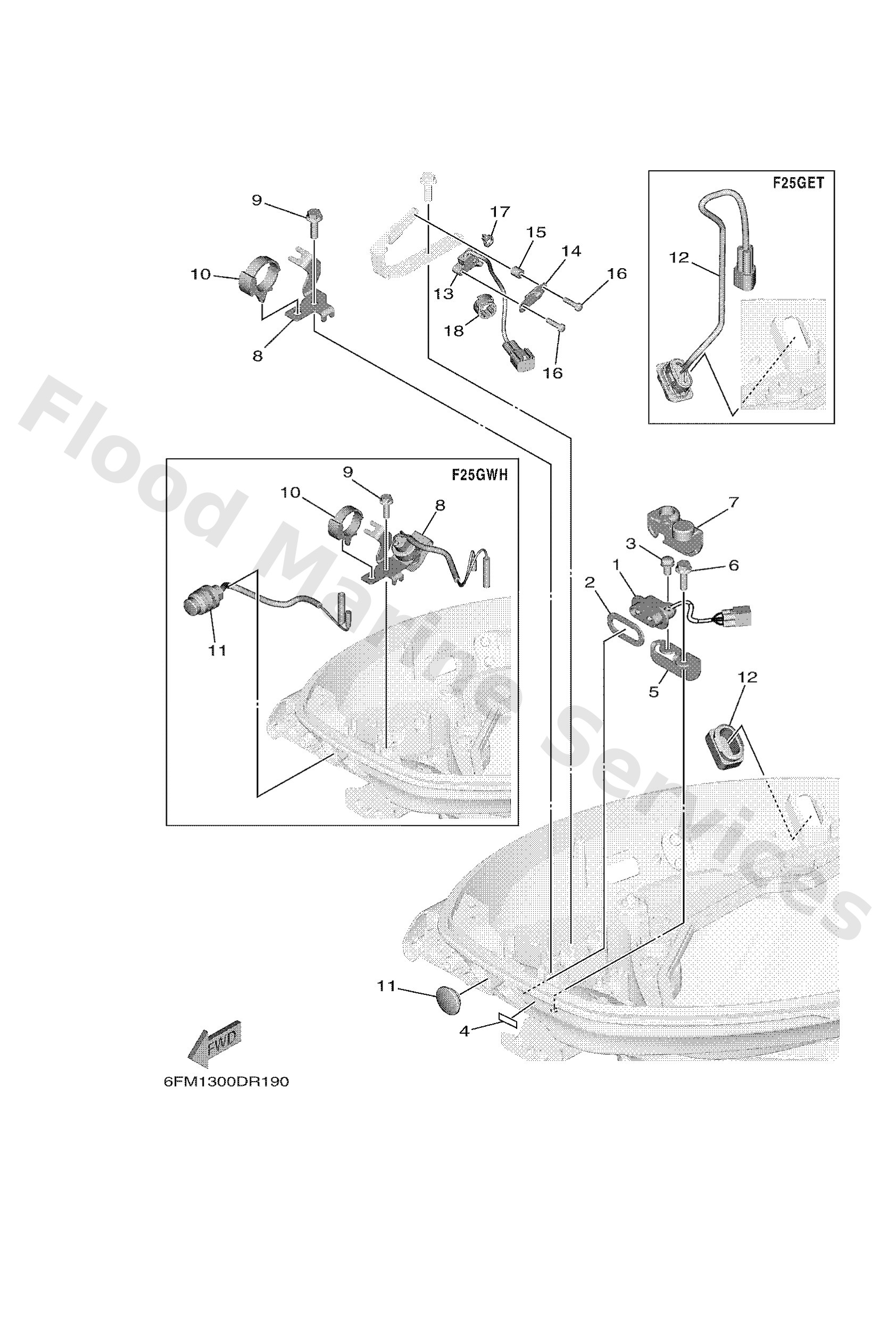

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
62Y8430100
Pilot light assembly 1
Loading…
↗
2
6FM8358900
Gasket
Loading…
↗
3
9798506212
Screw, with washer(6h3)
Loading…
↗
4
67C8541500
Mark, signal lamp
Loading…
↗
5
6FM8238800
Plate
Loading…
↗
6
9010906M86
Bolt
Loading…
↗
7
6FM8235501
Grommet
Loading…
↗
8
6FM8254000
Neutral switch assembly
Loading…
↗
8
6FM1577400
Stay 4
Loading…
↗
10
9046412183
Clamp(jn2)
Loading…
↗
11
6G14272501
Grommet
Loading…
↗
11
65W8187000
Starting switch assembly
Loading…
↗
12
6FM4272301
Cover, bottom
Loading…
↗
12
6FM8256301
Trim & tilt switch assembly
Loading…
↗
13
60V8259F00
Switch assembly
Loading…
↗
14
6FM8258800
Plate
Loading…
↗
15
9038704001
Collar
Loading…
↗
16
9798504116
Screw, with washer(61b)
Loading…
↗
17
9046511M10
Clamp
Loading…
↗
18
9046413227
Clamp
Loading…
↗
