F300DET (2021)
ELECTRICAL 5

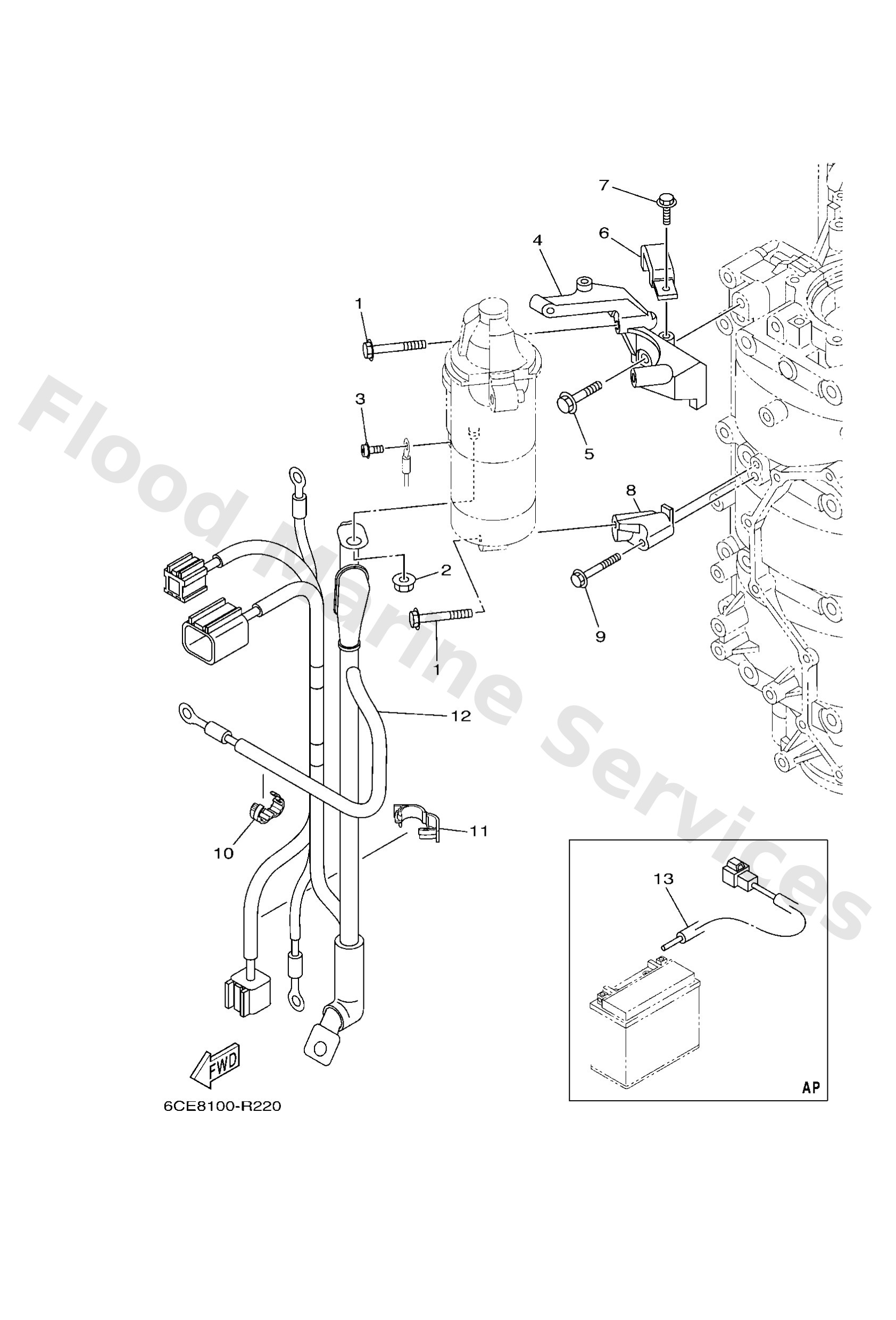

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
9751308545
Bolt, with washer
Loading…
↗
2
9017908003
Nut
Loading…
↗
3
9798504308
Screw, with washer
Loading…
↗
4
6CB8182202
Bracket, starting motor
Loading…
↗
5
9010508M87
Bolt, washer based
Loading…
↗
6
6CB8144300
Clamp, lead 1
Loading…
↗
7
95D9506016
Bolt, flange deep recess
Loading…
↗
8
6CB81823A0
Stay, starting motor
Loading…
↗
9
9010506151
Bolt, flange
Loading…
↗
10
9046413227
Clamp
Loading…
↗
11
9046418004
Clamp
Loading…
↗
12
6CE8259M00
Wire harness assembly 2
Loading…
↗
13
6KW8194900
AP
Wire, lead (isolator cable)
Loading…
↗
