F30BEHD (2009)
ELECTRICAL 5

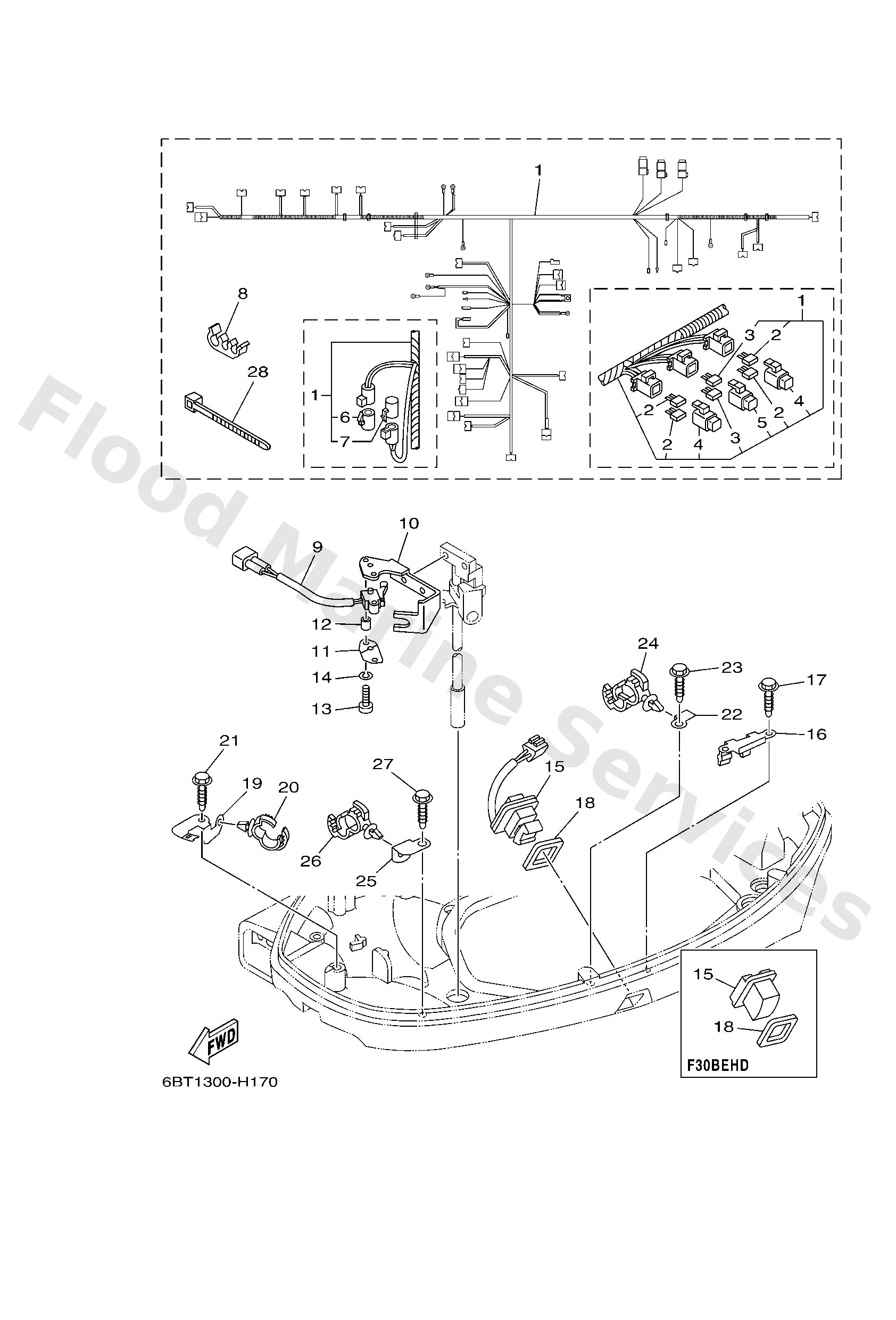

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
6BG8259011
Wire harness assembly
Loading…
↗
1
6BG8259001
Wire harness assembly
Loading…
↗
2
67F8215100
Fuse
Loading…
↗
3
67F8215110
Fuse
Loading…
↗
4
67F8215B10
Cap (yellow)
Loading…
↗
5
67F8215B20
Cap (green)
Loading…
↗
6
6P28258200
FOR 6BG-82590-01
Cap 1 (female)
Loading…
↗
7
6P28258210
FOR 6BG-82590-01
Cap 1 (male)
Loading…
↗
8
9046411008
Clamp
Loading…
↗
9
60V8259F00
Switch assembly
Loading…
↗
10
6C58255401
Stay, neutral switch
Loading…
↗
11
61A8258801
Plate
Loading…
↗
12
9038704001
Collar
Loading…
↗
13
9788504016
Screw, panhead (796)
Loading…
↗
14
9299504100
Ybs67-4 washer, spring
Loading…
↗
15
69J8256300
Trim & tilt switch assembly
Loading…
↗
15
69J42723008D
Cover, bottom
Loading…
↗
16
6BG8361400
Bracket
Loading…
↗
17
9010906M86
Bolt
Loading…
↗
18
69J8258700
Gasket
Loading…
↗
19
6BG4281100
Stay
Loading…
↗
20
9046420181
Clamp(4ap)
Loading…
↗
22
6BG4274300
Bracket
Loading…
↗
25
63P4275600
Stay, clamp
Loading…
↗
28
9046513M97
Clamp
Loading…
↗
