F350AET (2014)
ELECTRICAL 5

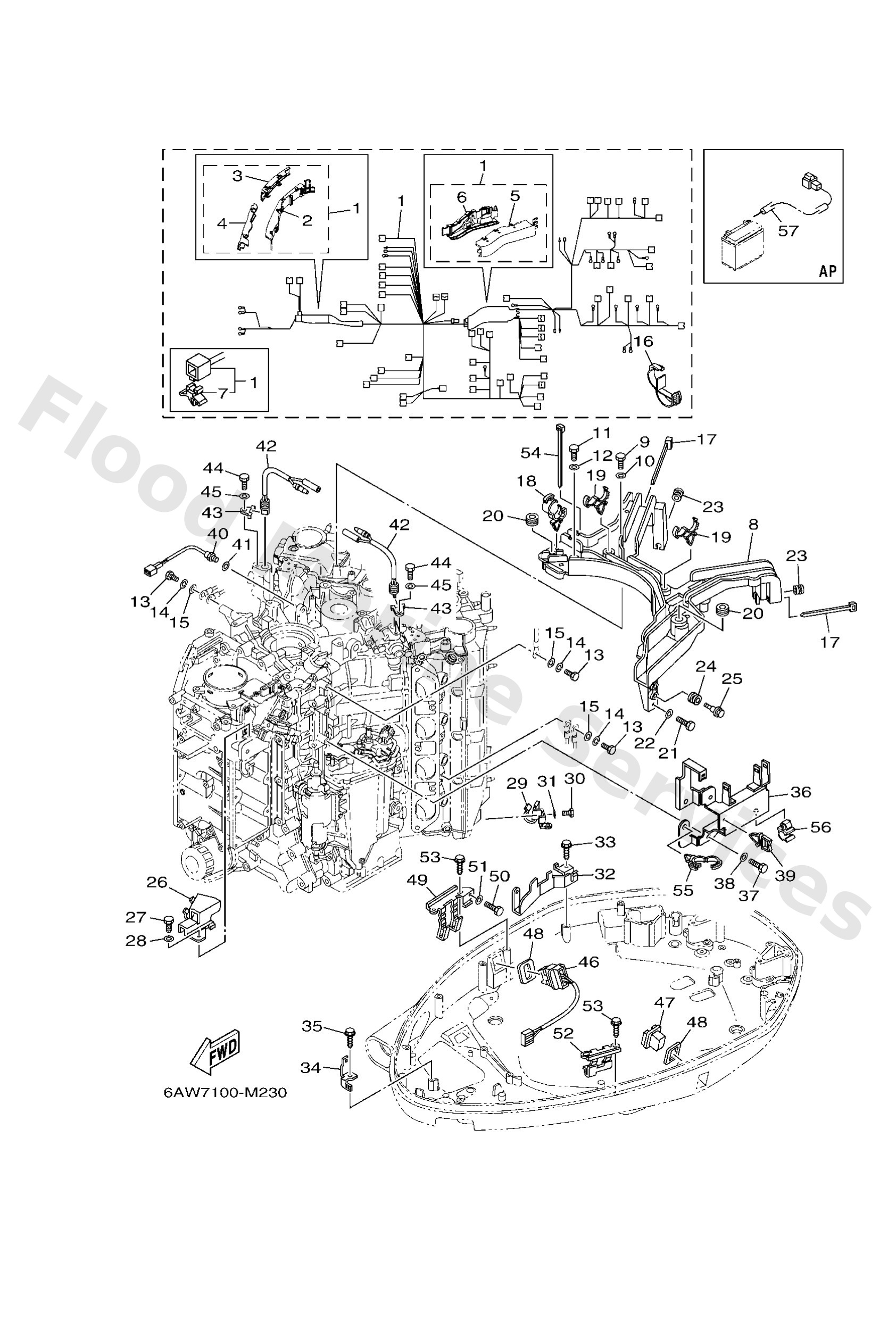

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
6AW8259020
Wire harness assembly
Loading…
↗
2
6AW8A7A100
Protector 1
Loading…
↗
3
6AW8A7A200
Protector 2
Loading…
↗
4
6AW8A7A300
Protector 3
Loading…
↗
5
6AW8A7A400
Protector 4
Loading…
↗
6
6AW8A7A500
Protector 5
Loading…
↗
7
9046409M47
Clamp(65j)
Loading…
↗
8
6AW8258901
Protecter, wire harness
Loading…
↗
9
9709506035
Bolt(j52)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
9709506025
Bolt
Loading…
↗
13
9709506016
Bolt, hexagon deep recess
Loading…
↗
14
9299506100
Washer(6a1)
Loading…
↗
16
9046425005
Clamp
Loading…
↗
17
9046513M18
Clamp
Loading…
↗
18
9046420181
Clamp(4ap)
Loading…
↗
19
9046418246
Clamp(4tr)
Loading…
↗
20
9048019368
Grommet(75v)
Loading…
↗
21
9709506012
Bolt(gh1)
Loading…
↗
23
9048012314
Grommet(3aa)
Loading…
↗
25
9010906MA1
Bolt
Loading…
↗
26
6AW8238800
Plate
Loading…
↗
27
9709506014
Bolt(gj3)
Loading…
↗
29
6AW8167700
Clamp 1
Loading…
↗
32
6AW8257G00
Clamp, cord
Loading…
↗
33
9010906M86
Bolt
Loading…
↗
34
6AW4274300
Bracket
Loading…
↗
36
6AW8184510
Plate
Loading…
↗
39
9046411121
Clamp(4gy)
Loading…
↗
40
61A8579000
Thermosensor assembly
Loading…
↗
41
9299010600
Washer, plate
Loading…
↗
42
6AW8256000
Thermo switch assembly
Loading…
↗
43
6E98258800
Plate
Loading…
↗
46
6AW8256300
Trim & tilt switch assembly
Loading…
↗
47
69J4272301
Cover, bottom
Loading…
↗
48
69J8258700
Gasket
Loading…
↗
49
6AX8361400
Bracket
Loading…
↗
52
63P8361401
Bracket
Loading…
↗
54
9046514M66
Clamp
Loading…
↗
56
9046408051
Clamp (26h)
Loading…
↗
57
69J8194902
AP
Wire, lead (isolator, 3.8m )
Loading…
↗
