F40FEHD (2013)
ELECTRICAL 5

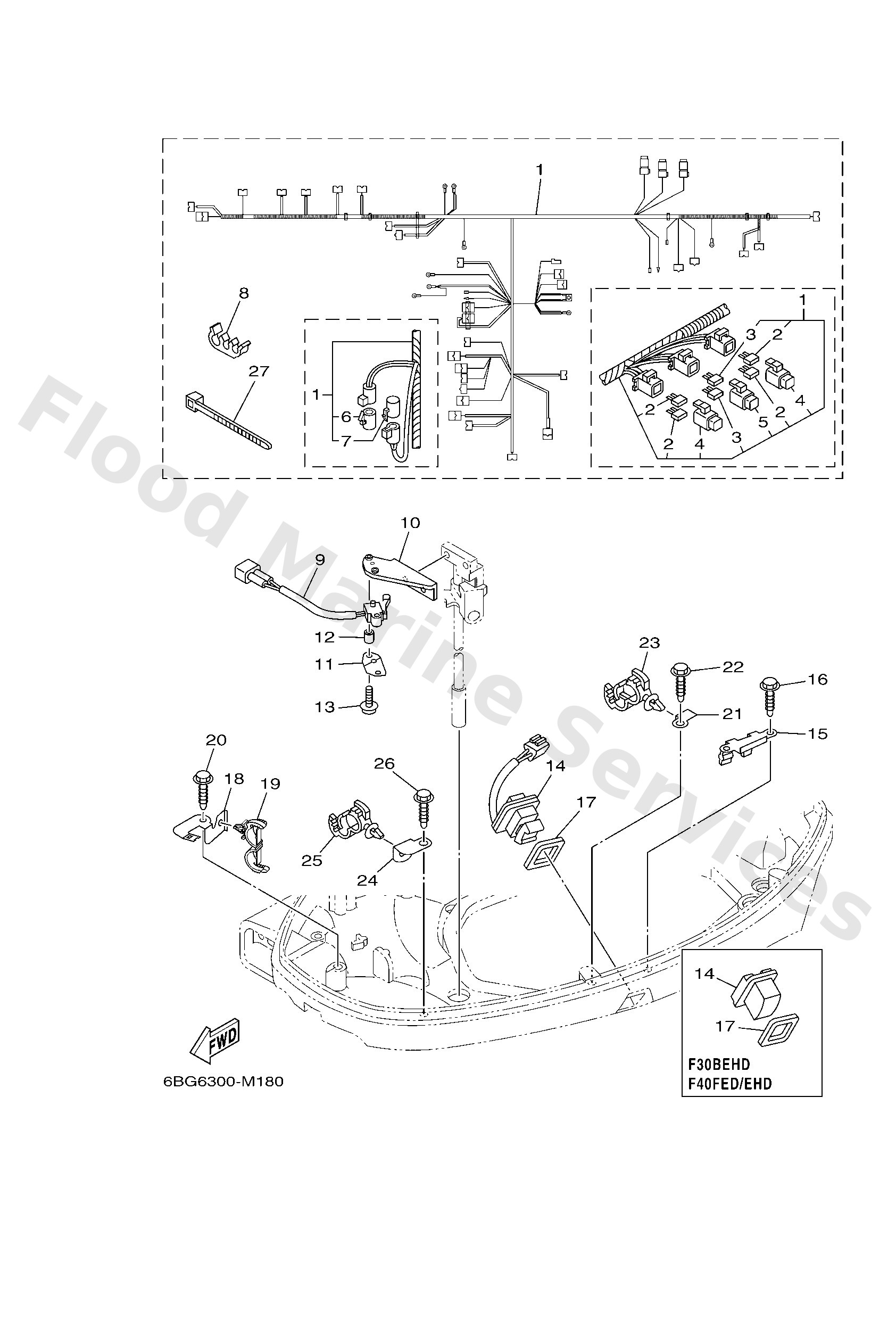

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
6BG8259013
Wire harness assembly
Loading…
↗
1
6BG8259003
Wire harness assembly
Loading…
↗
2
67F8215100
Fuse
Loading…
↗
3
67F8215110
Fuse
Loading…
↗
4
67F8215B10
Cap (yellow)
Loading…
↗
5
67F8215B20
Cap (green)
Loading…
↗
6
6P28258200
FOR 6BG-82590-03
Cap 1 (female)
Loading…
↗
7
6P28258210
FOR 6BG-82590-03
Cap 1 (male)
Loading…
↗
8
9046411008
Clamp
Loading…
↗
9
60V8259F00
Switch assembly
Loading…
↗
10
6CJ8255400
Stay, neutral switch
Loading…
↗
11
61A8258801
Plate
Loading…
↗
12
9038704001
Collar
Loading…
↗
13
9798504116
Screw, with washer(61b)
Loading…
↗
14
69J4272301
Cover, bottom
Loading…
↗
14
69J8256300
Trim & tilt switch assembly
Loading…
↗
15
6BG8361400
Bracket
Loading…
↗
16
9010906M86
Bolt
Loading…
↗
17
69J8258700
Gasket
Loading…
↗
18
6BG4281101
Stay
Loading…
↗
19
9046418205
Clamp(4tr)
Loading…
↗
21
6BG4274300
Bracket
Loading…
↗
23
9046420181
Clamp(4ap)
Loading…
↗
24
63P4275600
Stay, clamp
Loading…
↗
27
9046513M97
Clamp
Loading…
↗
