Yamaha Outboard Parts - ELECTRICAL 5 - FL115BET (2019) | Flood Marine

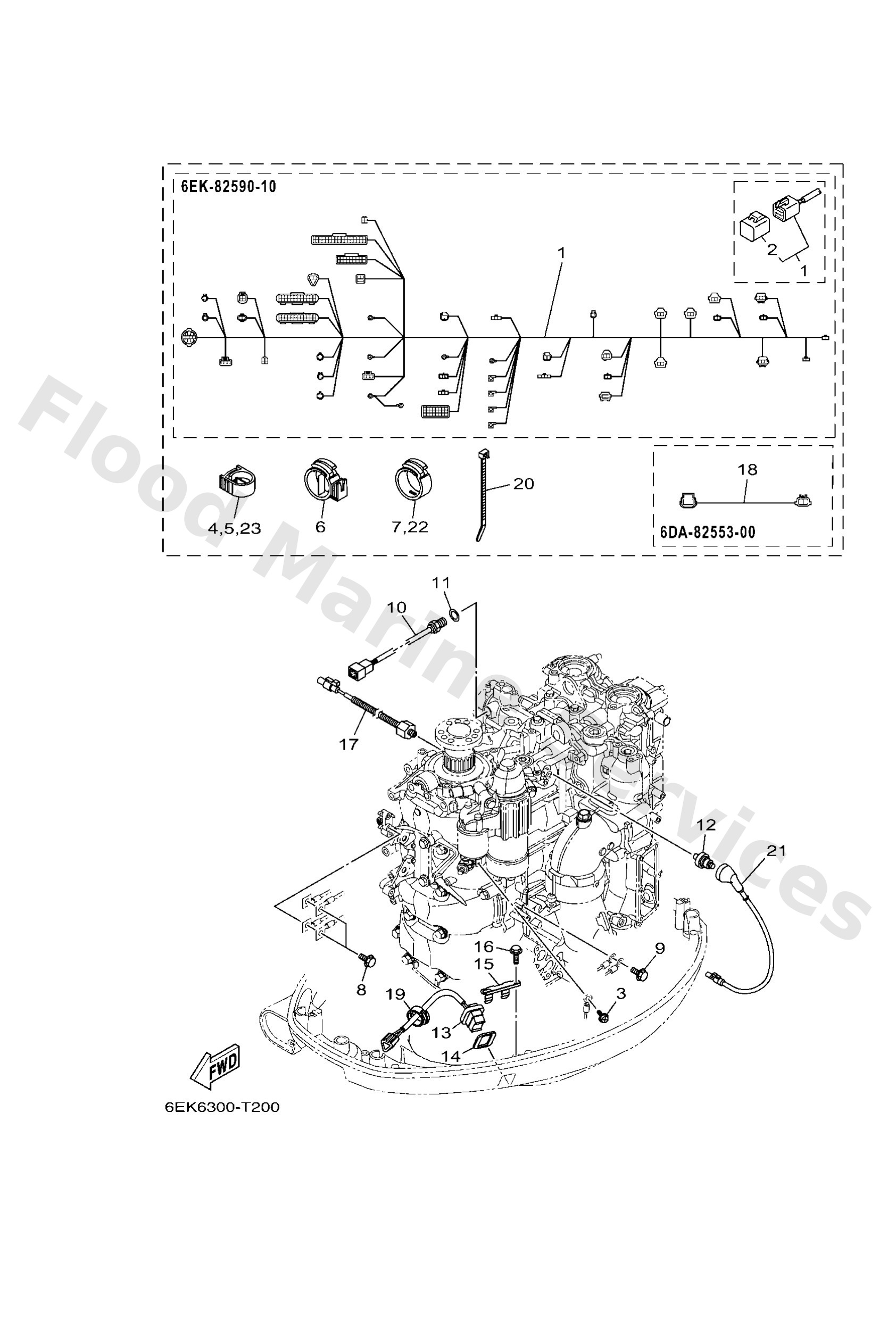

Diagram: ELECTRICAL 5

Diagram

Parts List

Reference
Description
Price


1
6EK8259010
Wire harness assembly
Loading…

↗
2
6Y88258211
White cap 1 (4pin)
Loading…

↗
3
9798504308
Screw, with washer
Loading…

↗
4
9046418004
Clamp
Loading…

↗
6
9046422005
Clamp
Loading…

↗
7
9046416001
Clamp
Loading…

↗
8
97E9506516
Bolt, hexagon w/w deep recess
Loading…

↗
10
6CJ8579000
Thermosensor assembly
Loading…

↗
11
9043014115
Gasket (663)
Loading…

↗
12
68V8250400
Oil pressure switch assembly
Loading…

↗
13
69J8256301
Trim & tilt switch assembly
Loading…

↗
14
69J8258700
Gasket
Loading…

↗
15
69J8361400
Bracket
Loading…

↗
16
9010906M86
Bolt
Loading…

↗
17
6CJ8578000
Sensor, knock
Loading…

↗
18
6DA8255300
Extension, wire lead
Loading…

↗
20
9046513M18
Clamp
Loading…

↗
21
6EK8255310
Extension, wire lead
Loading…

↗
