FL175CET (2019)
ELECTRICAL 5

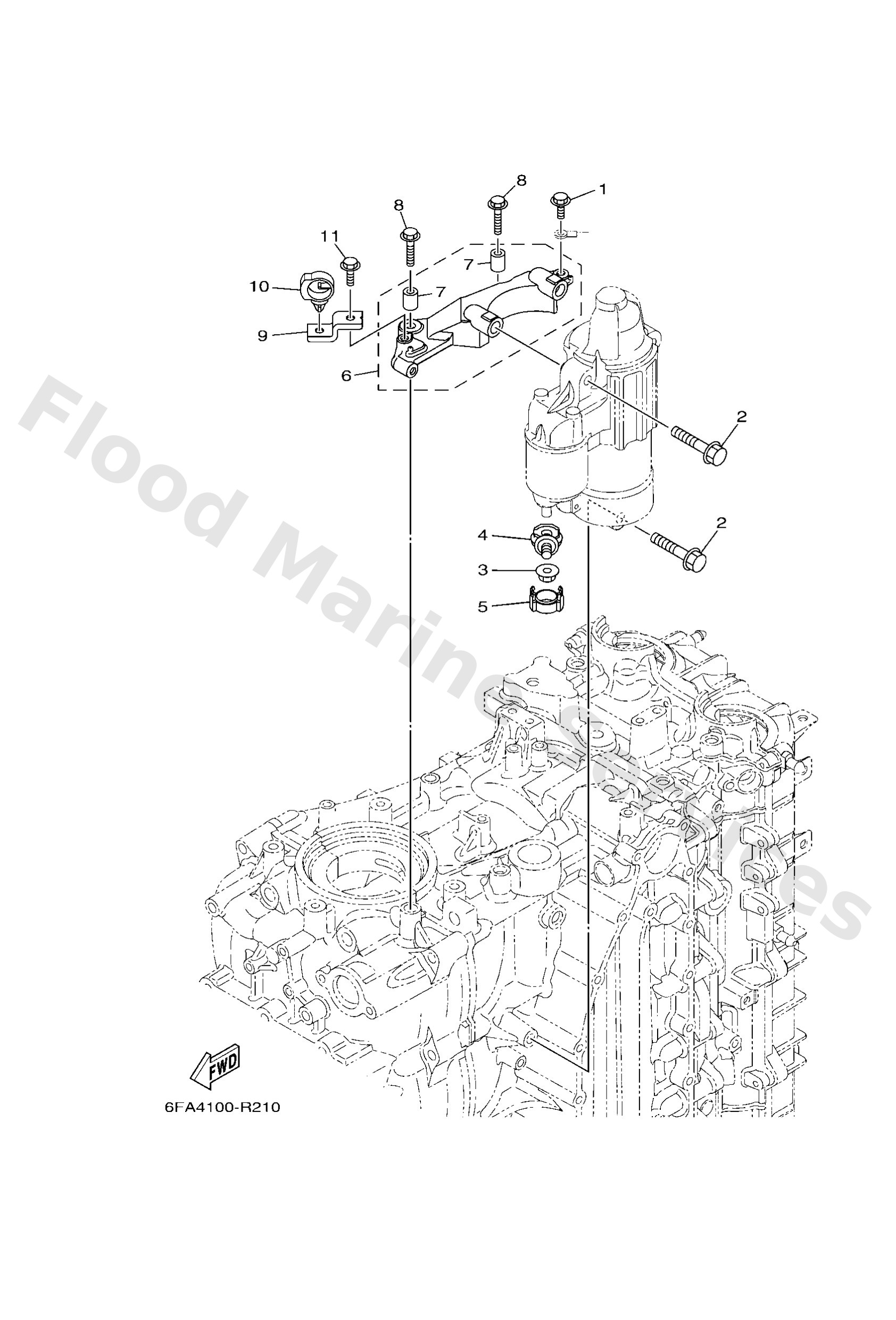

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
2
9751308545
Bolt, with washer
Loading…
↗
3
9017908003
Nut
Loading…
↗
4
60V8192500
Terminal
Loading…
↗
5
68F8258200
Cover, wire harness
Loading…
↗
6
6DA8182200
Bracket, starting motor
Loading…
↗
7
9959010114
Pin, dowel
Loading…
↗
8
9010508M87
Bolt, washer based
Loading…
↗
9
6DA8238800
Plate
Loading…
↗
10
9046420181
Clamp(4ap)
Loading…
↗
11
95D9506016
Bolt, flange deep recess
Loading…
↗
