FL300AET (2009)
ELECTRICAL 5

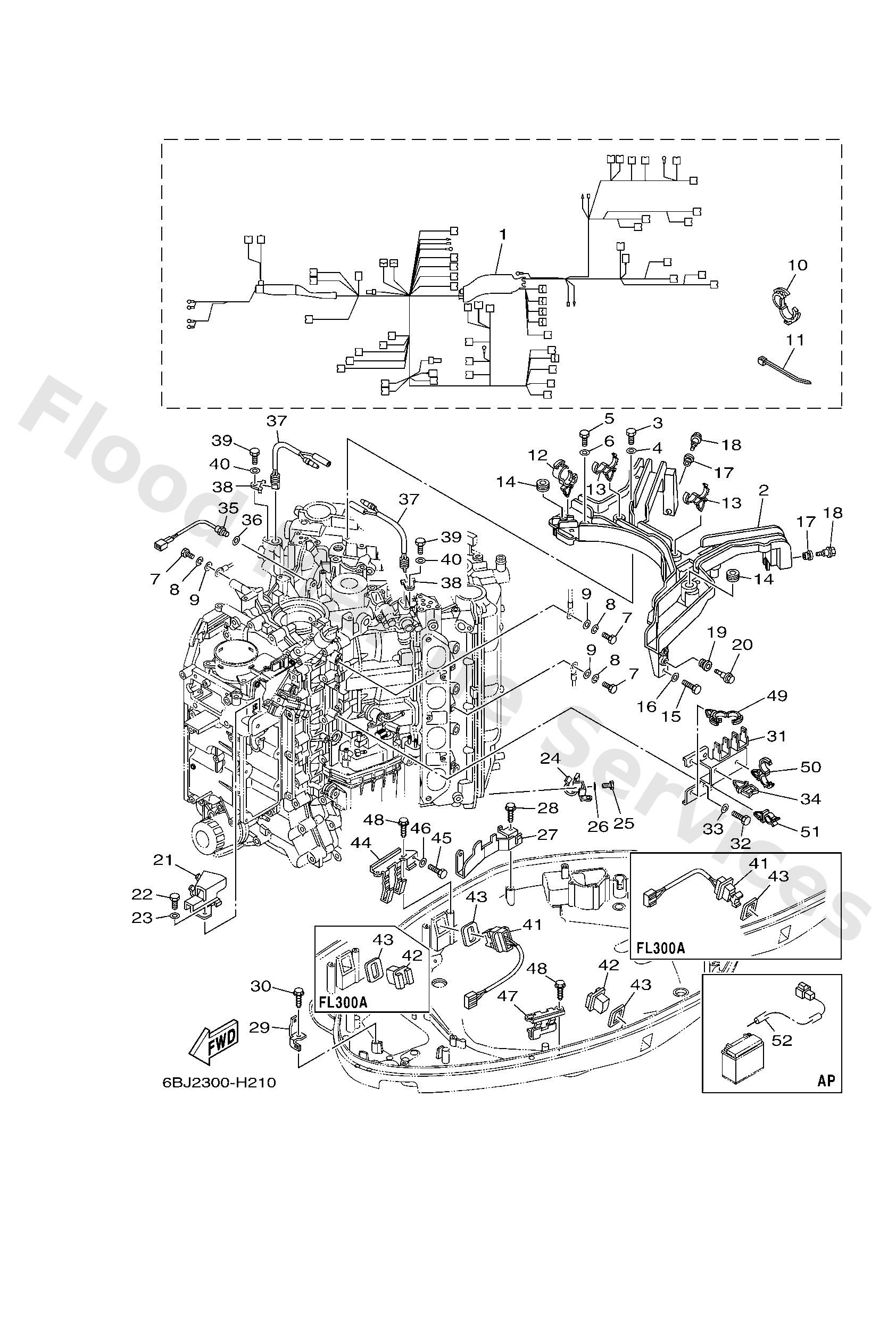

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
6AW8259001
Wire Harness assembly
Loading…
↗
2
6AW8258900
Protecter, wire harness
Loading…
↗
3
9709506035
Bolt(j52)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9709506025
Bolt
Loading…
↗
7
9709506016
Bolt, hexagon deep recess
Loading…
↗
8
9299506100
Washer(6a1)
Loading…
↗
10
9046430003
Clamp
Loading…
↗
11
9046513M18
Clamp
Loading…
↗
12
9046420181
Clamp(4ap)
Loading…
↗
13
9046418246
Clamp(4tr)
Loading…
↗
14
9048019368
Grommet(75v)
Loading…
↗
15
9709506012
Bolt(gh1)
Loading…
↗
17
9048012072
Grommet(53y)
Loading…
↗
18
9010906MA1
Bolt
Loading…
↗
21
6AW8238800
Plate
Loading…
↗
22
9709506014
Bolt(gj3)
Loading…
↗
24
6AW8167700
Clamp 1
Loading…
↗
27
6AW8257G00
Clamp, cord
Loading…
↗
28
9010906M86
Bolt
Loading…
↗
29
6AW4274300
Bracket
Loading…
↗
31
6AW8184500
Plate
Loading…
↗
34
9046411121
Clamp(4gy)
Loading…
↗
35
61A8579000
Thermosensor assembly
Loading…
↗
36
9299010600
Washer, plate
Loading…
↗
37
6AW8256000
Thermo switch assembly
Loading…
↗
38
6E98258800
Plate
Loading…
↗
41
6AW8256300
Trim & tilt switch assembly
Loading…
↗
42
69J42723008D
Cover, bottom
Loading…
↗
43
69J8258700
Gasket
Loading…
↗
44
6AX8361400
Bracket
Loading…
↗
47
63P8361400
Bracket
Loading…
↗
51
9046409008
Clamp
Loading…
↗
52
69J8194902
AP
Wire, lead (isolator, 3.8m )
