Yamaha Outboard Parts - ELECTRICAL 5 - FL300BET (2011) | Flood Marine

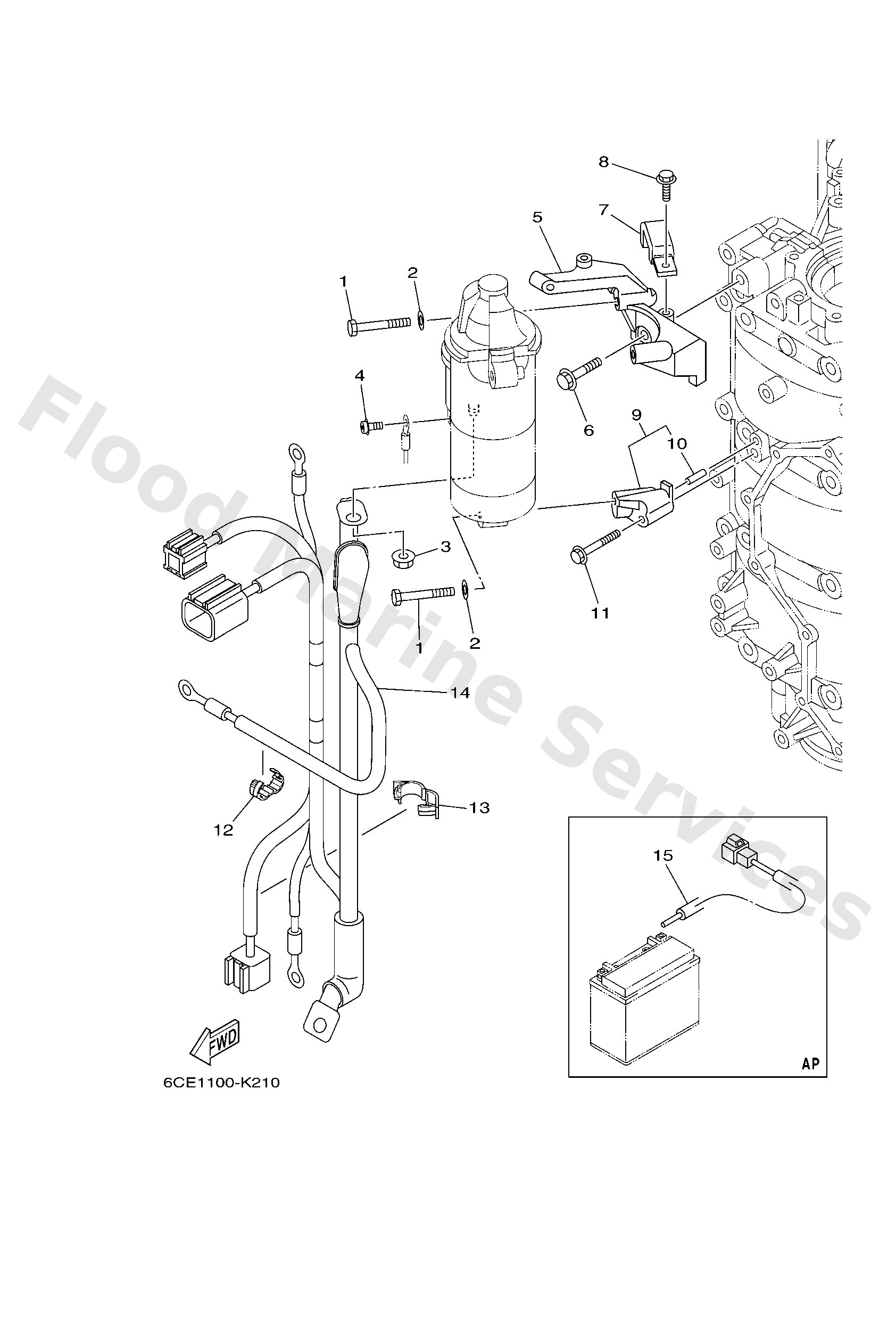

Diagram: ELECTRICAL 5

Diagram

Parts List

Reference
Description
Price


1
9701308045
Bolt
Loading…

↗
2
9290308600
Washer, plain (663)
Loading…

↗
3
9017908003
Nut
Loading…

↗
4
9015904005
Screw, with washer
Loading…

↗
5
6CB8182200
Bracket, starting motor
Loading…

↗
6
9010508M87
Bolt, washer based
Loading…

↗
7
6CB8144300
Clamp, lead 1
Loading…

↗
8
9589506016
Bolt, flange deep recess
Loading…

↗
9
6CB8182300
Stay, starting motor
Loading…

↗
10
9360612019
Pin, dowel (614)
Loading…

↗
11
9010506151
Bolt, flange
Loading…

↗
12
9046413227
Clamp
Loading…

↗
13
9046418004
Clamp
Loading…

↗
14
6CE8259M00
Wire harness assembly 2
Loading…

↗
15
6CE8194900 AP
Wire, lead (isolator cable)
Loading…

↗
