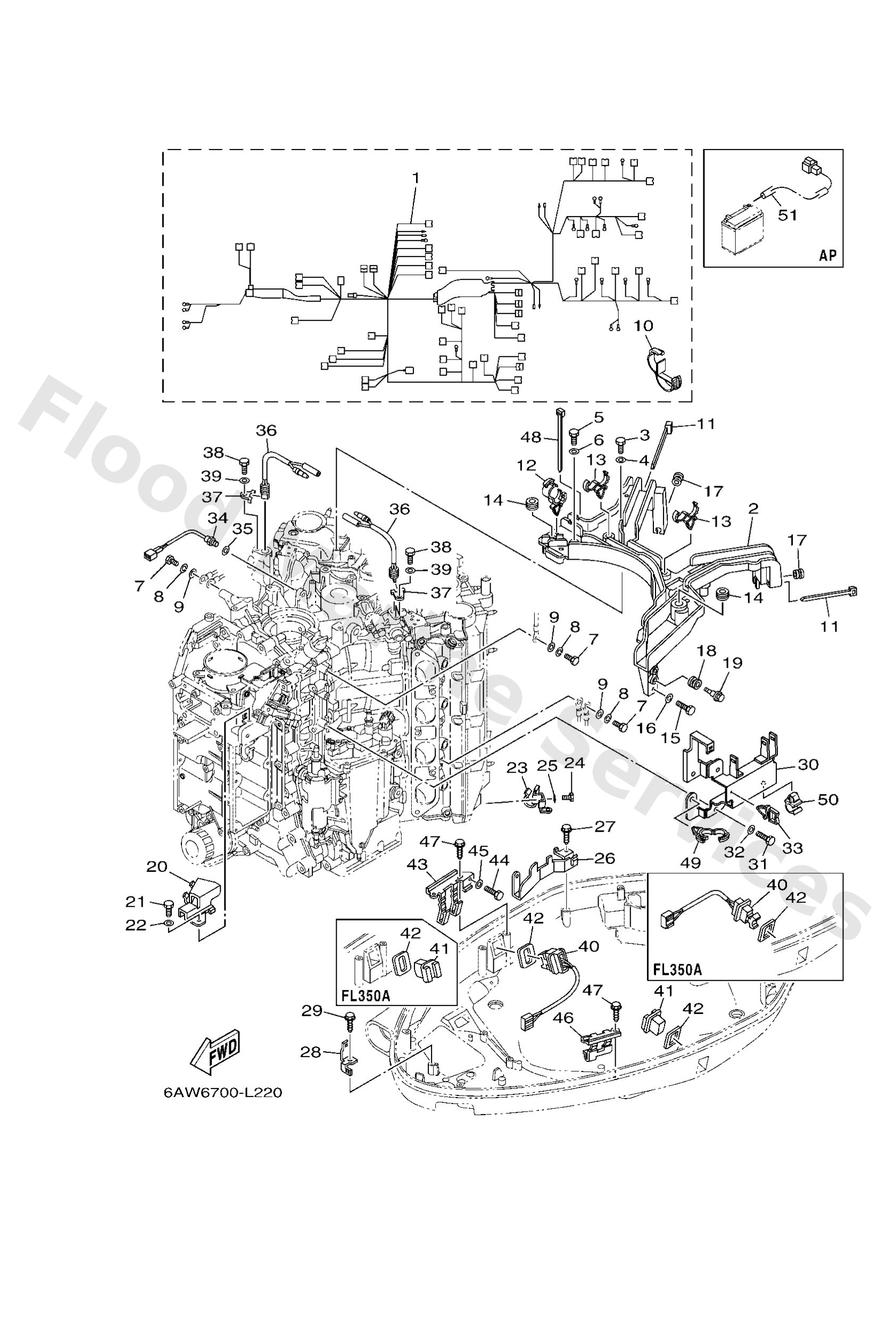

Diagram: ELECTRICAL 5

Diagram

Parts List

Reference
Description
Price


1
6AW8259020
Wire harness assembly
Loading…

↗
2
6AW8258901
Protecter, wire harness
Loading…

↗
3
9709506035
Bolt(j52)
Loading…

↗
4
9299506600
Washer, plain (646)
Loading…

↗
5
9709506025
Bolt
Loading…

↗
7
9709506016
Bolt, hexagon deep recess
Loading…

↗
8
9299506100
Washer(6a1)
Loading…

↗
10
9046425005
Clamp
Loading…

↗
11
9046513M18
Clamp
Loading…

↗
12
9046420181
Clamp(4ap)
Loading…

↗
13
9046418246
Clamp(4tr)
Loading…

↗
14
9048019368
Grommet(75v)
Loading…

↗
15
9709506012
Bolt(gh1)
Loading…

↗
17
9048012314
Grommet(3aa)
Loading…

↗
19
9010906MA1
Bolt
Loading…

↗
20
6AW8238800
Plate
Loading…

↗
21
9709506014
Bolt(gj3)
Loading…

↗
23
6AW8167700
Clamp 1
Loading…

↗
26
6AW8257G00
Clamp, cord
Loading…

↗
27
9010906M86
Bolt
Loading…

↗
28
6AW4274300
Bracket
Loading…

↗
30
6AW8184510
Plate
Loading…

↗
33
9046411121
Clamp(4gy)
Loading…

↗
34
61A8579000
Thermosensor assembly
Loading…

↗
35
9299010600
Washer, plate
Loading…

↗
36
6AW8256000
Thermo switch assembly
Loading…

↗
37
6E98258800
Plate
Loading…

↗
40
6AW8256300
Trim & tilt switch assembly
Loading…

↗
41
69J4272301
Cover, bottom
Loading…

↗
42
69J8258700
Gasket
Loading…

↗
43
6AX8361400
Bracket
Loading…

↗
46
63P8361401
Bracket
Loading…

↗
48
9046514M66
Clamp
Loading…

↗
50
9046408051
Clamp (26h)
Loading…

↗
51
69J8194902 AP
Wire, lead (isolator, 3.8m )
Loading…

↗
