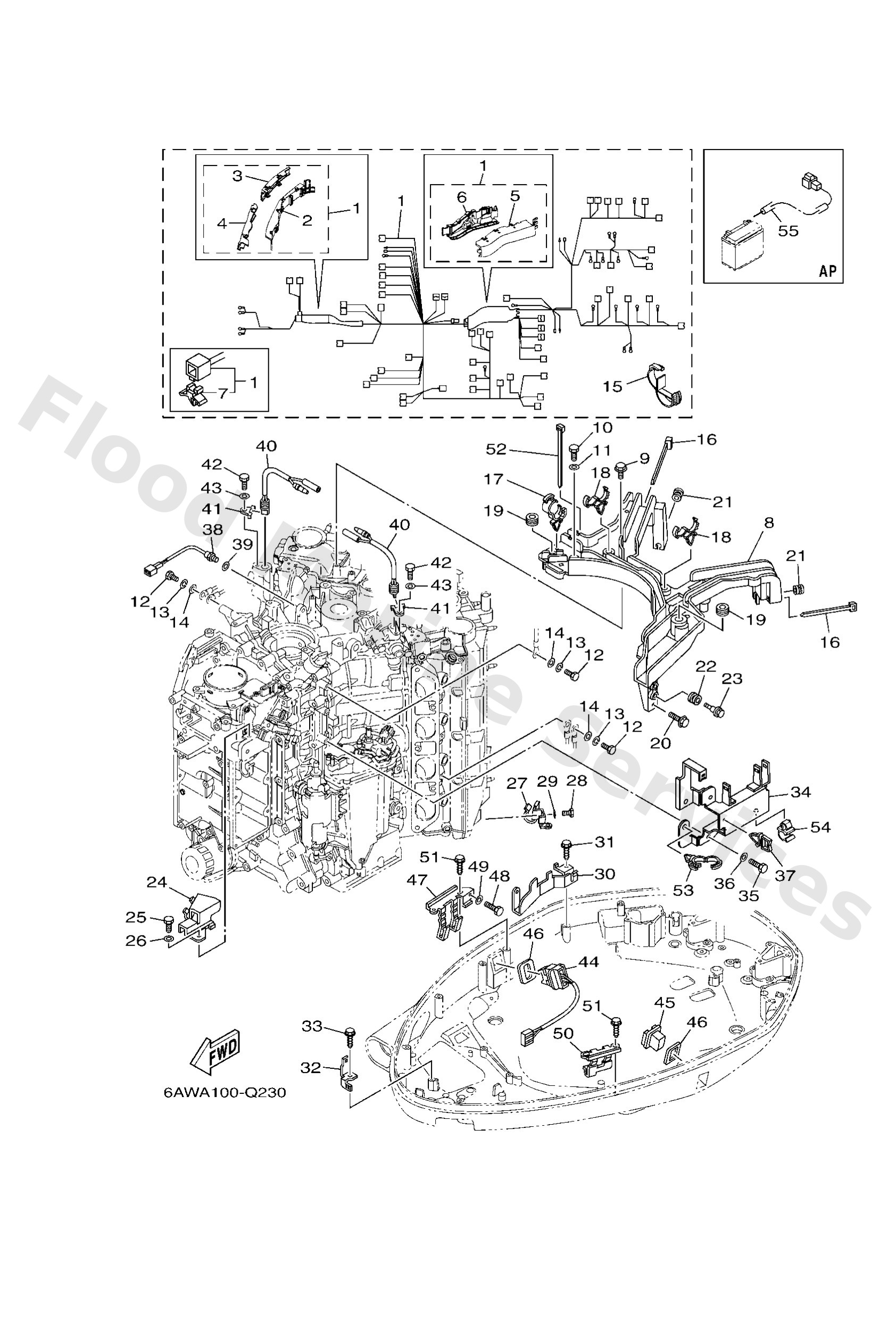

Diagram: ELECTRICAL 5

Diagram

Parts List

Reference
Description
Price


1
6AW8259031
Wire harness assembly
Loading…

↗
2
6AW8A7A100
Protector 1
Loading…

↗
3
6AW8A7A200
Protector 2
Loading…

↗
4
6AW8A7A300
Protector 3
Loading…

↗
5
6AW8A7A400
Protector 4
Loading…

↗
6
6AW8A7A500
Protector 5
Loading…

↗
7
9046409M47
Clamp(65j)
Loading…

↗
8
6AW8258901
Protecter, wire harness
Loading…

↗
9
9759506535
Bolt(j52)
Loading…

↗
10
9709506025
Bolt
Loading…

↗
11
9299506600
Washer, plain (646)
Loading…

↗
12
9709506016
Bolt, hexagon deep recess
Loading…

↗
13
9299506100
Washer(6a1)
Loading…

↗
15
9046425005
Clamp
Loading…

↗
16
9046513M18
Clamp
Loading…

↗
17
9046420181
Clamp(4ap)
Loading…

↗
18
9046418246
Clamp(4tr)
Loading…

↗
19
9048019368
Grommet(75v)
Loading…

↗
20
9759506512
Bolt, hexagon w/w deep recess
Loading…

↗
21
9048012314
Grommet(3aa)
Loading…

↗
23
9010906MA1
Bolt
Loading…

↗
24
6AW8238800
Plate
Loading…

↗
25
9709506014
Bolt(gj3)
Loading…

↗
27
6AW8167700
Clamp 1
Loading…

↗
30
6AW8257G00
Clamp, cord
Loading…

↗
31
9010906M86
Bolt
Loading…

↗
32
6AW4274300
Bracket
Loading…

↗
34
6AW8184510
Plate
Loading…

↗
37
9046411121
Clamp(4gy)
Loading…

↗
38
61A8579000
Thermosensor assembly
Loading…

↗
39
9299010600
Washer, plate
Loading…

↗
40
6AW8256000
Thermo switch assembly
Loading…

↗
41
6E98258800
Plate
Loading…

↗
44
6AW8256301
Trim & tilt switch assembly
Loading…

↗
45
69J4272301
Cover, bottom
Loading…

↗
46
69J8258700
Gasket
Loading…

↗
47
6AX8361400
Bracket
Loading…

↗
50
63P8361401
Bracket
Loading…

↗
52
9046514M66
Clamp
Loading…

↗
54
9046408051
Clamp (26h)
Loading…

↗
55
69J8194902 AP
Wire, lead (isolator, 3.8m )
