FT25FET (2017)
ELECTRICAL 5

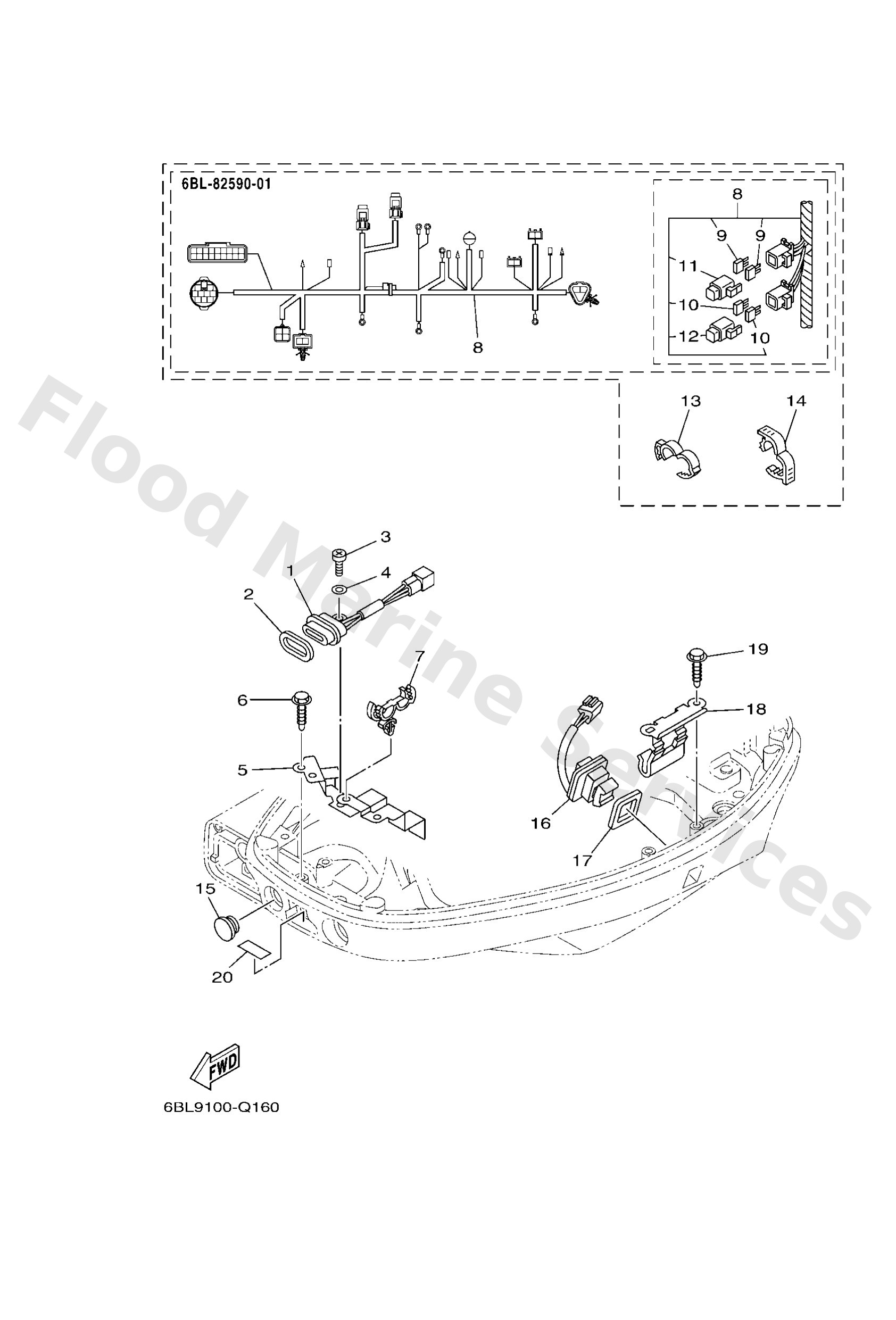

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
62Y8430100
Pilot light assembly 1
Loading…
↗
2
6H48358900
Gasket
Loading…
↗
3
9788506012
Screw, pan head(62j)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
6BL8238800
Plate
Loading…
↗
6
9010906M86
Bolt
Loading…
↗
7
9046418246
Clamp(4tr)
Loading…
↗
8
6BL8259001
Wire harness assembly
Loading…
↗
9
67F8215100
Fuse
Loading…
↗
10
67F8215110
Fuse
Loading…
↗
11
67F8215B10
Cap (yellow)
Loading…
↗
12
67F8215B20
Cap (green)
Loading…
↗
13
9046416001
Clamp
Loading…
↗
14
9046418004
Clamp
Loading…
↗
15
6G14272500
Grommet
Loading…
↗
16
69J8256301
Trim & tilt switch assembly
Loading…
↗
17
69J8258700
Gasket
Loading…
↗
18
63P8361401
Bracket
Loading…
↗
20
67C8541500
Mark, signal lamp
Loading…
↗
