LF115B (2022)
ELECTRICAL 5

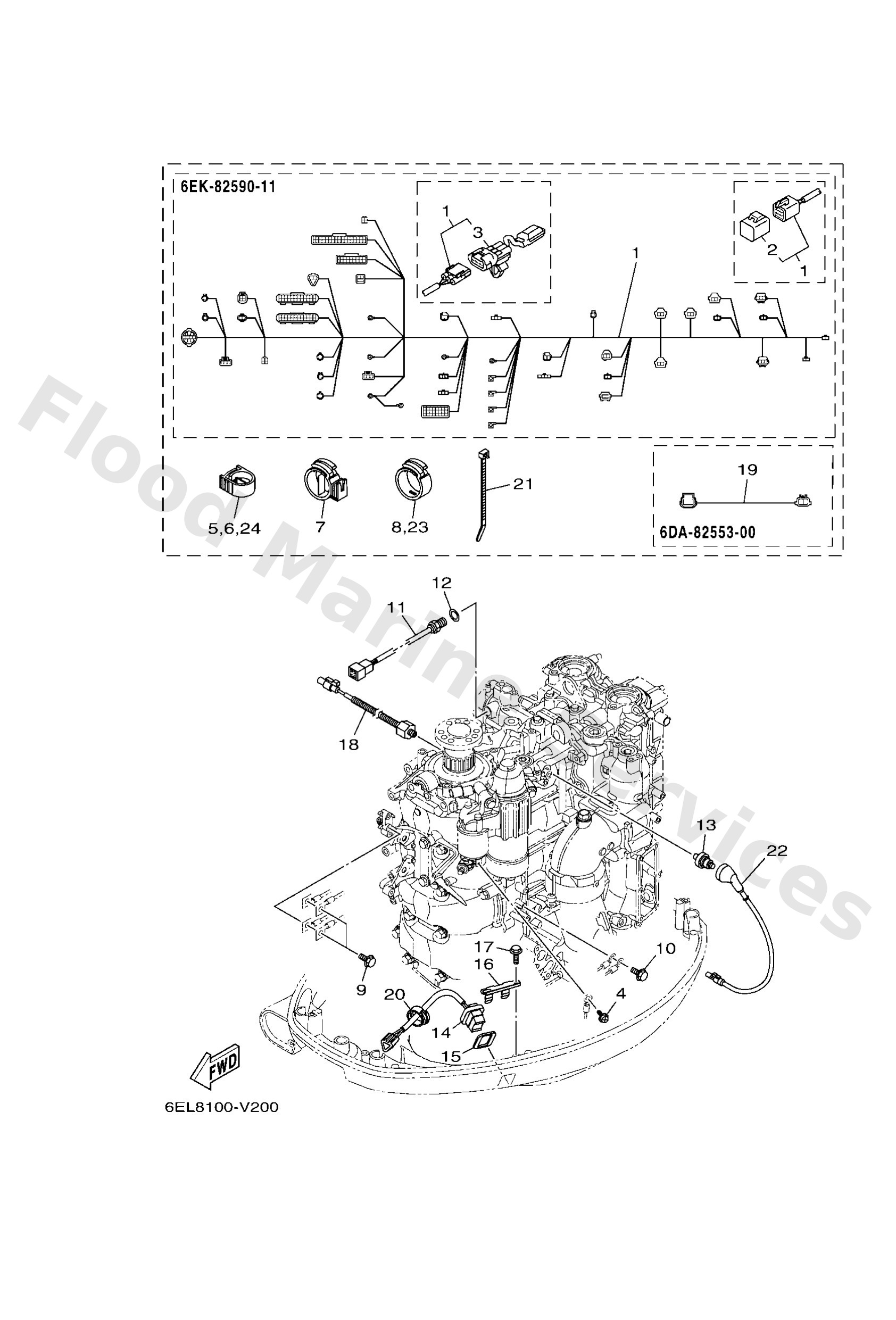

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
6EK8259011
Wire harness assembly
Loading…
↗
2
6Y88258211
White cap 1 (4pin)
Loading…
↗
3
6EK8198001
Diode assembly
Loading…
↗
4
9798504308
Screw, with washer
Loading…
↗
5
9046418004
Clamp
Loading…
↗
7
9046422005
Clamp
Loading…
↗
8
9046416001
Clamp
Loading…
↗
9
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
11
6CJ8579000
Thermosensor assembly
Loading…
↗
12
9043014115
Gasket (663)
Loading…
↗
13
68V8250400
Oil pressure switch assembly
Loading…
↗
14
69J8256301
Trim & tilt switch assembly
Loading…
↗
15
69J8258701
Gasket
Loading…
↗
16
69J8361400
Bracket
Loading…
↗
17
9010906M86
Bolt
Loading…
↗
18
6CJ8578001
Sensor, knock
Loading…
↗
19
6DA8255300
Extension, wire lead
Loading…
↗
21
9046513M18
Clamp
Loading…
↗
22
6EK8255311
Extension, wire lead
Loading…
↗
